INVT Goodrive300-21 Series User Manual

Goodrive300-21 integrated machine for air compressor Commissioning guidelines
-20-
Step 5 In system configuration interface, click “Debug mode” and the interface is shown as follows:

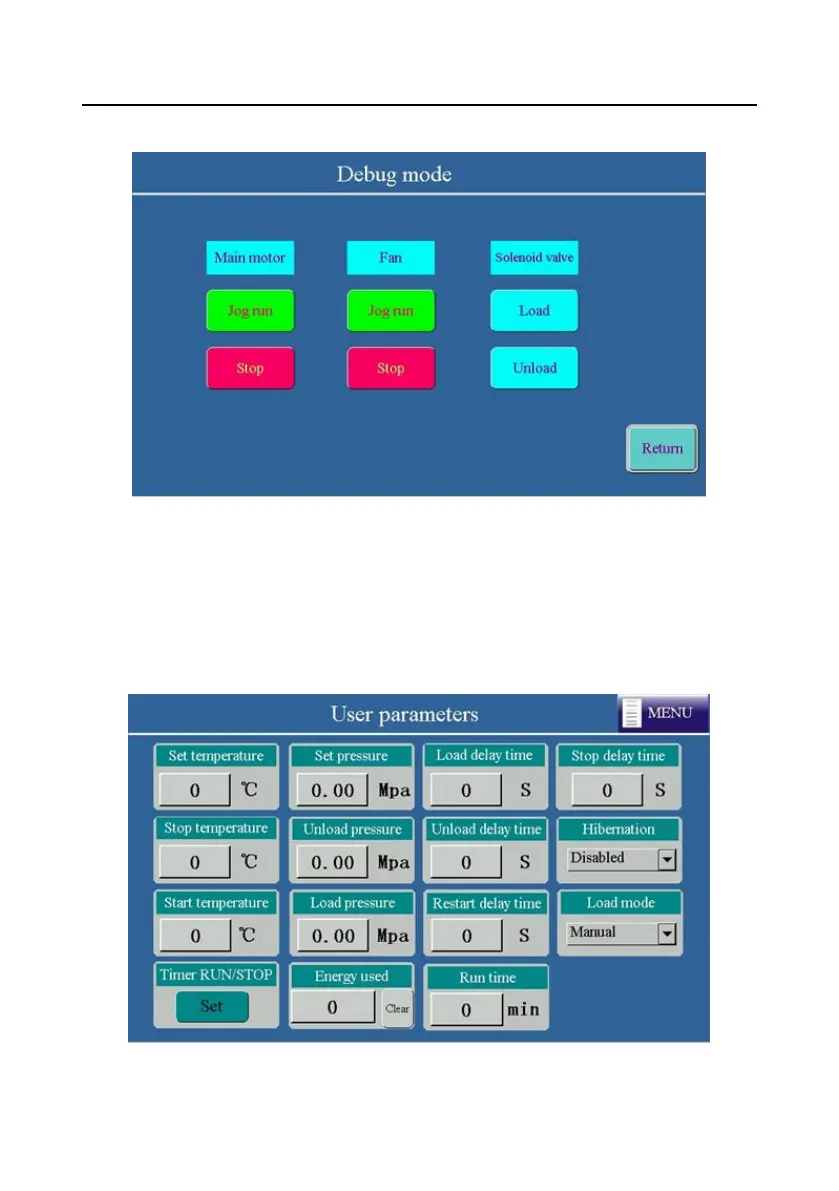

Figure 4-14 Debugging mode interface
Click "Jog run" for motor and fan to determine motor rotation direction; click "Load" or "Unload" to test
the action of solenoid valve. Click "Return" to enter system configuration, then, click “MENU” to return
menu interface.
Note: If the motor runs reversely, please adjust the motor wiring sequence.
6. Tap “User parameters” in touch screen menu and the interface is shown as follows:
Figure 4-15 User parameter interface
