Goodrive300-21 integrated machine for air compressor Commissioning guidelines
-21-

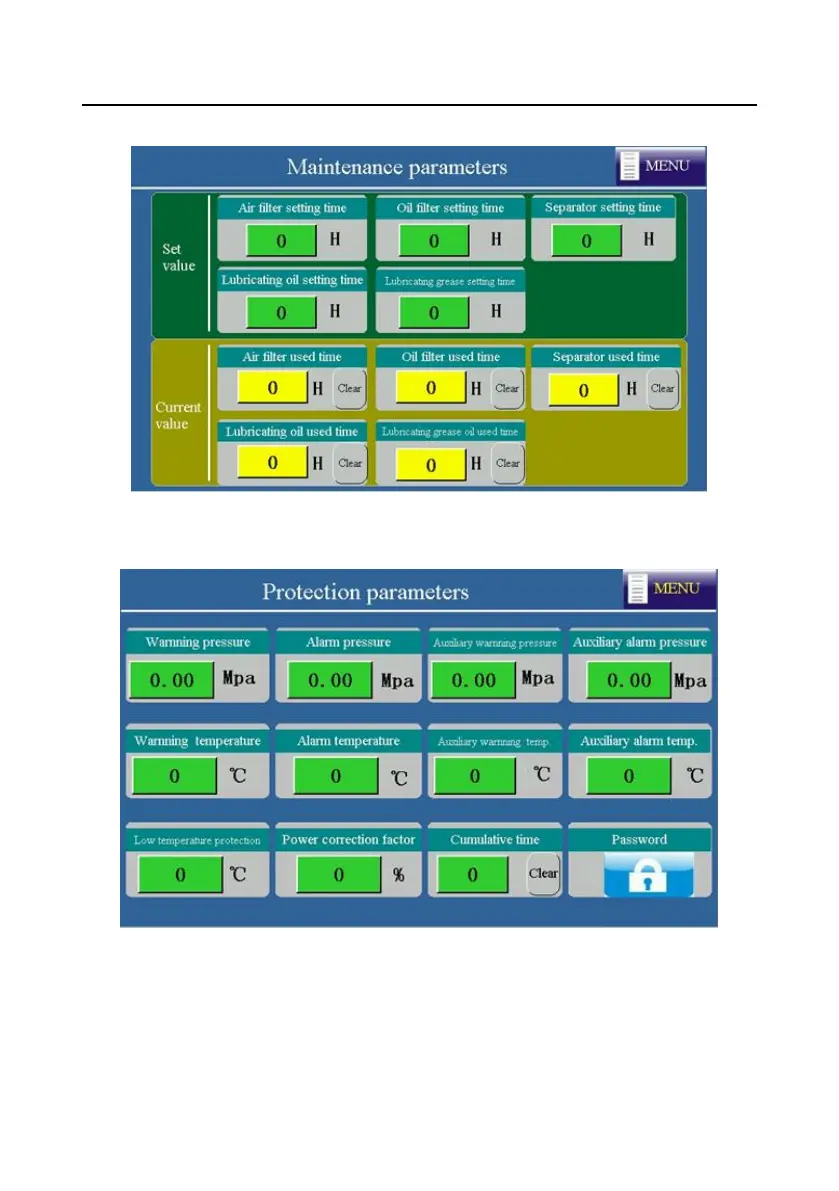

7. Click "Maintenance parameters" in touch screen menu and the interface is shown as follows:
Figure 4-16 Maintenance parameter interface
8. Click "Protection parameters" in the menu and the interface is shown as follows:
Figure 4-17 Protection parameter interface
