INVT IPE300 Series User Manual

IPE300 series engineering VFD Extension card
-323-
Signal
Port
Description
EX+
Encoder excitation signal
1. Factory setting of excitation: 10kHz
2. Supporting resolvers with an excitation voltage of
7Vrms
EX-
A2+
Pulse setting
1. Differential input of 5V
2. Response frequency: 200 kHz
A2-
B2+
B2-
Z2+
Z2-
AO+
Frequency-divided output
1. Differential output of 5V
2. Frequency-divided output of resolver simulated
A1, B1, and Z1, which is equal to an incremental
PG card of 1024 pps.
3. Supporting frequency division of 2N, which can be
set through P20.16 or P24.16
4. Max. output frequency: 200kHz
AO-
BO+
BO-
ZO+
ZO-

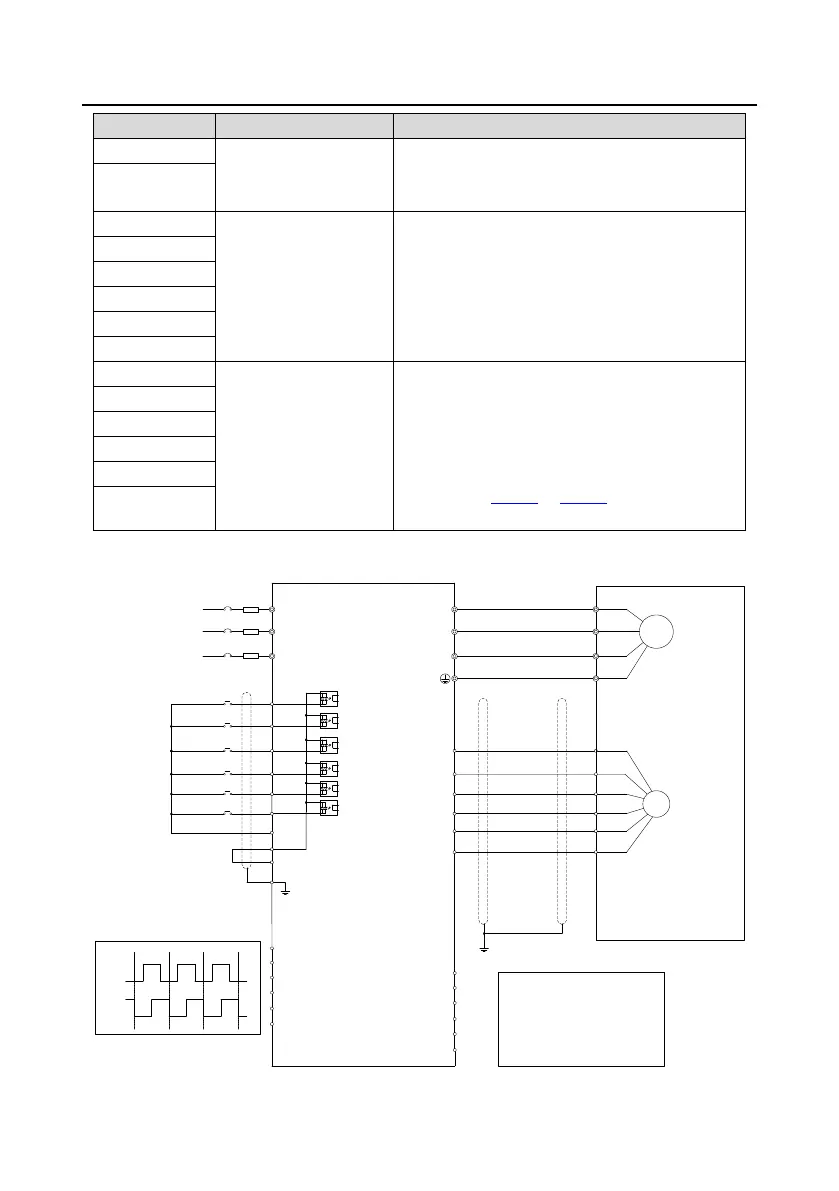

The following figure shows the external wiring when EC-PG504-00 is used.
+24V
PE
COM
S4
S3
S2
S1
HDIB
PW
HDIA
SI-
CO+
CO-
EX+
EX-
R
S
T
U
V
W
U
V
W
M3~
PG
AO+
AO-
BO+
BO-
ZO+
ZO-
pulse A
pulse B
A2+
A2-
B2+
B2-
FWD jog
FWD run
CNC
PLC
Upper computer
SI+
Fault reset
Z2+
Z2-
