IPE300 series engineering VFD Product overview
-12-
Description
Specifications
EMC filter
All series of 380V meet the IEC61800-3 C3 requirements.
Optional external filters can be used to meet the
IEC61800-3 C2 requirements.

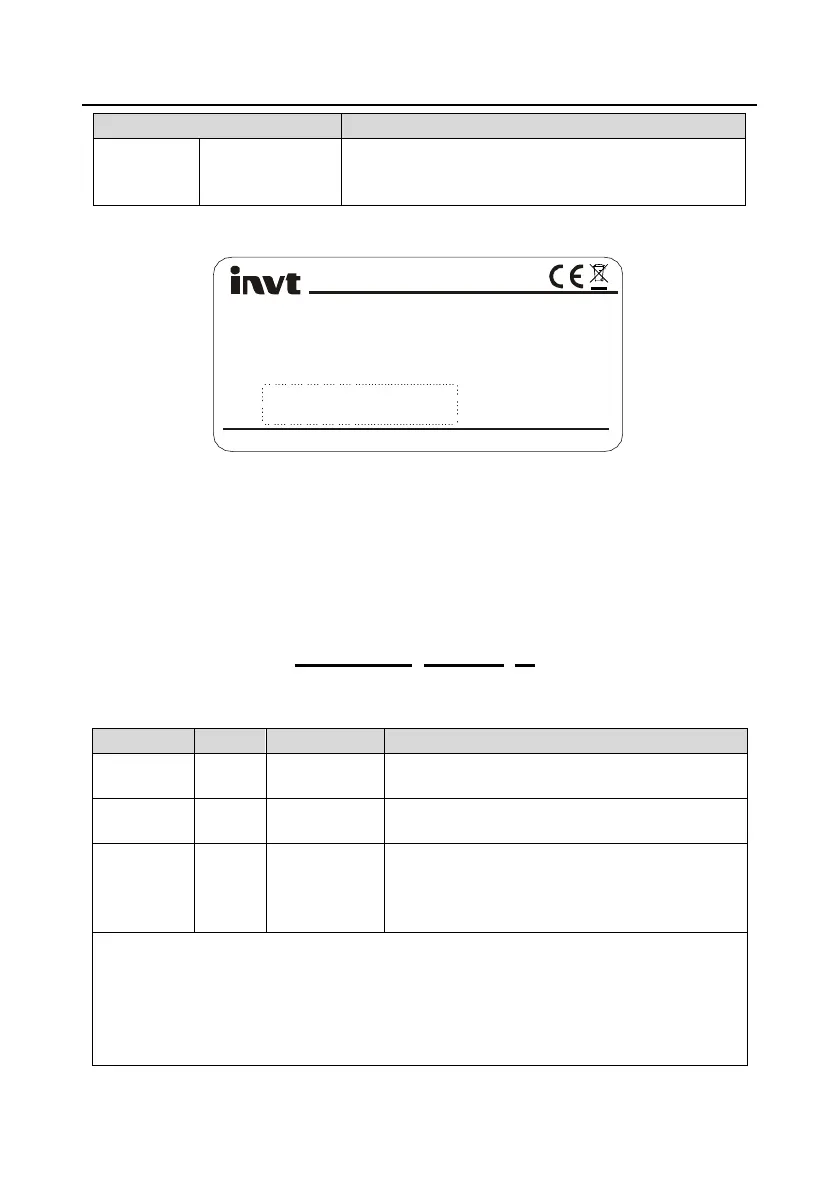

3.4 Product nameplate
Model:IPE300-0004-4
Power(Output):4kW/5.5kW
Input:AC 3PH 380V(-15%)-440V(+10%) 13.5A/19.5A 47Hz-63Hz
Output:AC 3PH 0V-Uinput 9.5A/12.5A 0Hz-400Hz
S/N:
Made in China
Shenzhen INVT Electric Co.,Ltd
IP20
Figure 3-6 Product nameplate
Note: The preceding are standard product nameplate examples. The marking such as "CE" or "IP20"
on the nameplate is marked according to actual certification conditions.
3.5 Model designation code
A model designation code contains product information. You can find the model designation code on
the VFD nameplate and simplified nameplate.
IPE300-0004-4
①
②
③
Figure 3-7 Model description
Field
Sign
Description
Contents
Product series
abbreviation
①
Product series
abbreviation
IPE300: IPE300 series engineering VFD
Rated power
②
Power range
0004: 4kW (4kW G-type machine, with functions of
5.5kW P-type machine)
Voltage class
③
Voltage class
4: AC 3PH 380V (-15%)–440V (+10%)
Rated voltage: 380V
6: AC 3PH 520V (-15%)–690V (+10%)
Rated voltage: 660V
Note:
The braking unit has been built in the 380V 0037 and lower VFD models as a standard
configuration.
The braking unit is not a standard configuration for the 0045–0110 VFD models (but you can
choose to purchase the built-in braking unit, and then the VFD model has a suffix "B", for example,
IPE300-0045-4-B).
