INVT IPE300 Series User Manual

IPE300 series engineering VFD Optional peripheral accessories
-361-
J10
Note: Do not connect C3 filters in IT power systems.
Interference filters on the input side can reduce the VFD interference on the surrounding devices.
Noise filters on the output side can decrease the radio noise caused by the cables between VFDs and
motors and the leakage current of conducting wires.
INVT provides some of the filters for you to choose.

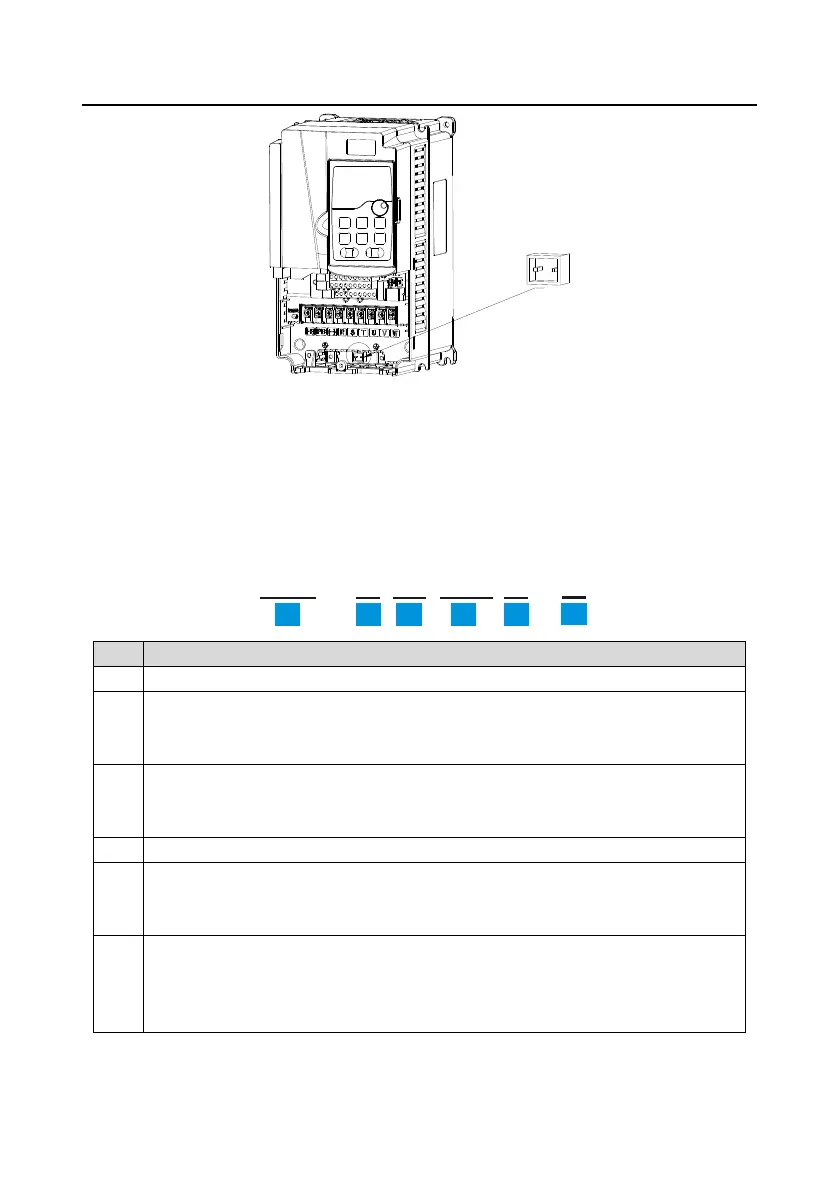

D.7.1 Filter model description
04
-
CA D E
FLT
L
B
P
045
F
B
-
Field
Description
A
FLT: VFD filter series
B
Filter type
P: Power input filter
L: Output filter
C
Voltage class
04: AC 3PH 380V (-15%)–440V (+10%)
06: AC 3PH 520V (-15%)–690V (+10%)
D
3-digit code indicating the rated current. For example, 015 indicates 15 A.
E
Filter performance
L: General
H: High-performance
F
Filter application environment
A: Environment Category I (IEC61800-3), C1 (EN 61800-3)
B: Environment Category I (IEC61800-3), C2 (EN 61800-3)
C: Environment Category II (IEC61800-3), C3 (EN 61800-3)
