INVT IPE300 Series User Manual

IPE300 series engineering VFD Extension card
-329-
The EC-PG507-24 extension card can be used in combination with multiple types of incremental
encoders through different modes of wiring. It is user-friendly, adopting spring terminals.
EC-PG507-24 terminal function description:
Signal
Port
Description
PE
Grounding terminal
It is connected to the ground for enhancing the
anti-interference performance.
PWR
Encoder power
Voltage: 24V ± 5%
Max. output current: 150mA
(PGND is isolation power ground)
PGND
A1+
Encoder interface
1. Applicable to 24V push-pull encoders
2. Applicable to 24V OC encoders
3. Applicable to 24V differential encoders
4. Response frequency: 200 kHz
5. Support the encoder cable length of up to 100m
A1-
B1+
B1-
Z1+
Z1-

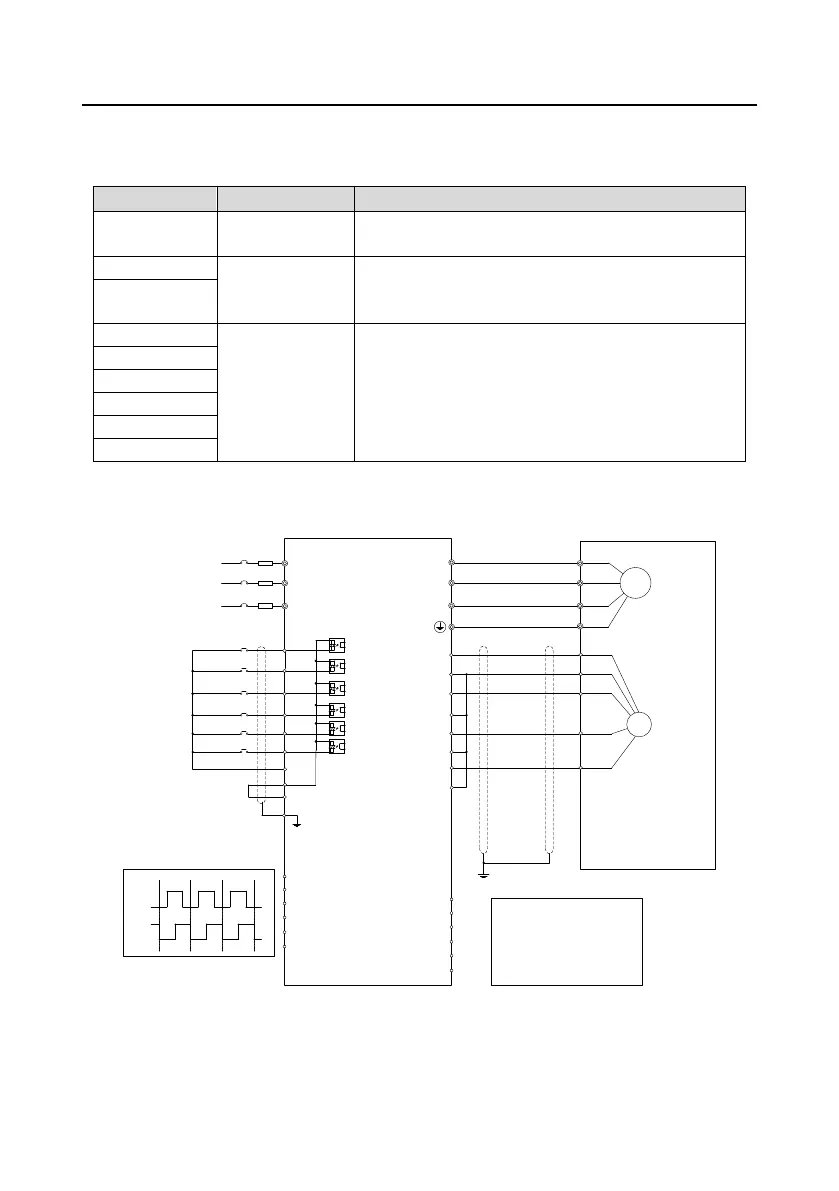

The following figure shows the external wiring when the extension card is used in combination with an
open collector encoder. A pull-up resistor is configured inside the PG card.
+24V
PE
COM
S4
S3
S2
S1
HDIB
PW
HDIA
A1-
B1+
B1-
Z1+
Z1-
R
S
T
U
V
W
U
V
W
M3~
PG
AO+
AO-
BO+
BO-
ZO+
ZO-
pulse A
pulse B
A2+
A2-
B2+
B2-
REV running
FWD running
CNC
PLC
Upper computer
A1+
Fault reset
Z2+
Z2-
PGND
PWR
Z
B
A
