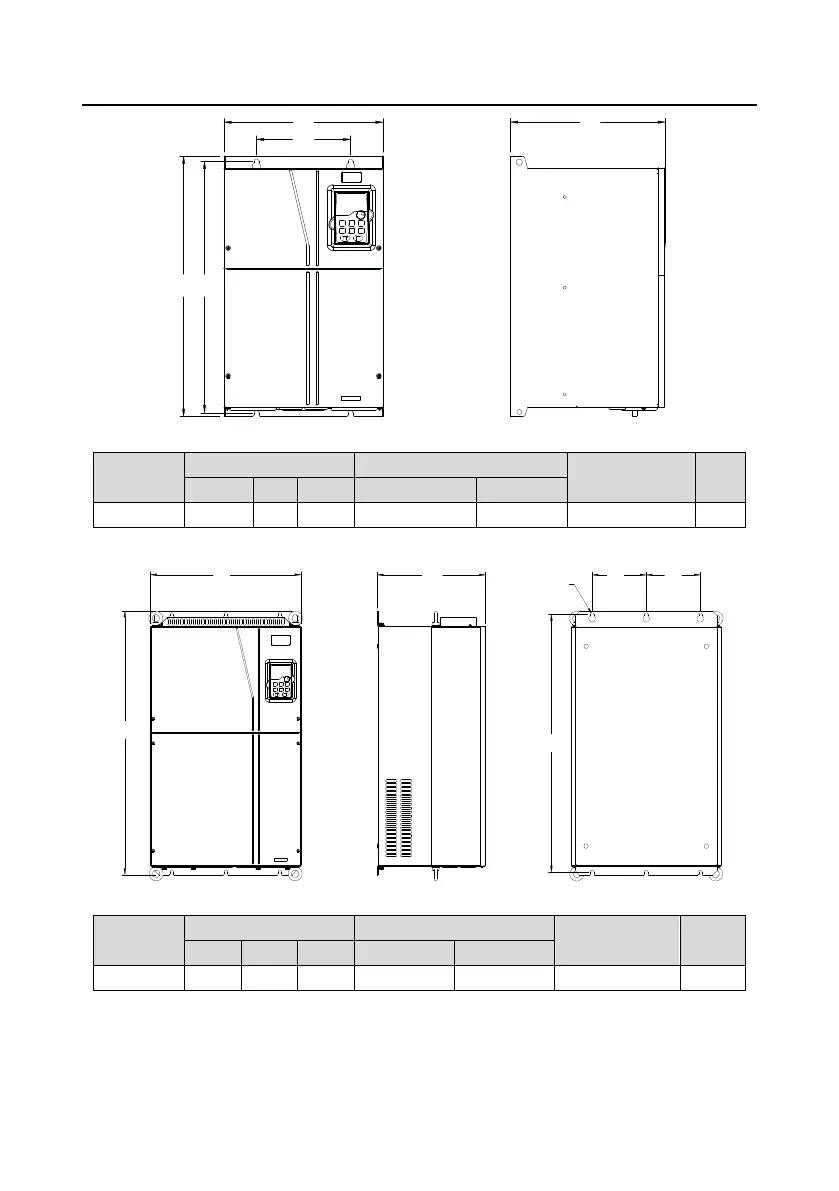

IPE300 series engineering VFD Dimension drawings
-341-
W1
D1
W2
H1 H2
Figure C-7 Wall-mounting drawing for the 380V 0090–0110 models
VFD model
Outer dimension (mm)
Installation dimension (mm)
Hole diameter
(mm)
Fixing
screw
W1
H1
D1
W2
H2
0090–0110
338
554
330
200
535
10
M8
W1
H1
D1
W2 W2
6- ø11.0
H2
Figure C-8 Wall-mounting drawing for the 380V 0132–0200 models
VFD model
Outer dimension (mm)
Installation dimension (mm)
Hole diameter
(mm)
Fixing
screw
W1
H1
D1
W2
H2
01322–0200
500
870
360
180
850
11
M10
