INVT IPE300 Series - Page 354

IPE300 series engineering VFD Dimension drawings
-343-
W1
H1
D1
W2
H2
98.0
D2
W2
W3W4
H4
H2
H3

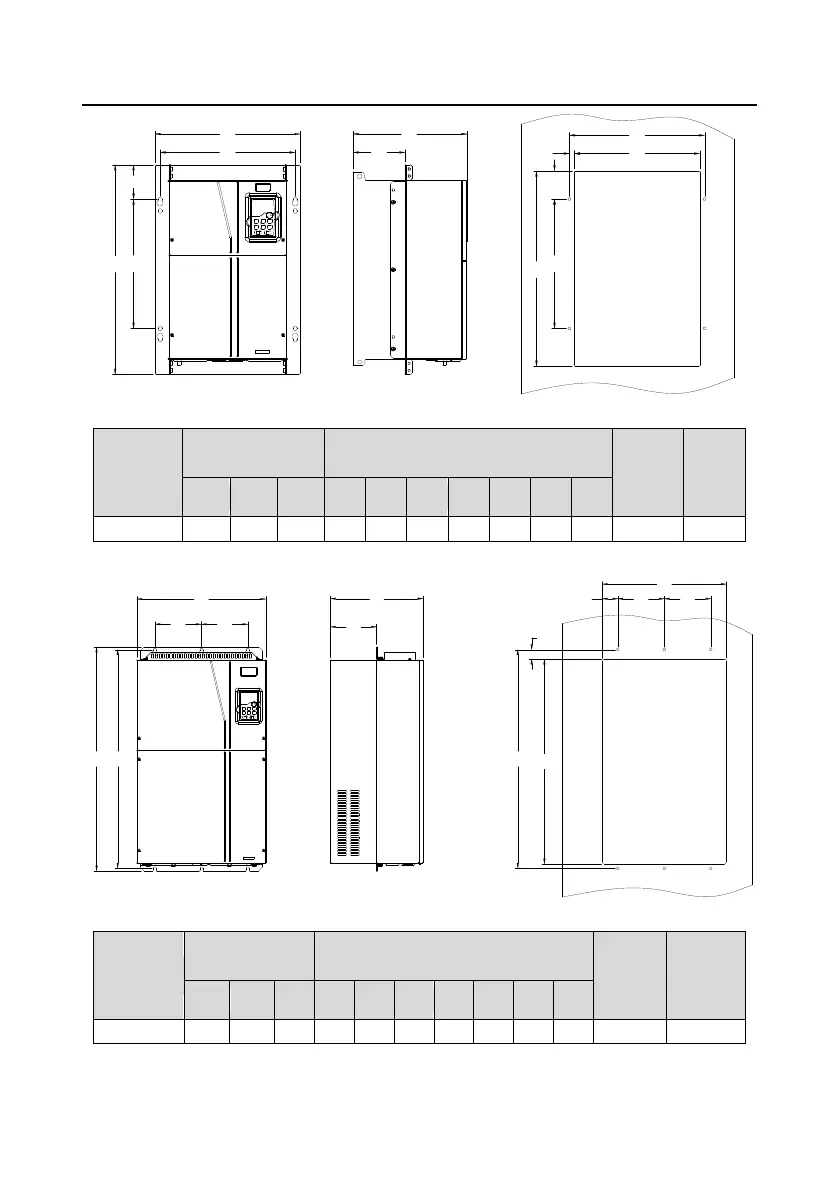

Figure C-11 Flange installation diagram for 380V 0090–0110 models
VFD model
Outer dimension
(mm)
Installation dimension (mm)
Hole
diameter
(mm)
Fixing
screw
W1
H1
D1
W2
H2
D2
W3
H3
W4
H4
0090–0110
418.5
600
330
389.5
370
149.5
361
559
14.2
108.5
10
M8
W1
D1
W2 W2
D2
H2H1
W4
W3
W2
W2
H4
H2
H3
Figure C-12 Flange installation diagram for 380V 0132–0200 models
VFD model
Outer dimension
(mm)
Installation dimension (mm)
Hole
diameter
(mm)
Fixing
screw
W1
H1
D1
W2
H2
D2
W3
H3
W4
H4
0132–0200
500
870
360
180
850
178.5
480
796
60
37
11
M10
