IPE300 series engineering VFD Dimension drawings
-348-
W1
W2
W2
H1
H2
3- ø22.0
D1
D2
D2
W3
6- ø12.0

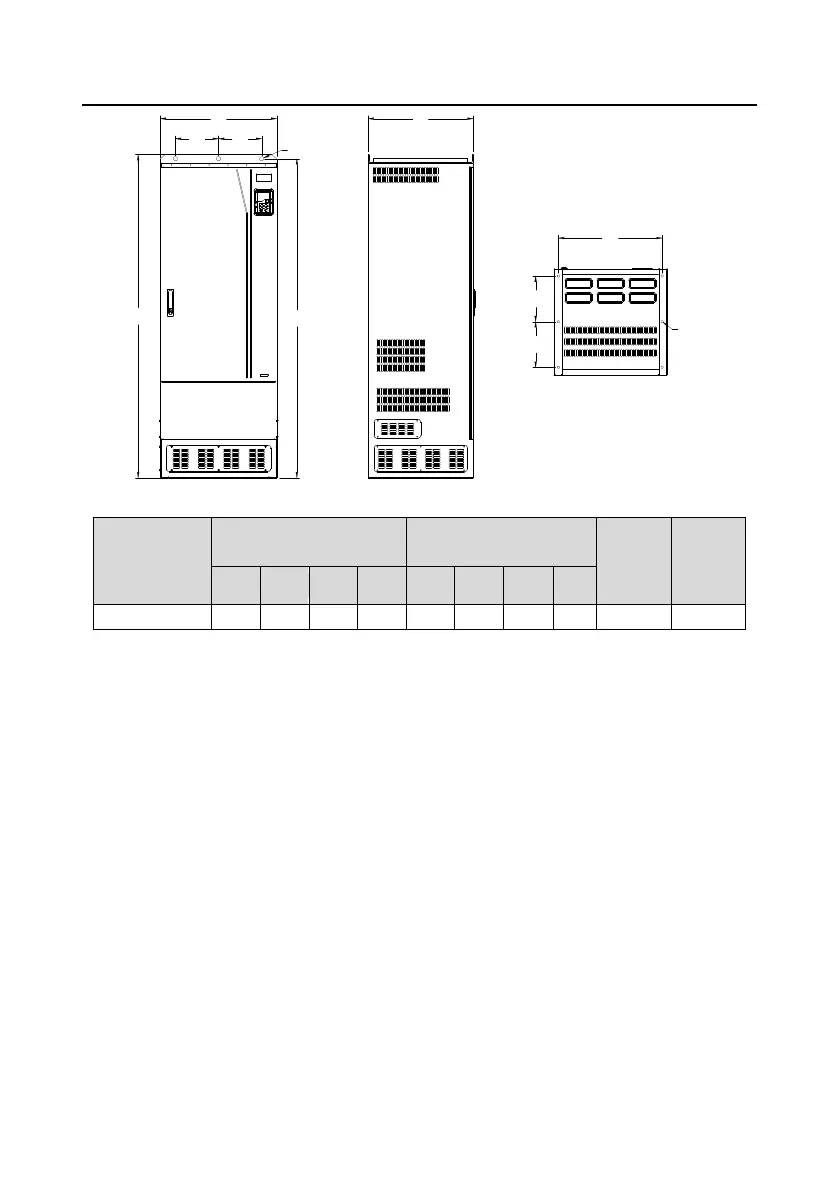

Figure C-21 Floor installation diagram for 660V 400–630kW models
VFD model
Outer dimension (mm)
Installation dimension
(mm)
Hole
diameter
(mm)
Fixing
screw
W1
H1
D1
W4
W2
W3
H2
D2
400kW–630kW
620
1700
560
-
230
572
1678
240
22/12
M20/M10
