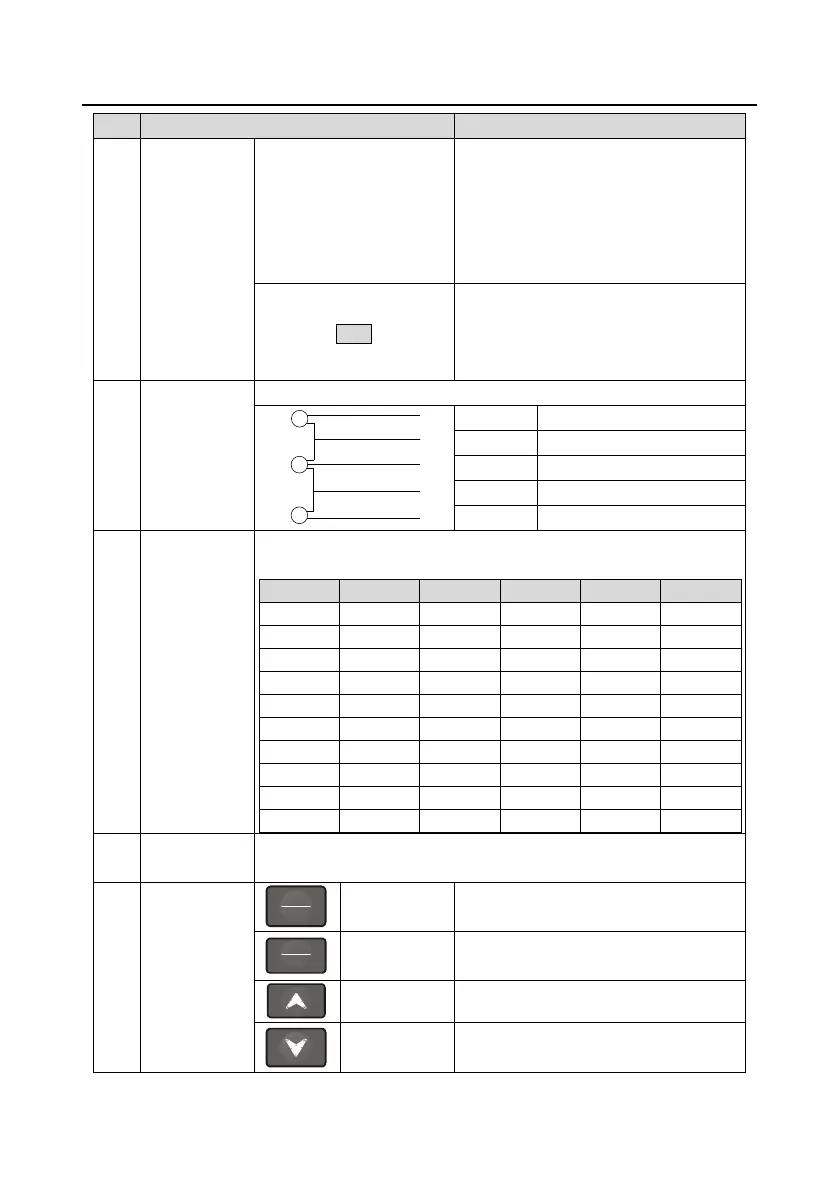

IPE300 series engineering VFD Basic operation guidelines
-35-
No.
Name
Description
Off: The VFD is controlled through the
keypad.
Blinking: The VFD is controlled through
terminals.
On: The VFD is controlled through remote
communication.
TRIP
Fault indicator
LED on: in fault state
LED off: in normal state
LED blinking: in pre-alarm state
2
Unit indicator
Unit displayed currently
Hz
Frequency unit
RPM
Rotation speed unit
A
Current unit
%
Percentage
V
Voltage unit
3
Digital display
zone
Five-digit LED displays various monitoring data and alarm codes such as
the frequency setting and output frequency.
Display
Means
Display
Means
Display
Means
0
0
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
A
A
B
B
C
C
d
d
E
E
F
F
H
H
I
I
L
L
N
N
n
n
o
o
P
P
r
r
S
S
t
t
U
U
v
v
.
.
-
-
4
Digital
potentiometer
Reserved
5
Keys
PRG
ESC
Programming
key
Press it to enter or exit level-1 menus or
delete a parameter.
DATA
ENT
Confirmation
key
Press it to enter menus in cascading mode
or confirm the setting of a parameter.
UP key
Press it to increase data or move upward.
Down key
Press it to decrease data or move
downward.
