iPECS UCM - Page 74

iPECS UCM
Installation Manual Issue 1.1
67
- 26 58 -
- 27 59 -
- 28 60 -
- 29 61 -
- 30 62 -
-
31
63
-
- 32 64 -

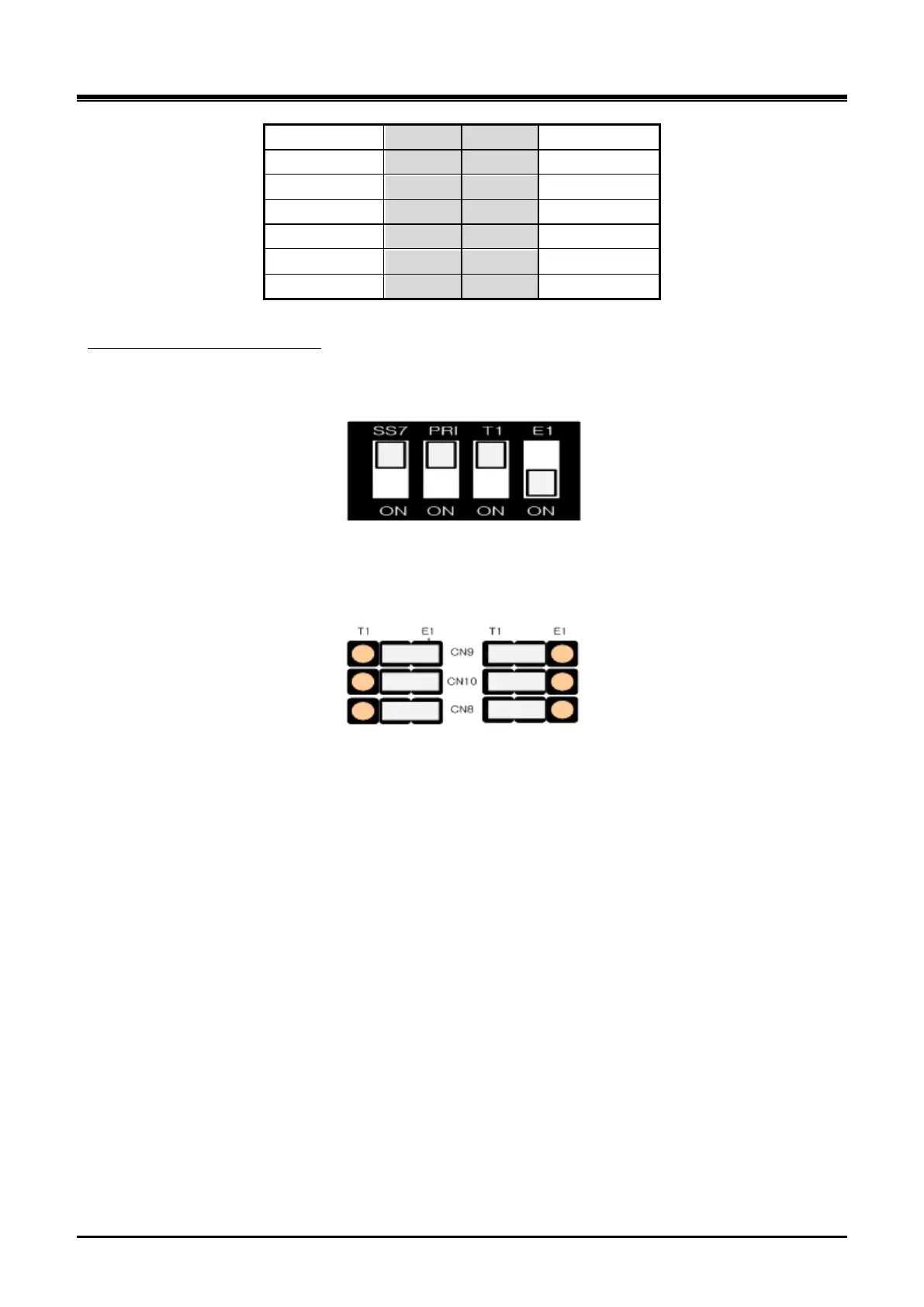

The UCM-MDTM2 Gateway Module provides E1 / T1 / PRI / SS7 selection switches to select protocols
depending on service type. Figure 3-33 shows the case where just the E1 line is used.
Protocol S/W and Shunt Setting
Figure 3-33 Protocol Selection Switch
The UCM-MDTM2 Gateway Module provides header pins to set lines to switch impedance based on E1 / T1
line interface. Figure 3-34 below shows shunt change depending on E1 / T1 usage.
Figure 3-34 E1 / T1 Line Switch
