2) Connect the LAN cable to the LAN connector (RJ45) LAN1, LAN2 on the rear panel of the UCM-
MGC3 and check the LED status, refer to Figure 3-43.

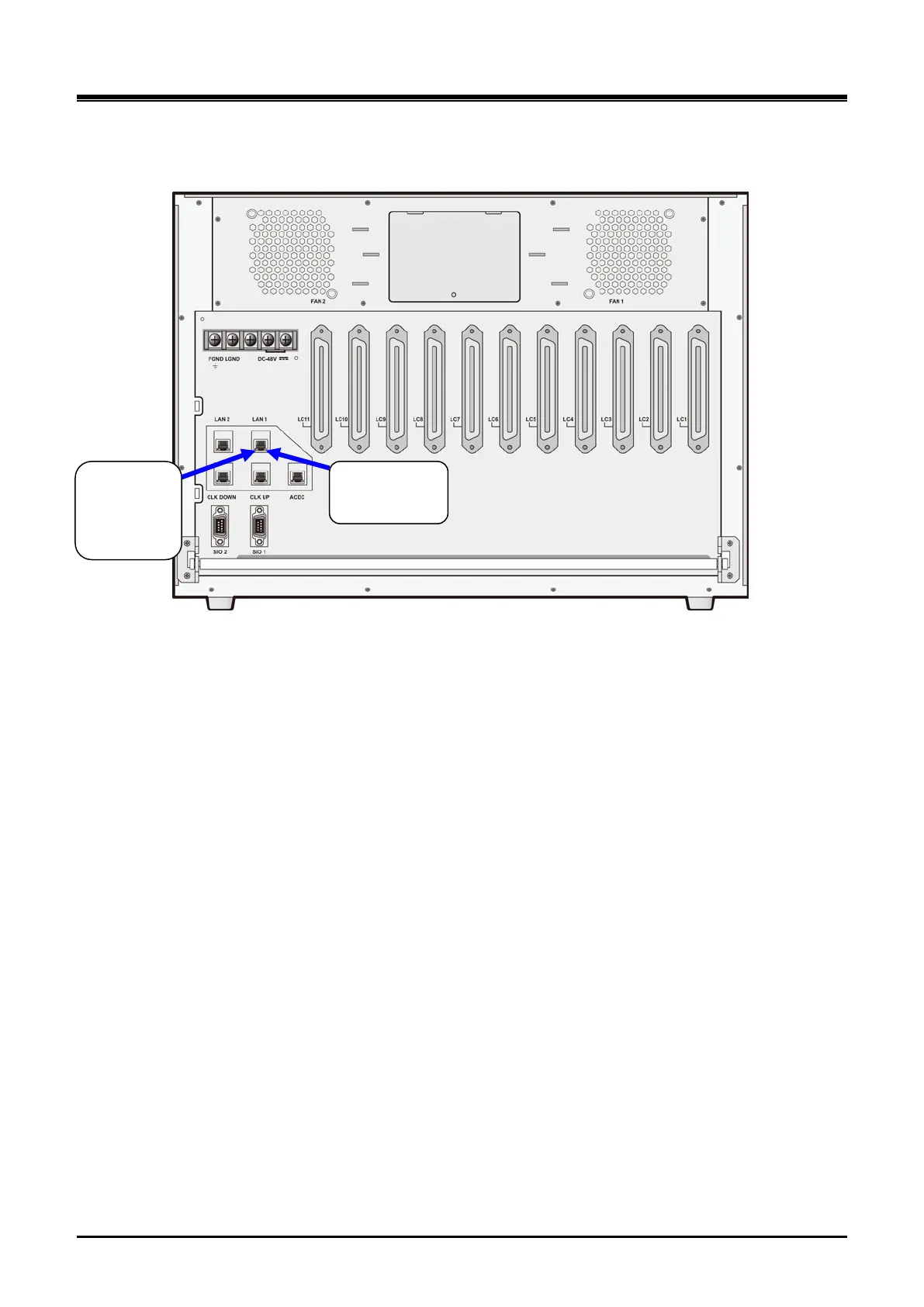

Figure 3-43 Checking LED status on UCM-MGC3 Rear Panel
Green LED
turns on when
the LAN is
LAN speed
LED
(Orange)
turns on in
case of 100
