IPETRONIK IPEmotion PlugIn IPETRONIK-X User Manual

System
IPETRONIK PlugIn X V02.14.00
IPETRONIK GmbH & Co. KG
9/ 87

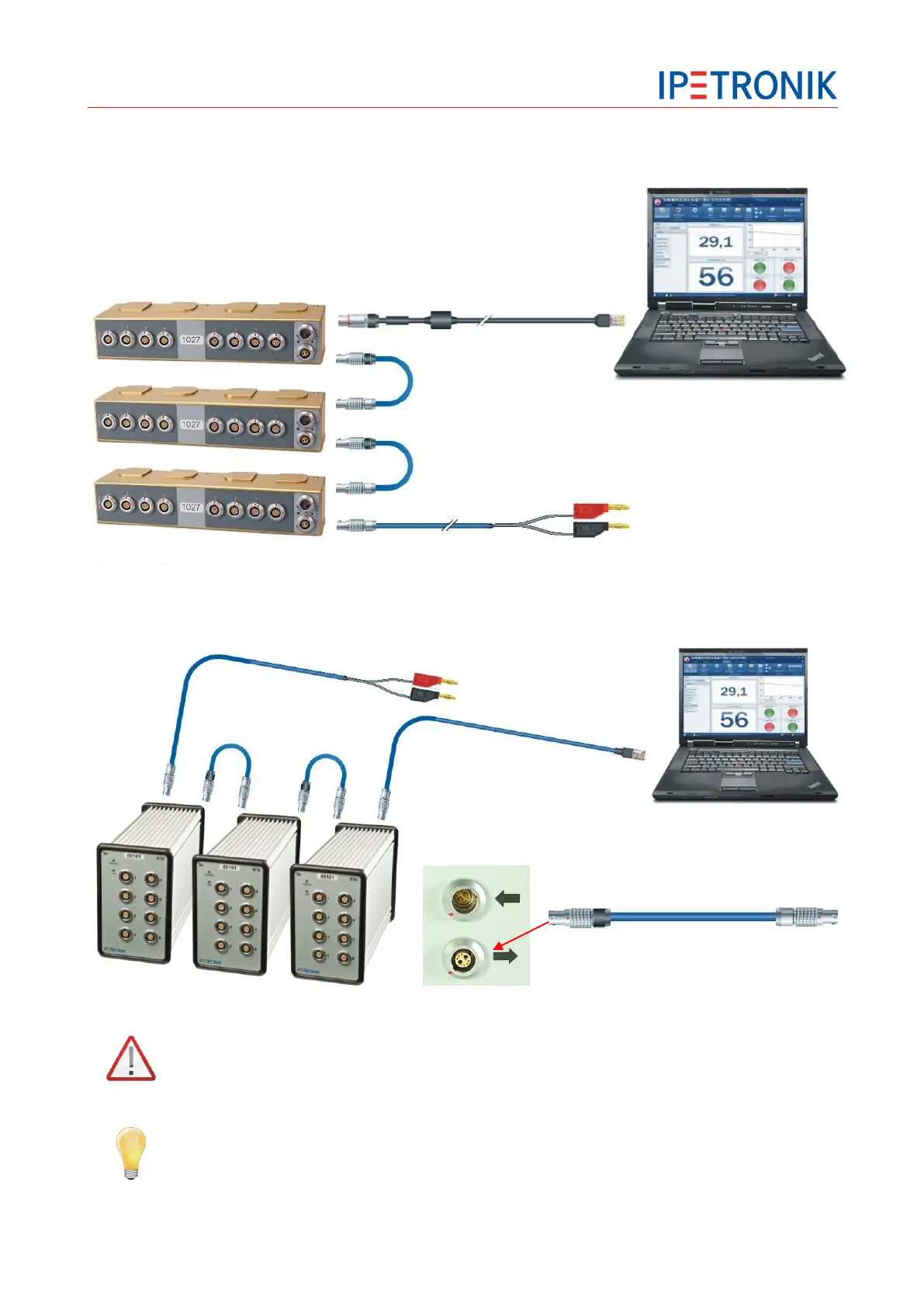

2.3 System overview
2.3.1 Mx-System (ETH)
2.3.2 Sx-System (ETH)
First daisy-chain all modules using the respective cables, then switch on the power supply!
You can mix Mx- and Sx-Modules within a system.
Connection cable 630-500.003 (length 30 cm) can be also used for mixed Mx/Sx systems.
Synchronization PlugIn IPETRONIK X with Mx-SENS / Sx-STG 25 - 50 µs
(Depends on the accuracy of the HF input filter)
630-500.001 X-Link Cable System
630-522.xxx X-Link Cable RJ45
630-501.xxx X-Link Cable PWR Banana-2
630-522.xxx
X-Link Cable RJ45
630-501.xxx
X-Link Cable PWR Banana-2
630-500.002
X-Link Cable System
Note on cable 630-500.xxx
