IPETRONIK IPEmotion PlugIn IPETRONIK-X User Manual

CAN modules
IPETRONIK PlugIn X V02.14.00
IPETRONIK GmbH & Co. KG
36/ 87

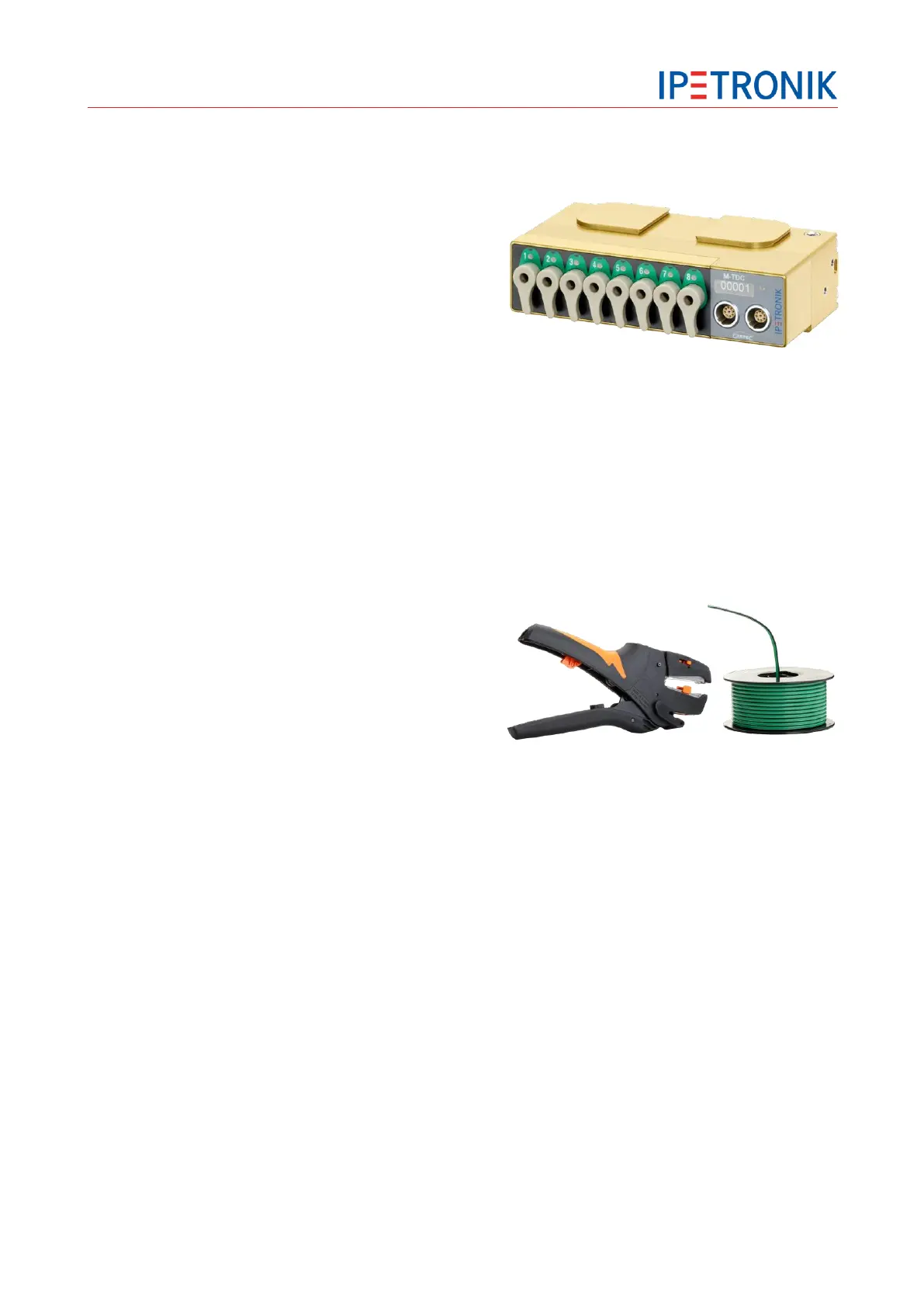

4.4 M-TDC
8-Channel Thermocouple Measurement
 8 Thermocouple measurement inputs
type K (NiCr/NiAl)
 Cold junction compensation per channel (RTD)
 Separate 24 bit ADC for each channel
 Complete galvanic isolation (inputs, CAN, power
supply, enclosure)
 Designed for engine compartment applications
 Direct connection of thermocouple cables
(no plugs required)
 Toolless module to module connection
4.4.1 Input cables
Standard (open)
Thermocouple cable
 Type K accuracy class 1 - DIN IEC 584 (1.5°C)
 Teflon based shell material
 Shell material operating temperature range
-190 …. 260 °C (-310 … 500 °F)
 Cable core: 7 line wires à Ø 0.2 mm
 Cable cross section Ø 0.22m²
 Accessory: Pincer
