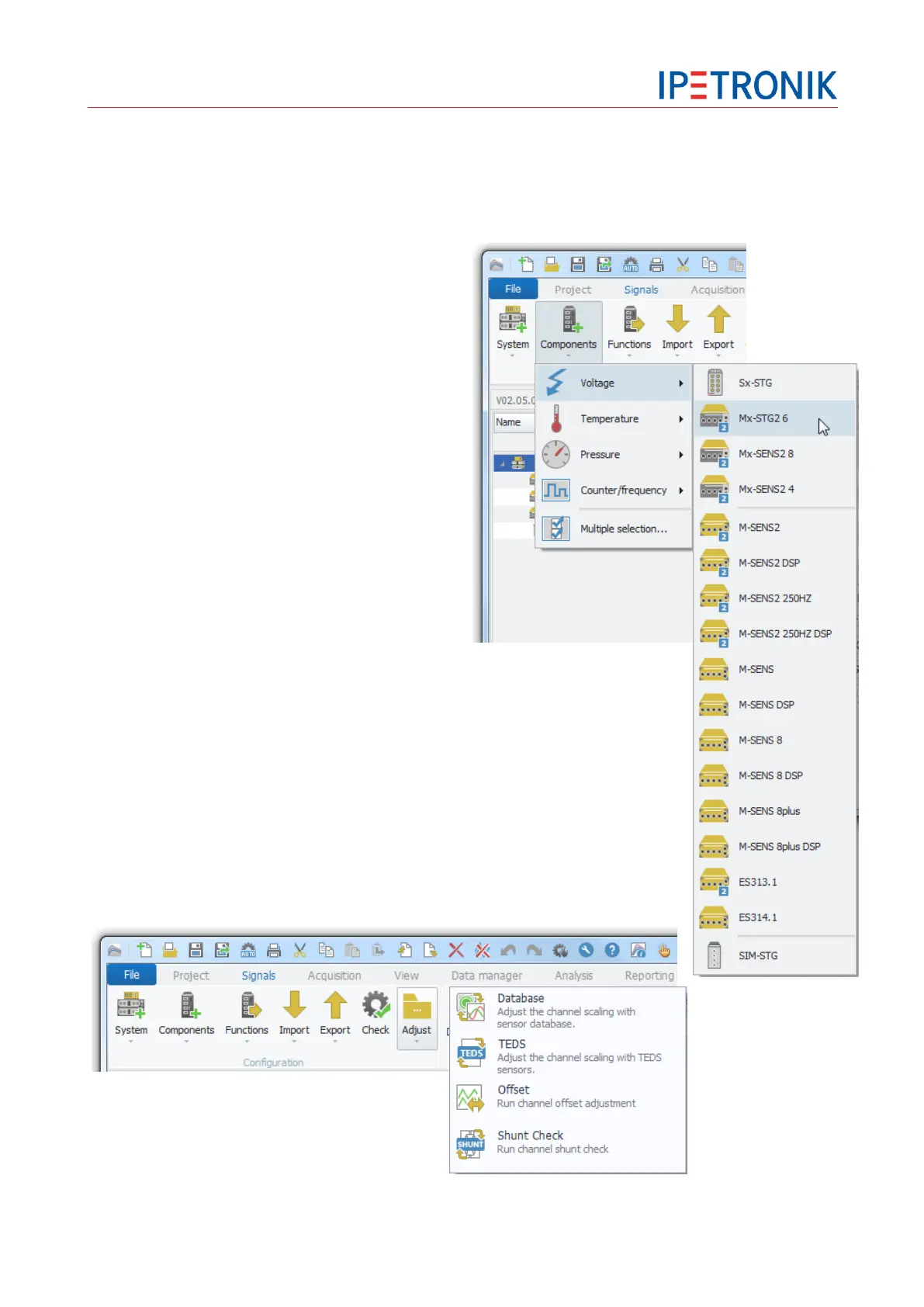

5.2.4 Add new modules manually
Go to the main tab Signals.
Add an IPETRONIK X system (Add system)
Select Add components from the menu bar.
5.2.5 Adjust
Adjust functions are global IPEmotion features. They will be available if they are
supported by the PlugIn (software) and the measurement channel (hardware).
IPEmotion will provide the extended Offset and target value adjustment with PlugIns
IPETRONIK-X ≥ V02.00 and the following modules:
M-SENS2 / Mx-SENS2 4
M-SENS2 (with DSP, with 250 Hz Filter)
M-SENS (with DSP)
M-SENS 8 / M-SENS 8plus (with DSP)
Mx-STG2 6 / Sx-STG
SIM-STG
Database
Adjusts the channel scaling settings with sensor
settings from the sensor database.
