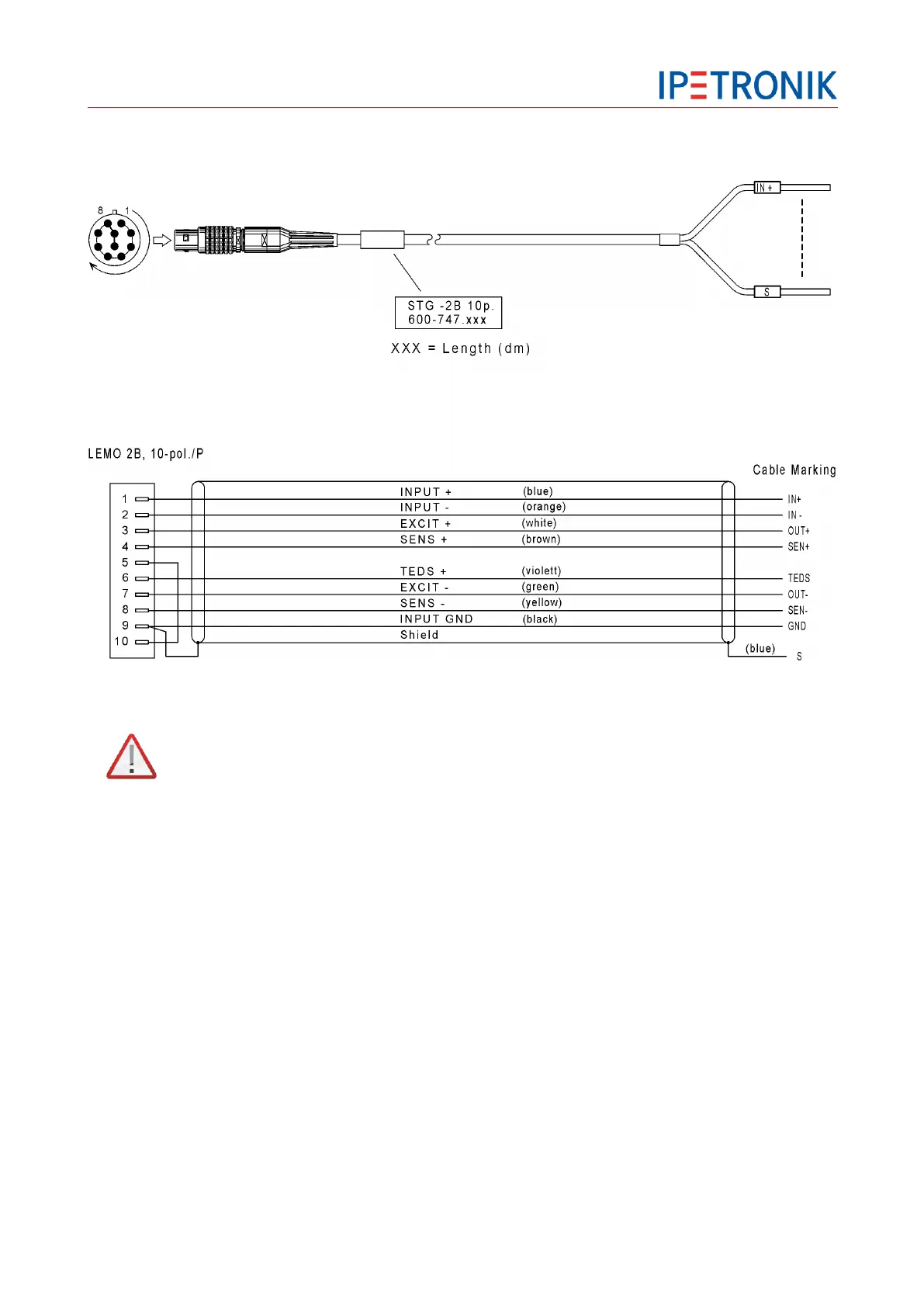

If you do not use IPETRONIK input cables, please pay attention to the correct pin configuration!
The connection Pin 5 <> Pin 10 is always required as the module identifies by this, when a
sensor has been plugged in.
3.4.2 Signal input modes
Each input channel can be set to one of three different signal input modes:
STG mode strain gage applications (4-wire and 6-wire bridge connection)
SENS-Mode sensors with integrated amplifier unit (3-wire, 4-wire connection),
and common voltage measurement
ICP-Mode ICP sensors (Integrated Circuit Piezoelectric, eg. acceleration transducers)
