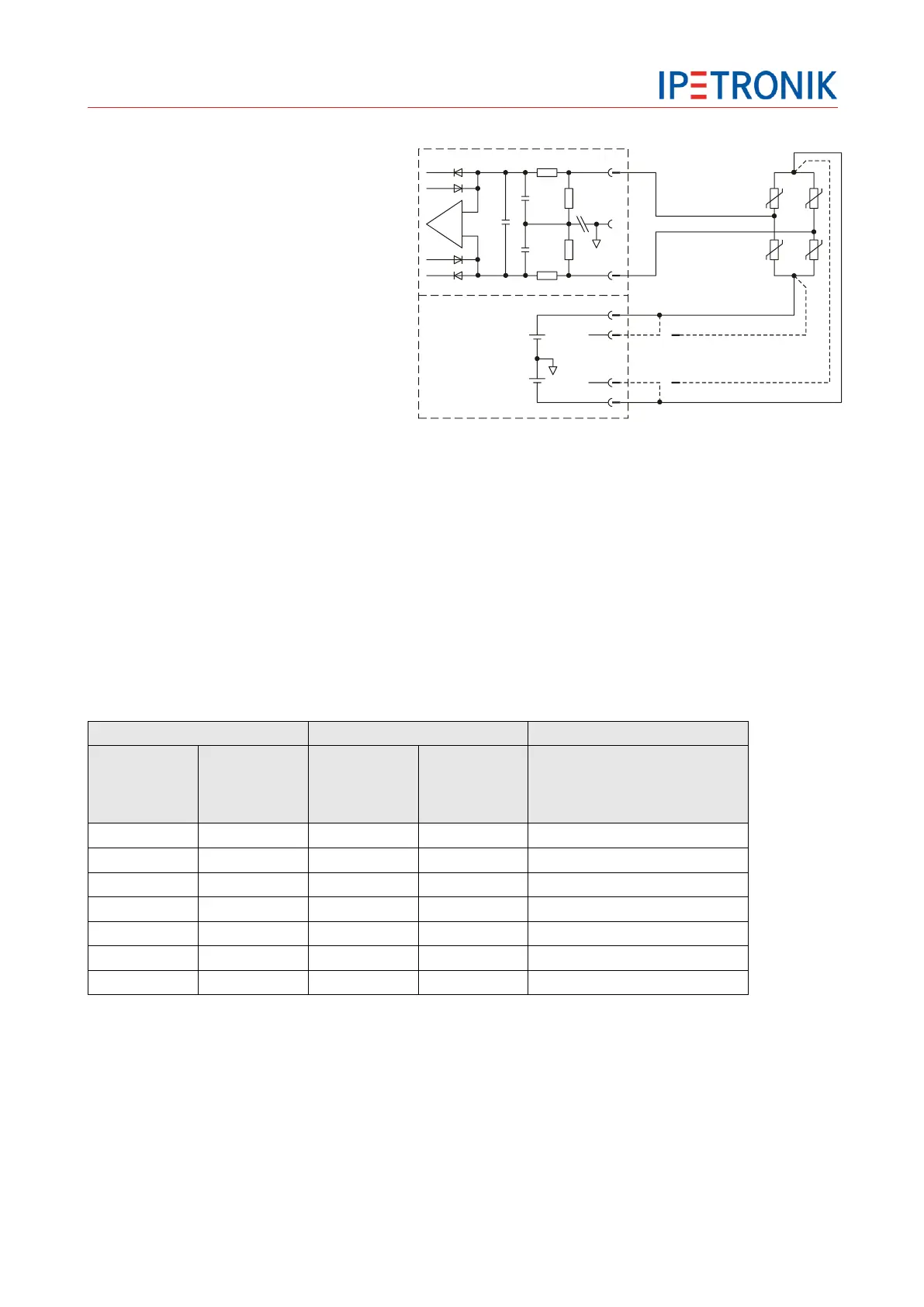

X-LINK modules
IPETRONIK PlugIn X V02.14.00
IPETRONIK GmbH & Co. KG
26/ 87
IN+
5M
5M
20k
20k
IN-
+0.5/ +1.25/ +2.5/ +5 V
Unipolar
2 mV bis 2 V
Bipolar
2 V±2 mV bis ±
-0.5/ -1.25/ -2.5/ -5 V
GND
GND
+SENS
-SENS
+VOUT
-VOUT
+
-
SensorMeasurement Input
STG-Mode
Application
 Measurement with strain gages
(full / half / quarter bridges)
 Measurement with sensors which
provide a fixed ground (GND) reference
(with no definite ground reference the
input may drift, because of the high
impedance of the signal input)
Features
 Bridge connection supporting 2-wire,
4-wire and also 6-wire technique
 Bridge completion using internal resistors
 Shunt check in configuration mode as well as in measurement mode
Adjustable shunt resistor 5 kΩ to 500 kΩ (minimum and maximum value depends on
the current setting of the excitation voltage), connectable to each bridge section (quadrant).
The complete adjust data can be output to the software (CSV format) and can be loaded and applied to the
sensor for verification of stability and repeatability.
 Sensor break detection for all 6 wires (IN [up to an input range of 200 mV], VOUT, SENS)
indication by output of –Full Scale
Measurement ranges
 0 ... 2 mV to 0 ... 2 V in 2 mV steps
 ±2 mV to ±2 V in 2 mV steps
Adjustable differential voltages (hardware adjust)
STG measurement ranges
STG measurement ranges
STG adjust ranges
unipolar
min
unipolar
max
bipolar
min
bipolar
max
Full Scale (FS) means the
upper range limit of the
corresponding measurement
range
2 mV
30 mV
±2 mV
±30 mV
±3125 mV ±0,9 FS
32 mV
62 mV
±32 mV
±62 mV
±62.50 mV ±0,9 FS
64 mV
124 mV
±64 mV
±124 mV
±125.00 mV ±0,9 FS
126 mV
250 mV
±126 mV
±250 mV
±250.00 mV ±0,9 FS
252 mV
500 mV
±252 mV
±500 mV
±500.00 mV ±0,9 FS
502 mV
1000 mV
±502 mV
±1000 mV
±1000.00 mV ±0,9 FS
1002 mV
2000 mV
±1002 mV
±2000 mV
±2000.00 mV ±0,9 FS
Common Mode Rejection Ratio (CMRR)
To guarantee a correct measurement of the input signal over the complete measurement range (uncropped
signal amplitude), the input voltage on IN+ resp. IN- relating to the GND potential should not exceed 4 V.
Sensor excitation
 selectable bipolar voltage ±0.50 / ±1.25 / ±2.50 / ±5.00 V
 current load up to 45 mA per channel
