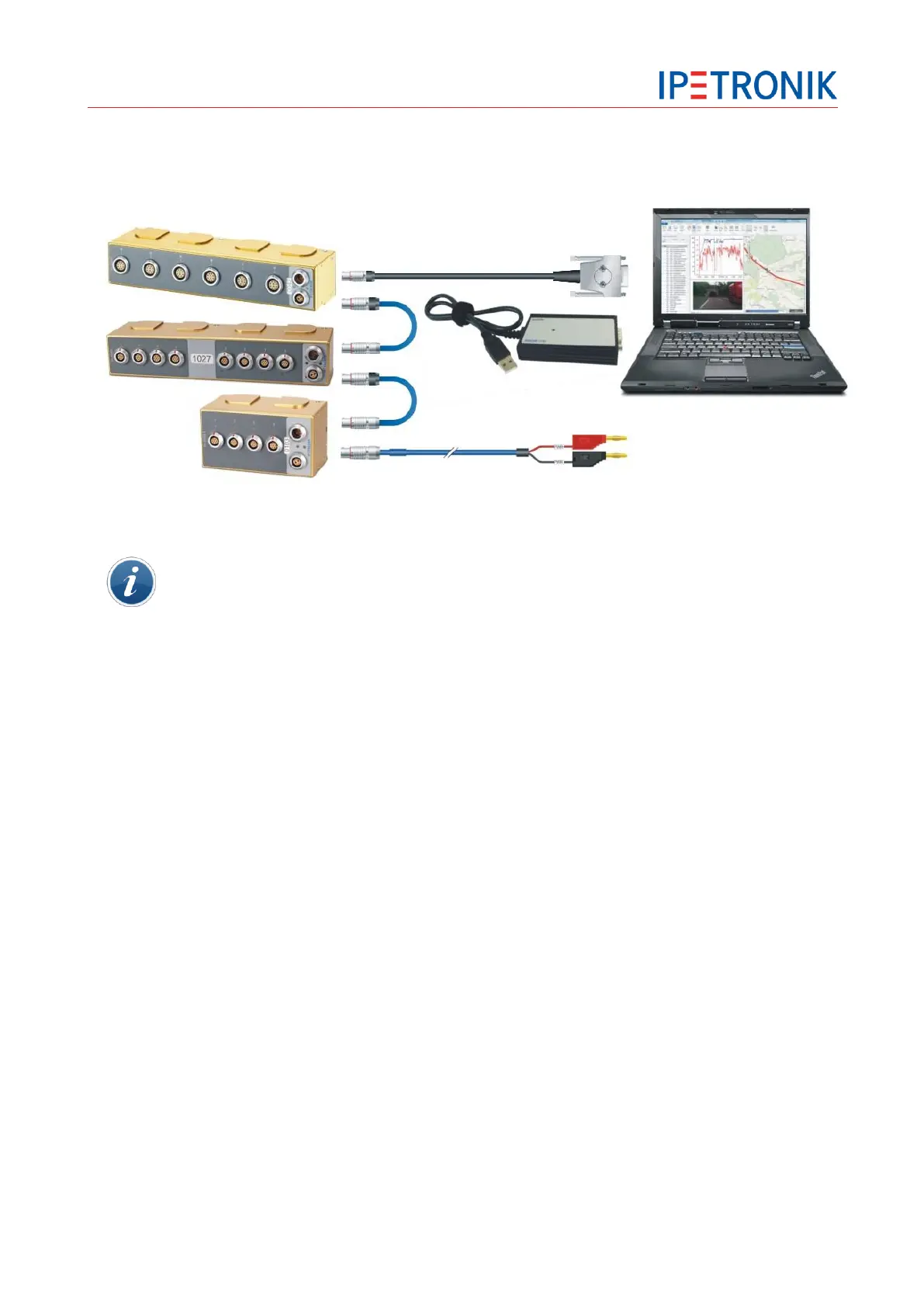

2.3.5 Using X modules within a CAN-System
X-Series modules can be used as CAN device within a CAN bus system with other devices (M-
Series). Although the configuration of the X modules requires an Ethernet connection, the CAN
bus is used for data acquisition. We recommend to setup the CAN bus data acquisition by the
import of a CANdb file (xxx.dbc). Detecting and setting up X devices via CAN bus (PlugIn
IPETRONIK-X, IPETRONIK-CAN is not supported).
630-500.002
X-Link Cable System
630-501.00x
X-Link Cable PWR Banana-2
IPEcan / IPEcan FD
630-508.xxx
X-Link Cable CAN SUBD9/S
