Sensor excitation
regulated supply current of typically 4.5 mA,
at a maximum off-load voltage of approx. 24 V
3.4.3 TEDS Class 2
The LEMO 2B version of Sx-STG is capable of supporting the use
of Transducer Electronic Data Sheet (TEDS) enabled transducers.
As a globally recognized industry Plug & Play standard, TEDS is
defined under IEEE 1451.4 and distinguishes between two interface
classes.

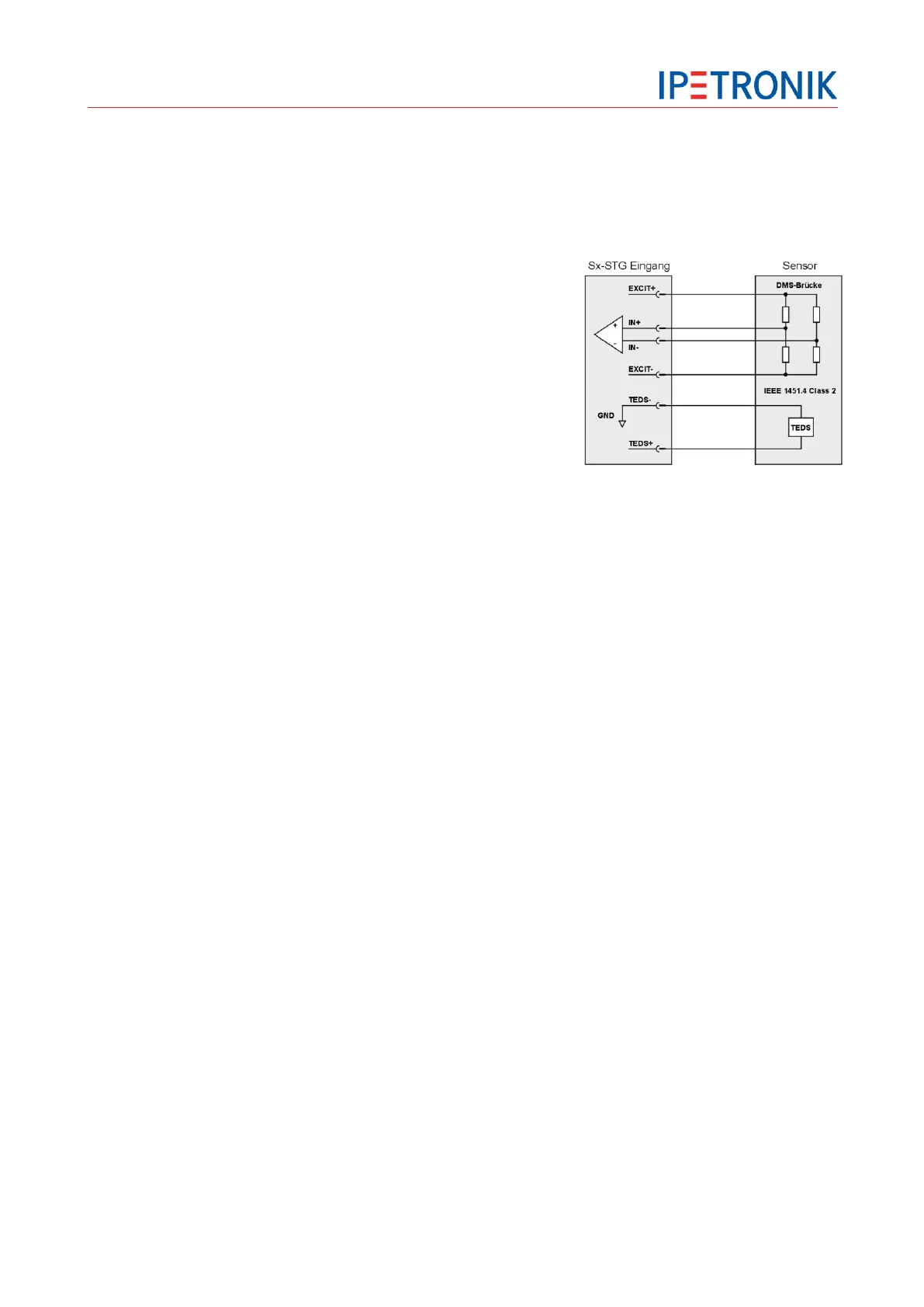

As soon as the input connector is plugged in, the Sx-STG module
automatically detects Class II TEDS sensors (e.g. multi-wire
interfaces with bridge-type sensors) and is able to read out sensor-
specific data about the TEDS +/- interface, using a serial,
master/slave model of communication.
