IPETRONIK IPEmotion PlugIn IPETRONIK-X - 3.4.3 TEDS Class 2

X-LINK modules
IPETRONIK PlugIn X V02.14.00
IPETRONIK GmbH & Co. KG
29/ 87
SENS measurement ranges
max. input voltages
unipolar
bipolar
IN+, IN- related to channel GND
5 V
±5 V
±20 V
10 V
±10 V
±20 V
20 V
±20 V
±40 V
50 V
±50 V
±100 V
Sensor excitation
 adjustable unipolar voltage 0.50 / 1.25 / 2.50 / 5.00 / 10.00 / 15.00 V
 adjustable bipolar voltage ±0.50 / ±1.25 / ±2.50 / ±5.00 / ±10.00 / ±12.00 / ±15.00 V
 current load up to 45 mA per channel

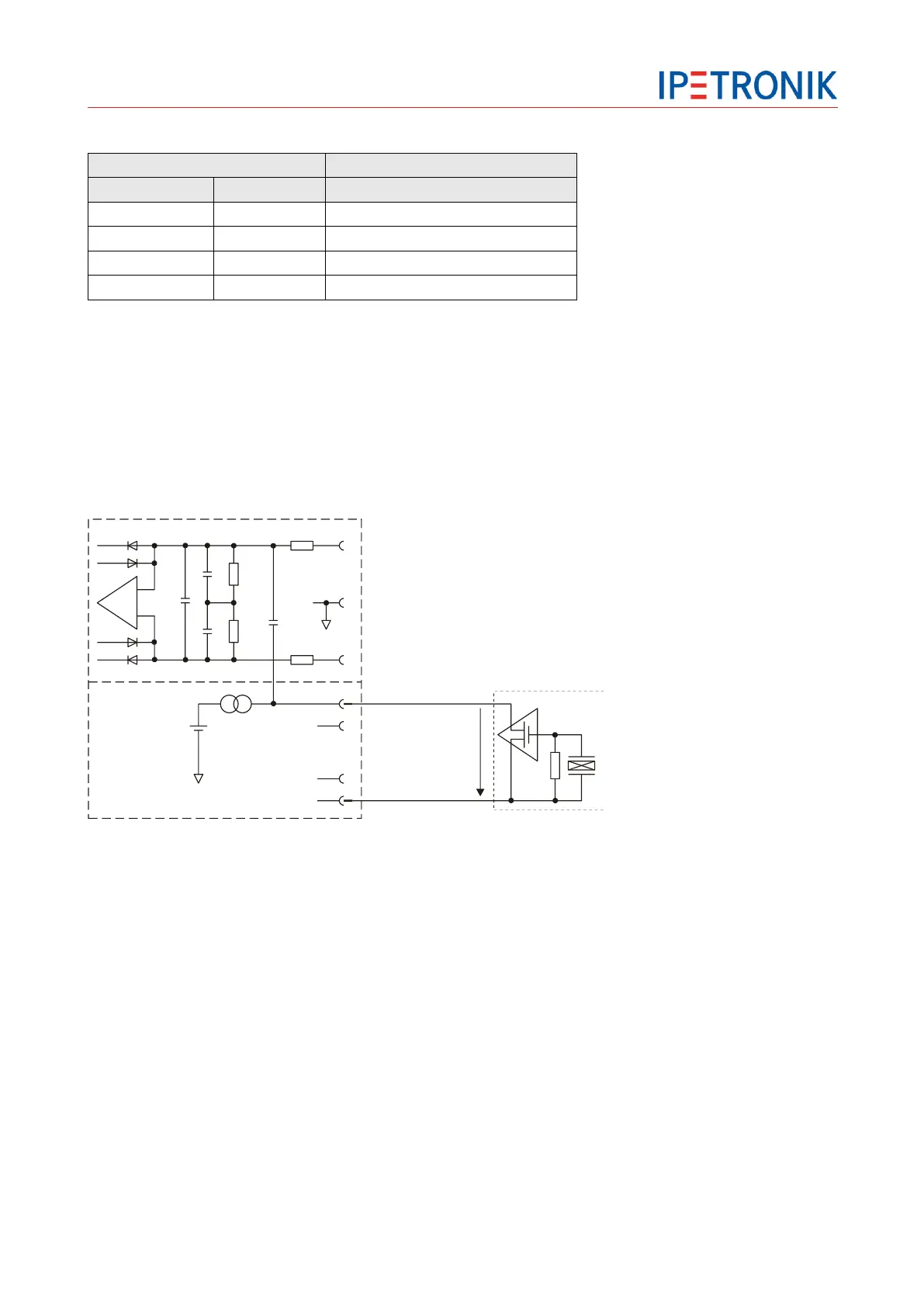

ICP-Mode
IN+
5M
5M
20k
20k
IN-
4.5 mA,
max. 24 V
GND
GND
+SENS
-SENS
+VOUT
-VOUT
+
-
ICP SensorMeasurement Input
Vmax = 24 V
Applications
 Measurement with ICP sensors (Integrated Circuit Piezoelectric),
mainly dynamic acceleration transducers
 Other piezo electric sensors (e.g. condenser microphone) can be supported
Features
 DC decoupling through input capacitor
 Output of the actual measurement value depending on the configured sampling rate (output rate to LAN).
In order to avoid measurement errors (aliasing) it may be reasonable to set the sampling rate to a higher
frequency.
 High speed regulation for sensor excitation current
Measurement ranges
 0.1/ 0.2/ 0.5/ 1.0/ 2.0/ 5.0 V
 Frequency response 5 Hz … 16 kHz
