X-LINK modules
IPETRONIK PlugIn X V02.14.00
IPETRONIK GmbH & Co. KG
17/ 87
3.1.1 Input cables
Standard (open)

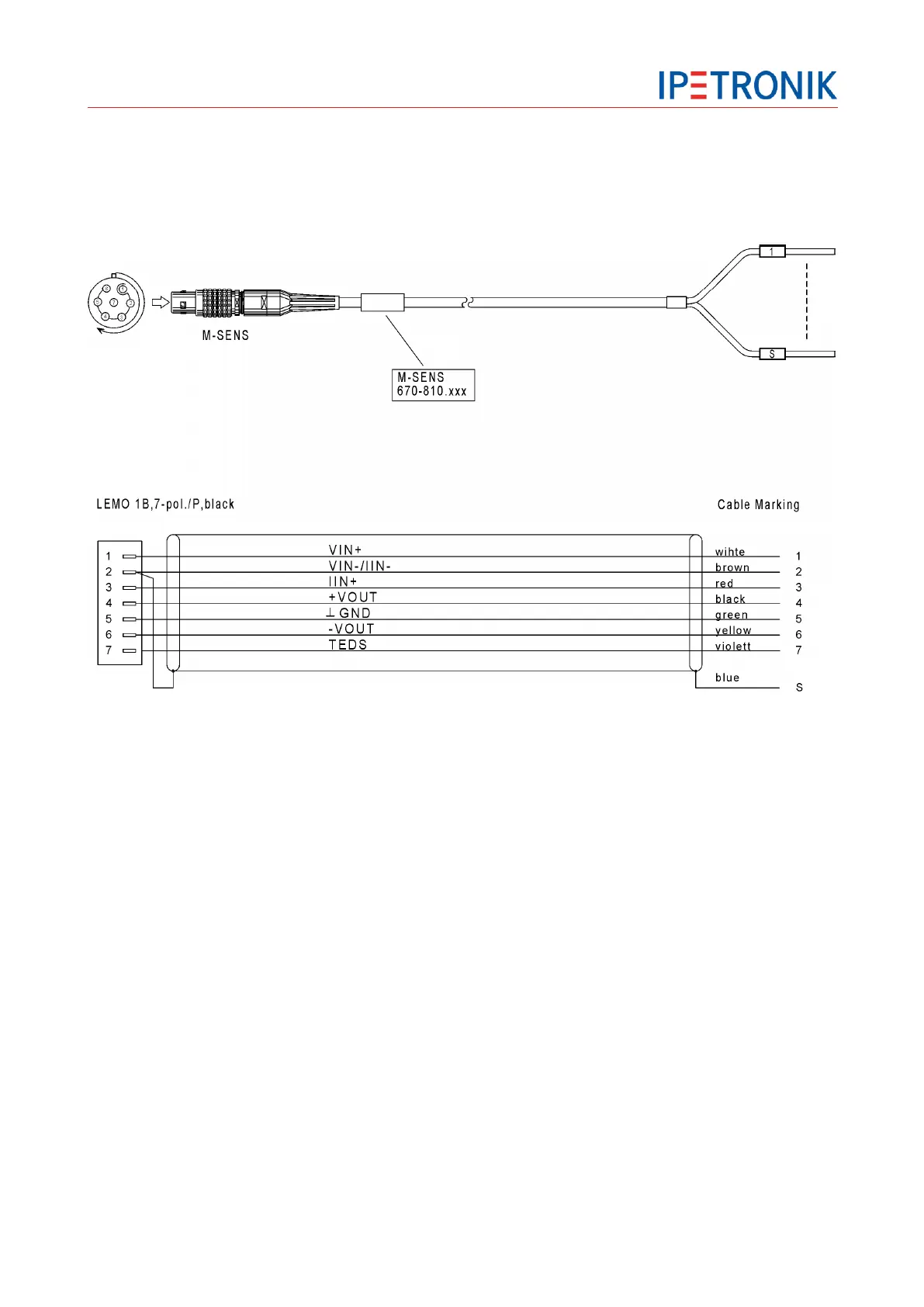

670-810.xxx M-SENS (TEDS) Cable open
Specific (assembled, open)
620-695.xxx Mx-SENS 1B 7pin Adapter BNC/S-ICP/TEDS for ICP measurement
670-807.xxx SENS 1B 6pin Cable open (compatible to 670-810, no TEDS support)
600-861.xxx SENS 1B 6pin Cable Banana 6 (compatible to 670-810, no TEDS support,
all lines connected to banana plugs)
600-864.xxx SENS 1B 6pin Cable Banana 2 (VIN+/VIN- via banana plugs)
