3.4 Sx-STG
Fast 8-Channel Multi-Analog Measurement Device with Excitation
8 analog signal inputs for voltage measurement
Measurement modes: SENS, STG, ICP, individual for each input
8 separate dual sensor excitations (up to 15 V, up to 45 mA)
Offset and target adjust functions by hardware
(maximum accuracy)
Shunt check
6-wire and 4-wire bridge connection (full / half bridge)
Internal resistors for bridge completion selectable
TEDS support (input connectors Lemo 2B)
Channel status-LED for channel identification and error indication
Measurement data output to Ethernet using XCPonEthernet,
Measurement data output to CAN
Complete galvanic isolation (signal inputs, excitation,
CAN, Ethernet, power supply)
Designed for automotive in-vehicle use
Toolless module to module connection as option

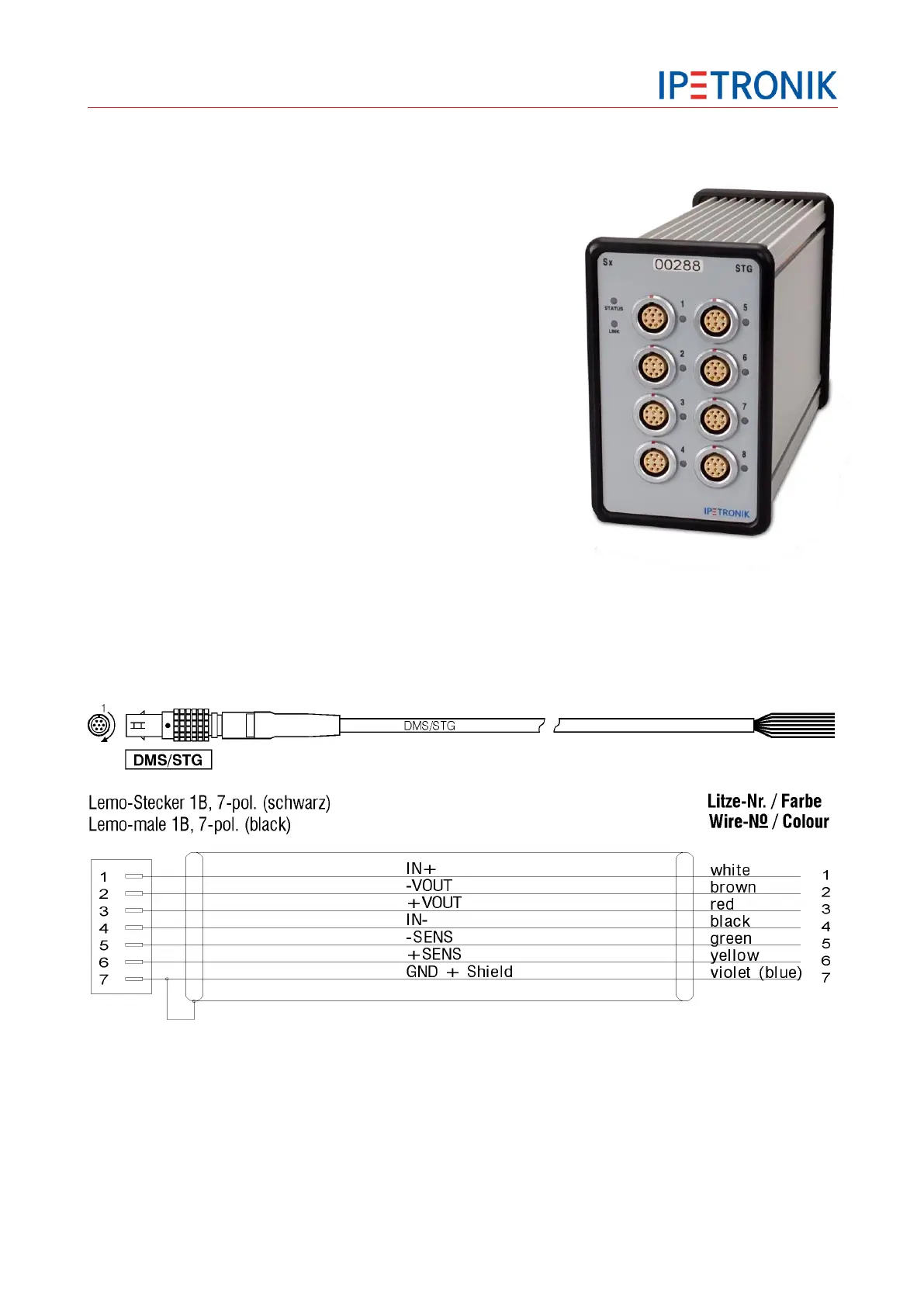

3.4.1 Input cables
Standard (open)
670-850.xxx DMS/STG Cable open (7-pin DMS compatible)
