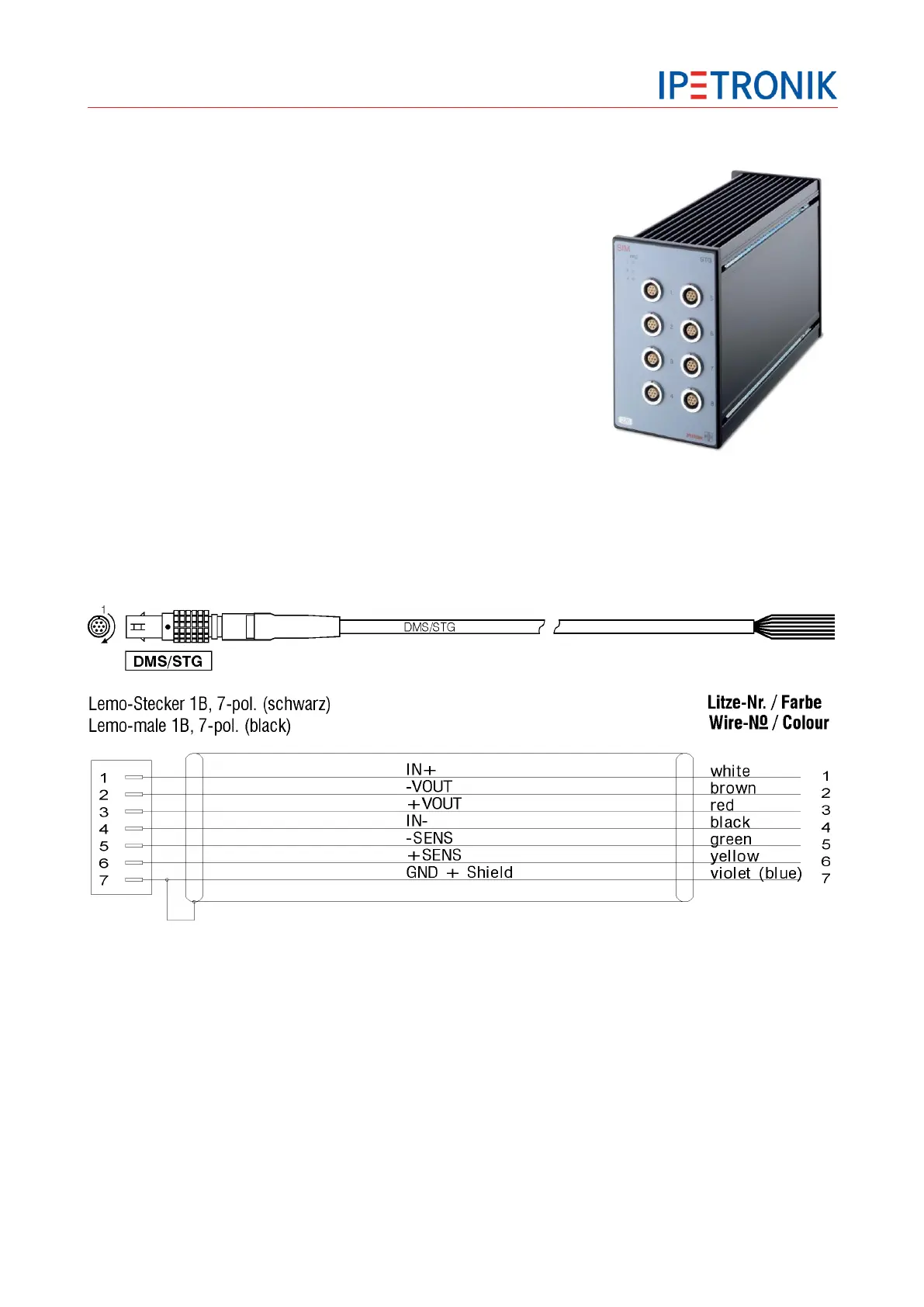

4.9 SIM-STG
Fast 8-Channel Multi-Analog Measurement Device with Excitation
8 analog signal inputs for voltage measurements
Measurement modes: SENS, STG, ICP, individual for each input
Hardware filter and DSP software filter
8 separate dual sensor excitations (up to 15 V, up to 45 mA)
Offset and target adjust functions, shunt check
Internal resistors for bridge completion selectable
Measurement data output to CAN
Complete galvanic isolation (inputs, excitation, CAN,
power supply, enclosure)
Designed for automotive in-vehicle use
4.9.1 Input cables
Standard (open)
670-850.xxx DMS/STG Cable open (7-pin DMS compatible)
