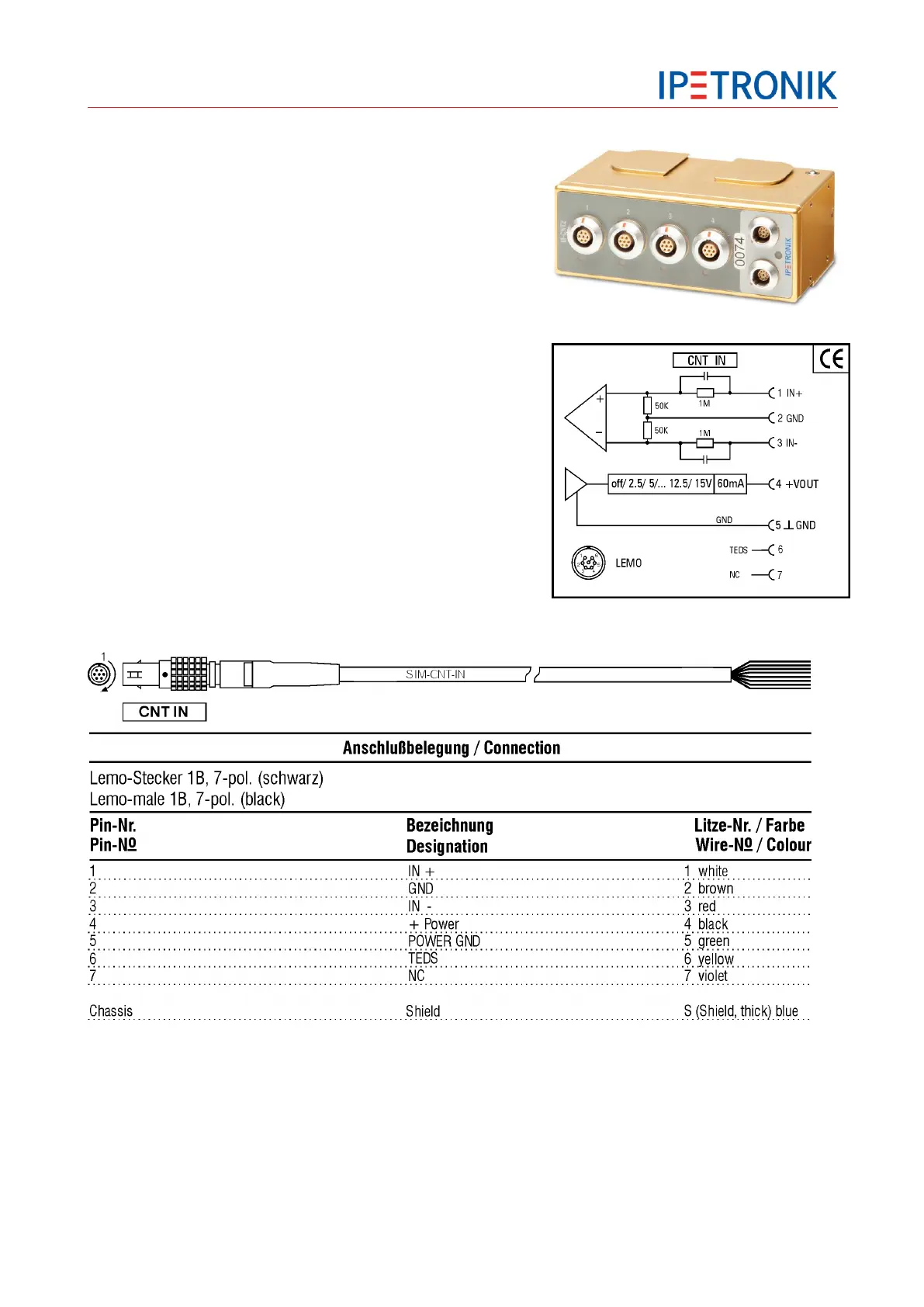

4.7 M-CNT2
4-Channel Universal Counter with Sensor Excitation
4 signal inputs with adjustable ON and OFF thresholds
Measurement modes: frequency from period duration,
period duration, pulse duration, pause duration, duty
cycle, event counter, detection of rotating direction (mode
frequency and event counter)
4 separate sensor excitations, supply voltage individually
selectable (up to 15 V, 60 mA)
Status LED at each input channel indicates signal processing
Measurement data output to CAN
Complete galvanic isolation (signal inputs, excitation,
CAN, power supply)
Designed for engine compartment applications
Toolless module to module connection
4.7.1 Input cables
Standard (open)
670-858.xxx CNT/FRQ-IN Cable open
