IPETRONIK IPEmotion PlugIn IPETRONIK-X - MX-STG2; Input Cables

X-LINK modules
IPETRONIK PlugIn X V02.14.00
IPETRONIK GmbH & Co. KG
20/ 87

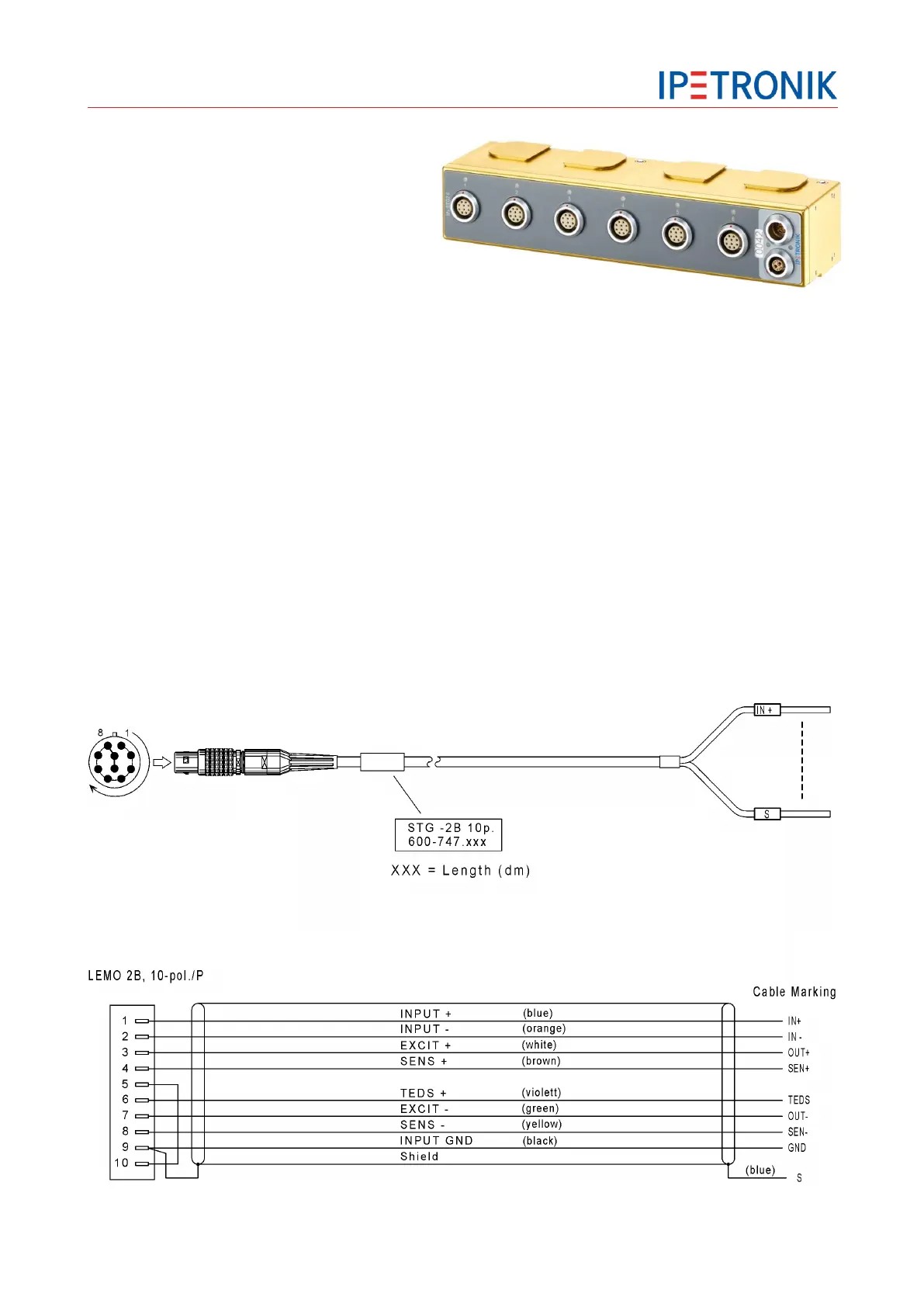

3.3 Mx-STG2
Fast 6-Channel Analog Measurement Device
with Excitation
 6 fast analog signal inputs for voltage
supporting channel sample rates up to 100 kHz
 STG measurement mode supports different bridge types
 6 separate dual sensor excitations (up to 5 V, up to 45 mA)
 Offset and target adjust functions within the measurement range
 Shunt check
 6-wire and 4-wire bridge connection (full / half bridge)
 Internal resistors for bridge completion selectable
 TEDS class 2 support (input connectors Lemo 2B 10-pin)
 Channel status-LED for channel identification and error indication
 Measurement data output to Ethernet using XCPonEthernet,
Measurement data output to CAN
 Complete galvanic isolation (signal inputs, excitation, CAN, Ethernet, power supply)
 Designed for automotive applications
 Toolless module to module connection
3.3.1 Input cables
Standard (open)
600-747.xxx STG 2B 10p. Cable open (10-pin TEDS)
