X-LINK modules
IPETRONIK PlugIn X V02.14.00
IPETRONIK GmbH & Co. KG
21/ 87

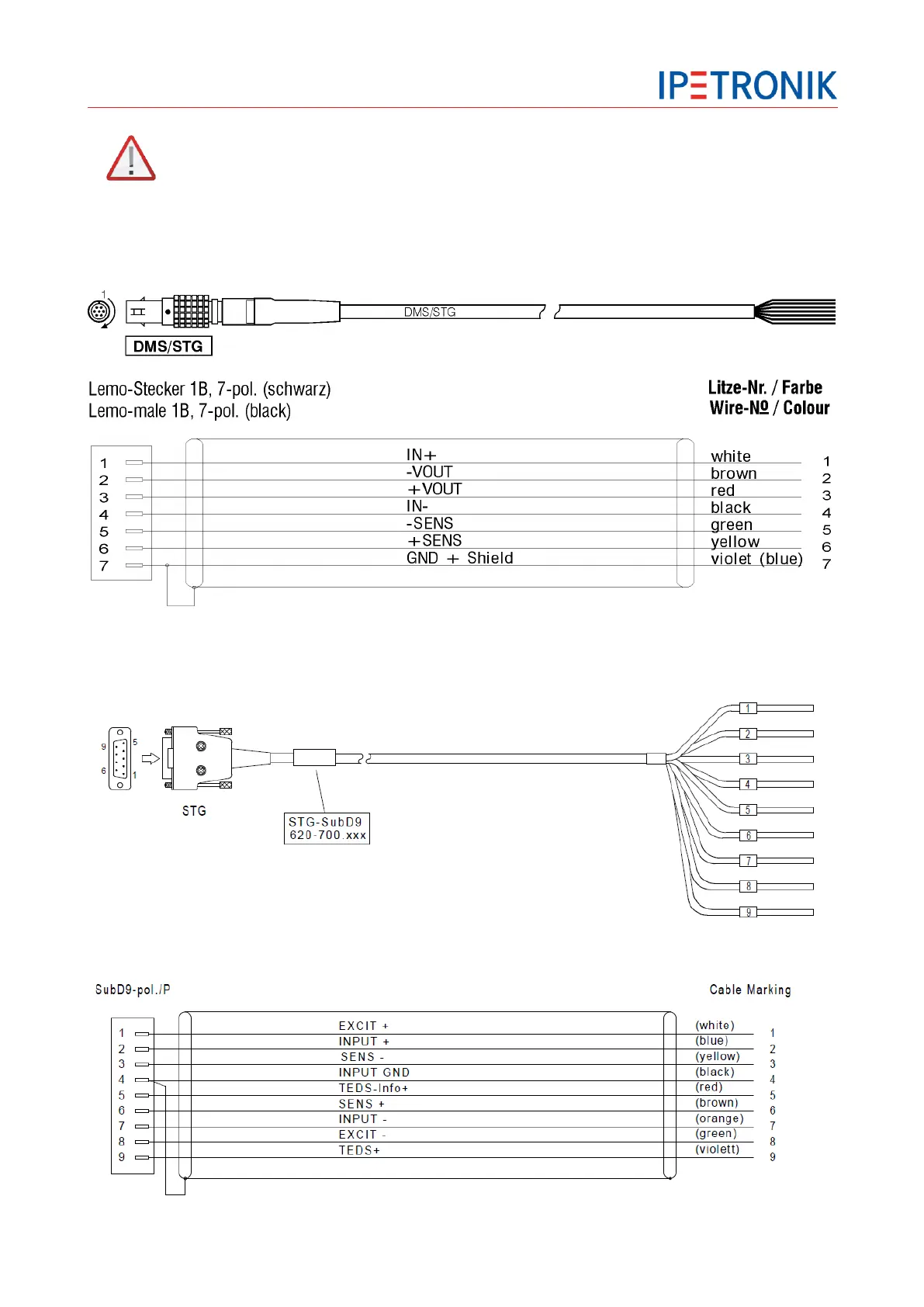

If you do not use IPETRONIK input cables, please pay attention to the correct pin configuration!
The connection Pin 5 <> Pin 10 is always required as the module identifies by this, when a
sensor has been plugged in.
670-850.xxx DMS/STG Cable open (7-pin DMS compatible)
620-700.xxx STG SubD9/P Cable open (9-pin DSUB)
