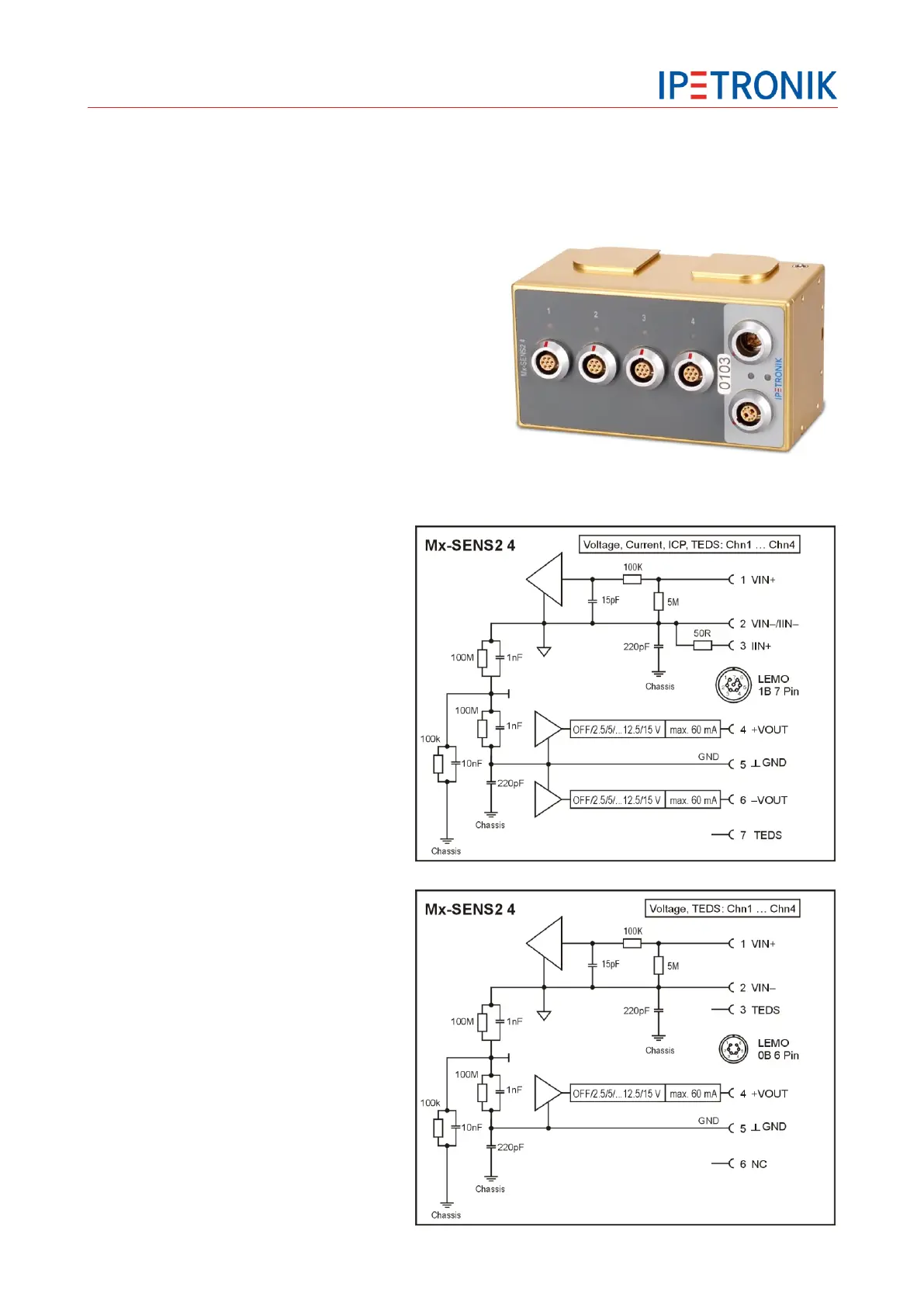

3 X-LINK modules
3.1 Mx-SENS2 4 fast
Fast 4-Channel Analog Measurement Device
with Excitation
4 fast analog signal inputs for voltage / current
supporting channel sample rates up to 400 kHz
4 galvanically isolated sensor excitations (up to ±15 V,
±60 mA), supply voltage selectable
10 bipolar voltage measurement ranges
Current measurement range ±20 mA
ICP mode supporting IEPE sensors (Integrated
Electronics Piezo Electric)
TEDS support
Offset and target value adjust functions
Status LED at each input channel (sensor break indication and configuration aid)
Measurement data output to Ethernet
using XCPonEthernet
Measurement data output to CAN
Complete galvanic isolation (inputs,
excitation, CAN, Ethernet, power supply,
enclosure)
Designed for automotive in-vehicle use
Toolless module to module connection
