IPETRONIK IPEmotion PlugIn IPETRONIK-X - Canpressure; Pressure Connections

CAN modules
IPETRONIK PlugIn X V02.14.00
IPETRONIK GmbH & Co. KG
43/ 87
4.8 CANpressure
Automotive Pressure Sensor with Data Output to CAN
 Absolute or relative pressure gauge
 Various types of CANpressure covering a pressure range of 0 ... 1
bar to 0 ... 250 bars available
 Built-in sensor to measure the temperature at the gauge point
 Measurement data output to CAN
 Complete galvanic isolation (amplifier, CAN, power supply,
enclosure)
 Designed for engine compartment applications

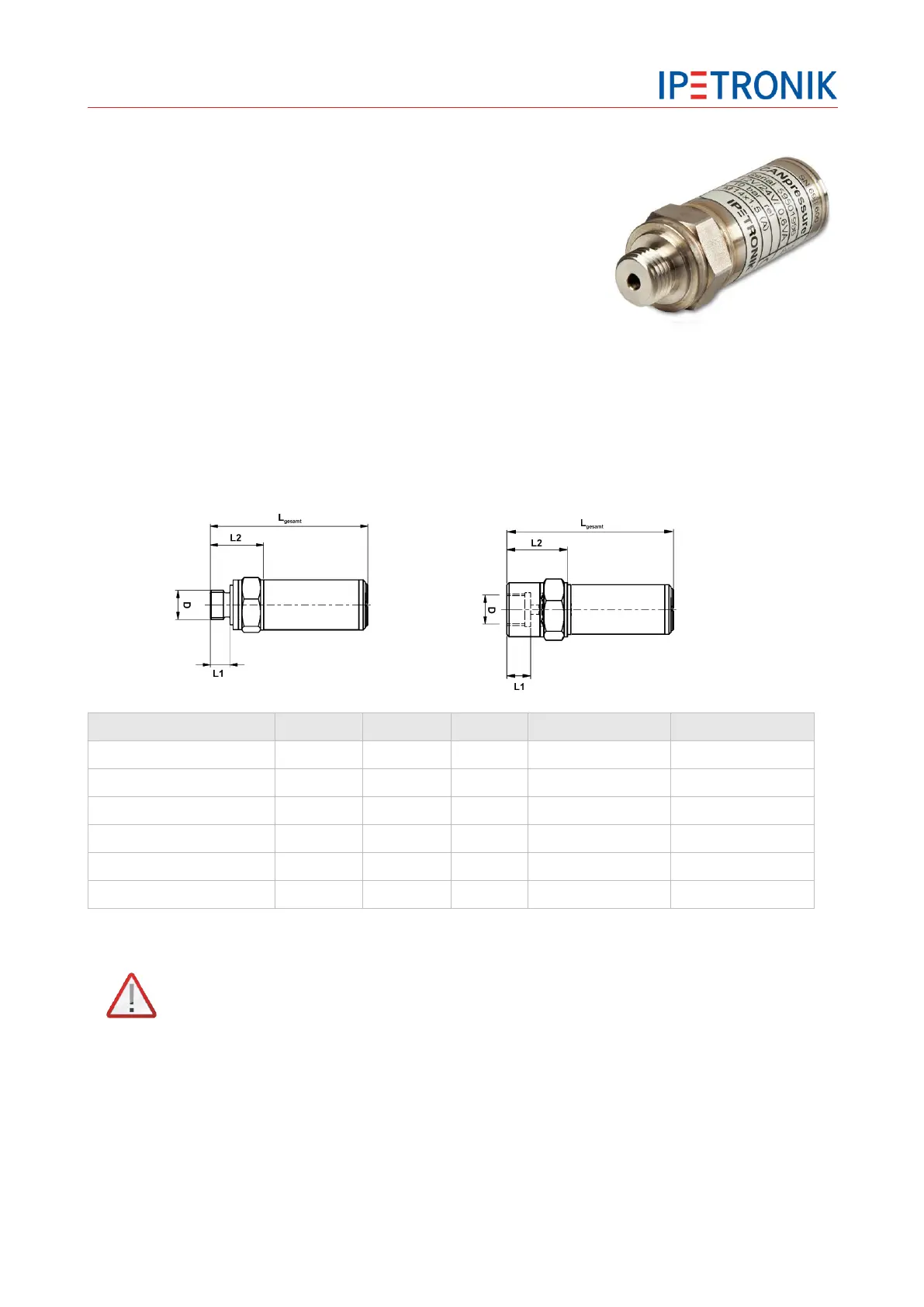

4.8.1 Pressure connections
Dimensions
D
L1
L2
Fastening torque
Wrench size
M 10 x 1 male
10 mm
8.5 mm
25.5 mm
17 ... 23 Nm
24 mm / 0.94 in
M 10 x 1 female
10 mm
9.5 mm
26.5 mm
17 ... 23 Nm
24 mm / 0.94 in
M 14 x 1,5 male
14 mm
9.5 mm
25.5 mm
17 ... 23 Nm
24 mm / 0.94 in
M 14 x 1,5 female
14 mm
10.5 mm
26.5 mm
17 ... 23 Nm
24 mm / 0.94 in
G ¼ male
13.2 mm
9.5 mm
25.5 mm
17 ... 23 Nm
24 mm / 0.94 in
G ¼ female
13.2 mm
10.5 mm
26.5 mm
17 ... 23 Nm
24 mm / 0.94 in
Keep the stated range of the fastening torque when mounting CANpressure to ensure
full accuracy!
Do not exceed the upper limit of the fastening torque to avoid an irreversible damage of the
pressure transmitter!
Male thread
Female thread
