Using TEDS sensors
Mx-STG2 and Sx-STG type LEMO 2B (TEDS) support the use of TEDS sensors once the input connector
has been plugged in.
Connect the TEDS sensor with a free input channel of Mx-STG2/Sx-STG.
Move to the Signals tab.
Click Detect from the icon bar at the upper area of the channel grid, alternatively
Click Synchronize from the icon bar at the upper area of the channel grid (drop down menu Detect) to
reload latest settings.

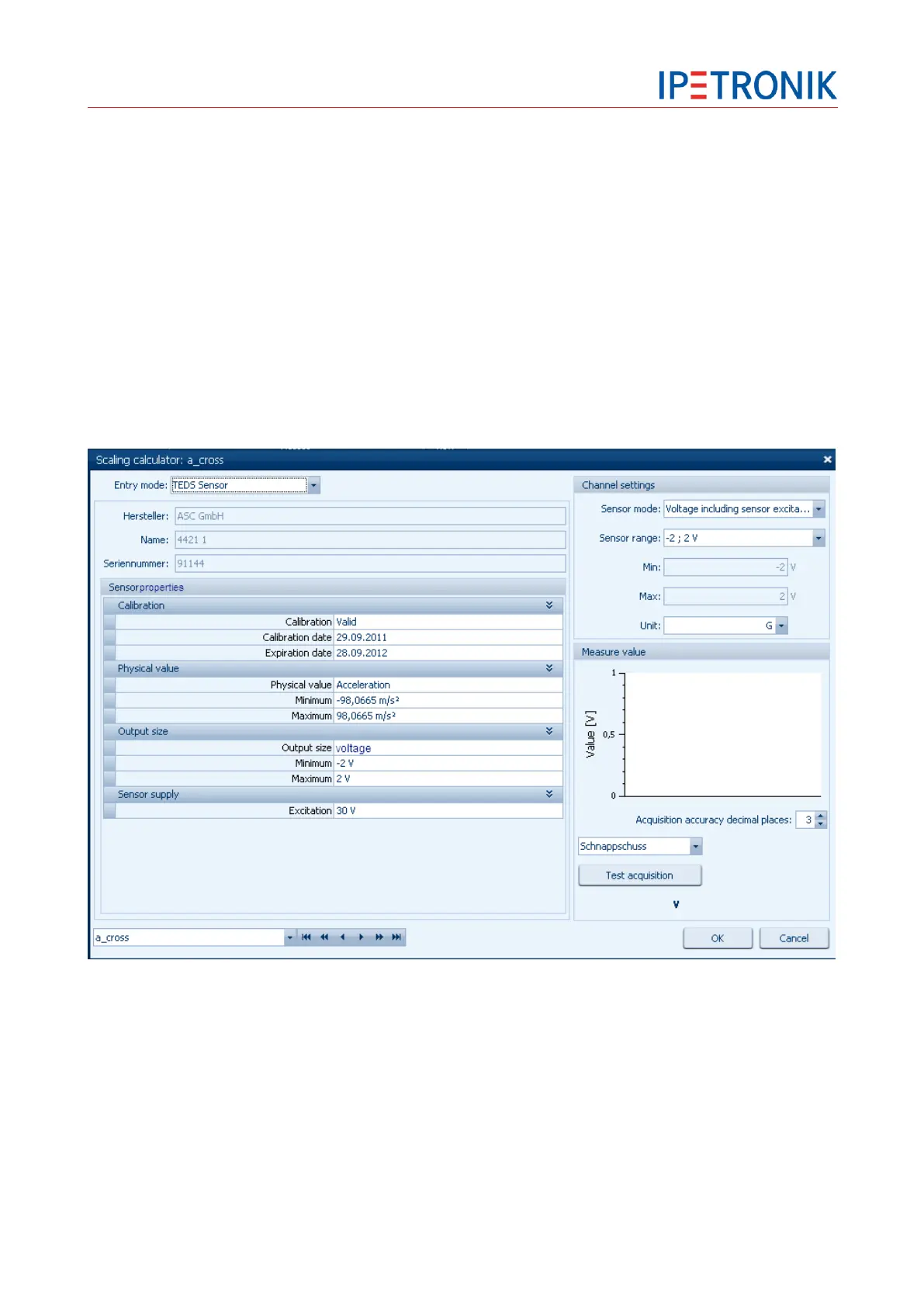

Mx-STG2/Sx-STG now reads all configuration data from the sensor's chip and provide them with the
Scaling Calculator (Entry mode: TEDS Sensor).
