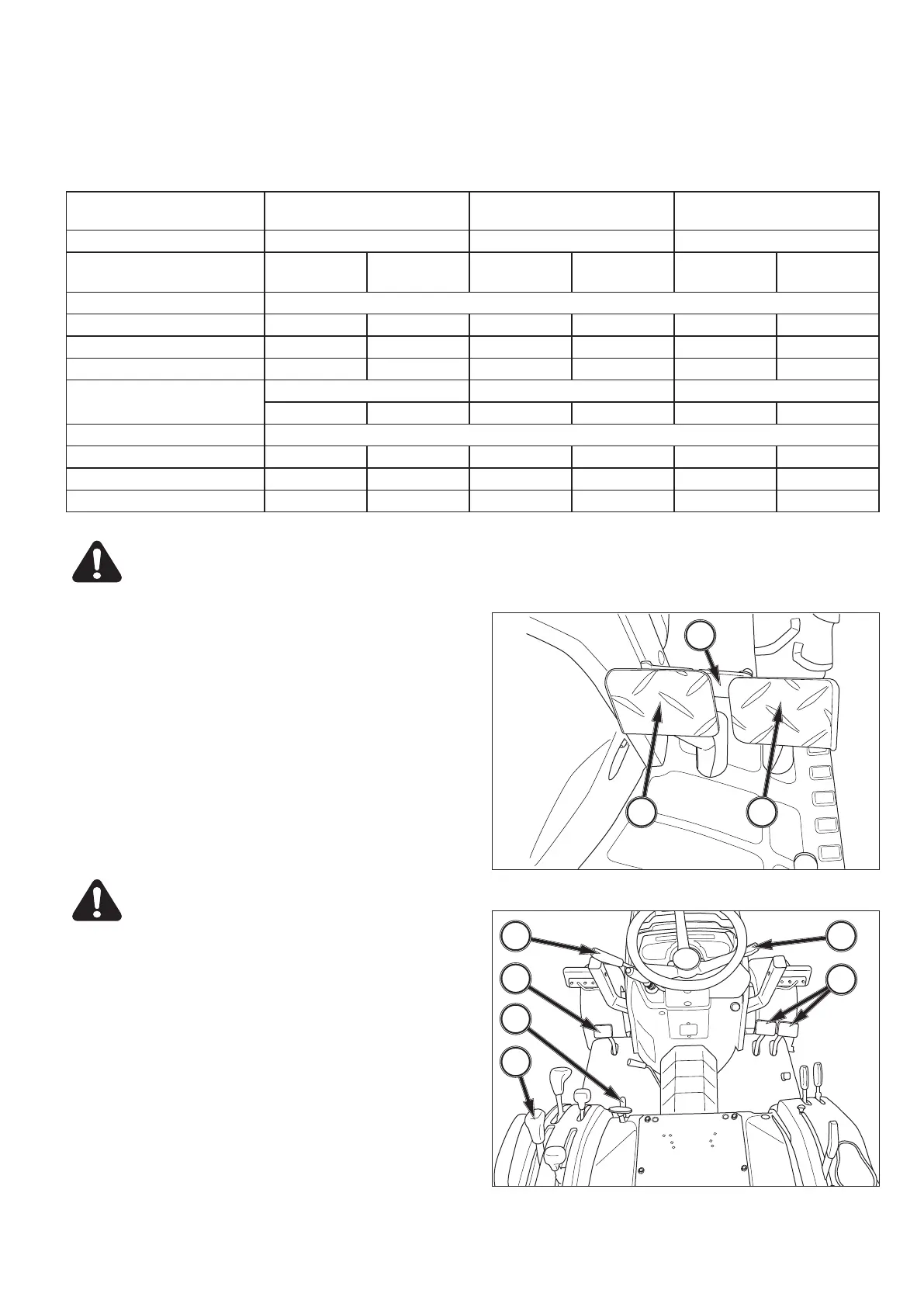

Iseki TM3265 - STOPPING TRACTOR; Mechanical Transmission; TABLE 3: Speed chart (Hydrostatic Transmission)

OPERATION
45
21
3
6
4
2
5 1
3
FIG. 73
FIG. 74
TABLE 3: Arrangement of gears with appropriate ground
speeds, in order from slow to fast, as shown in the chart
below, for hydrostatic transmission.
CAUTION: Before leaving the tractor unat-
tended, make sure parking brakes are ap-
plied, rear mounted implement is lowered to
the ground and the key is removed from the
ignition switch.
STOPPING TRACTOR
Mechanical Transmission
FIGS. 73 & 74: Brake pedals, 1 and 2, may be used in-
dependently to operate respective brake and assist turn-
ing at low speed operation. Unlatch brake pedals and
use as required to assist turning.
When traveling on road or operating at high speed,
brake pedals must be latched together with interlocking
plate, 3, so both brakes will apply at the same time.
CAUTION: Do not use individual wheel
brakes, and latch brake pedals together us-
ing interlocking plate when traveling on
roads or operating at high speed. Make sure
brakes are adjusted evenly.
To stop the tractor with mechanical transmission, move
the throttle lever, 1, forward, to reduce engine speed
and slow travel. Depress the clutch pedal, 2, and brake
pedal, 3, to stop. Position the range gear shift lever, 4,
and forward / reverse shuttle lever, 5, in neutral position.
Be make sure to latch the brake pedals together, de-
press the brake pedals and pull parking brake lever, 6,
up firmly.
Allow engine speed to idle several minutes to allow even
cooling. Then turn main switch to “off” shutting off en-
gine. Lower 3-point hitch and remove key from ignition.
TABLE 3: Speed chart (Hydrostatic Transmission)
Shift
Positions
TM3215
(Engine 2500 min-1)
TM3245
(Engine 2600 min-1)
TM3265
(Engine 2600 min-1)
Range Km / h Km / h Km / h
Tire
Agri
(9.5 - 16)
Turf
(31X13.5 - 15)
Agri
(9.5 - 18)
Turf
(315/75D - 15)
Agri
(9.5 - 18)
Turf
(315/75D - 15)
Forward
L 8.0 7.3 8.8 8.1 8.8 8.1
M 12.9 11.9 14.2 13.1 14.2 13.1
H 21.1 19.4 22.2 20.4 22.2 20.4
Max. Speed
(forward)
High Idle High Idle High Idle
23.2 21.3 24.4 22.4 24.4 22.4
Reverse
L 6.0 5.5 6.6 6.1 6.6 6.1
M 9.7 8.9 10.7 9.8 10.7 9.8
H 15.8 14.5 16.6 15.3 16.6 15.3
