TM3215, 3245, 3265
78
ELECTRICAL SYSTEM
Battery

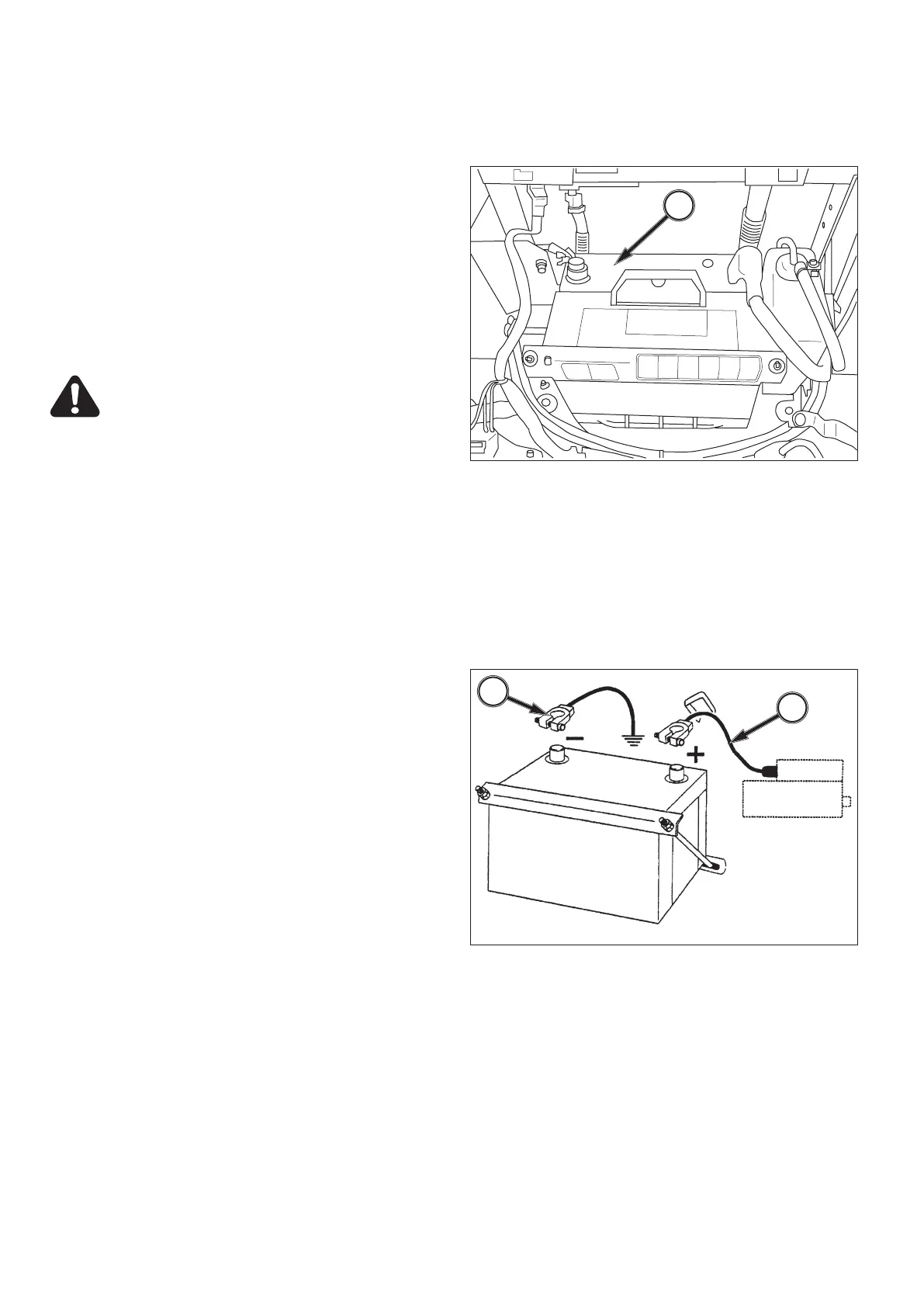

FIG. 142: Battery, 1, is located under the engine hood
in front of the radiator. If the battery requires only minor
servicing or charging, it is recommended that the front
grille be removed to reach the battery. When the bat-
tery is removed, electrolyte inspection or cable cleaning
is necessary, the front grille must be removed from the
tractor. Keep top of the battery clean and ensure cable
connections are clean and tight. Debris on the battery
can cause discharge of the battery and be a possible
source of fire.
CAUTION: Batteries produce explosive hy-
drogen when they have charged. Keep all
sparks and open flames away from the bat-
tery.
When necessary to disconnect battery
cables, always disconnect the earthed (-)
cable first to prevent short circuits.
Batteries contain sulfuric acid electro-
lyte fluid. Wear eye and face protection. If
electrolyte comes in contact with skin or
clothes, wash immediately. Contact a doctor
immediately if electrolyte is ingested or gets
in eyes.
FIG. 143: Tractors are shipped with the battery installed.
If battery replacement should become necessary, dis-
connect the negative (-) cable, 1, first and then remove
the positive (+) cable, 2. Loosen and remove the battery
securing clamp and carefully remove the battery from
the tractor.
When installing the battery, the cable, 2, connected to
the starter solenoid should be connected to the positive
(+) battery terminal first then the cable, 1, earthed to the
tractor frame can be connected to the negative (-) bat-
tery terminal.
NOTE: Make sure the replacement battery is of identi-
cal size and equal capacity.
IMPORTANT: Do not reverse battery cable connec-
tions as severe electrical system dam-
age will result.
1
2
1
FIG. 142
FIG. 143
