Iseki TM3265 - Hydrostatic Transmission

TM3215, 3245, 3265
44
Hydrostatic Transmission

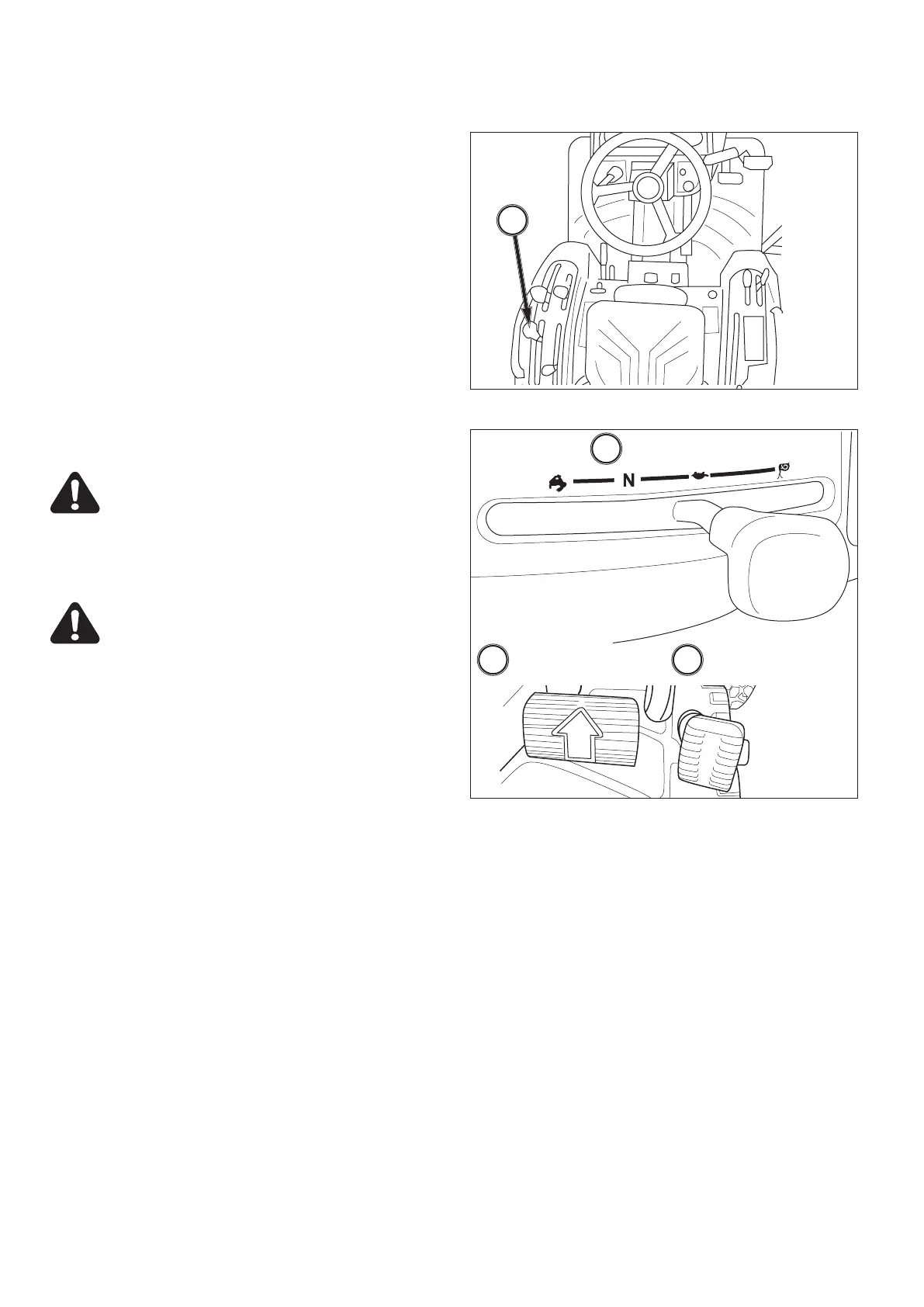

FIGS. 71 & 72: The hydrostatic transmission provides
infinite speed control in forward or reverse.
The range gear shift lever, 1, provides major changes
in ground speed. Tractors have snail, tortoise and hare
speed selections.
Pedal, 2, controls forward travel speed. As the pedal is
progressively pushed down, a corresponding increase in
ground speed will be noticed. When released, the pedal
will return to neutral and the tractor stops traveling.
Reverse speed is obtained by pushing pedal, 3, down.
As the pedal is progressively pushed down, a cor-
responding increase in ground speed will be noticed.
When released, the pedal will return to neutral and the
tractor stops reversing.
WARNING: To avoid personal injury
- Do not operate if tractor moves on level
ground with foot off of Hydrostatic control
pedal. (Except while cruise control opera-
tion)
- Contact your local ISEKI dealer.
CAUTION: When the range gear shift lever
is in H (H range), set engine speed between
1,200 min-1 and 1,500 min-1 by using hand
throttle lever, depending on the attached
implement.
1
Forward control pedal Reverse control pedal
2
Range gear shift lever
1
3
FIG. 71
FIG. 72
