Iseki TM3265 - Front Axle End-Float; CLUTCH HOUSING PLUG; TORQUE CHART

TM3215, 3245, 3265
86
Front Axle End-Float

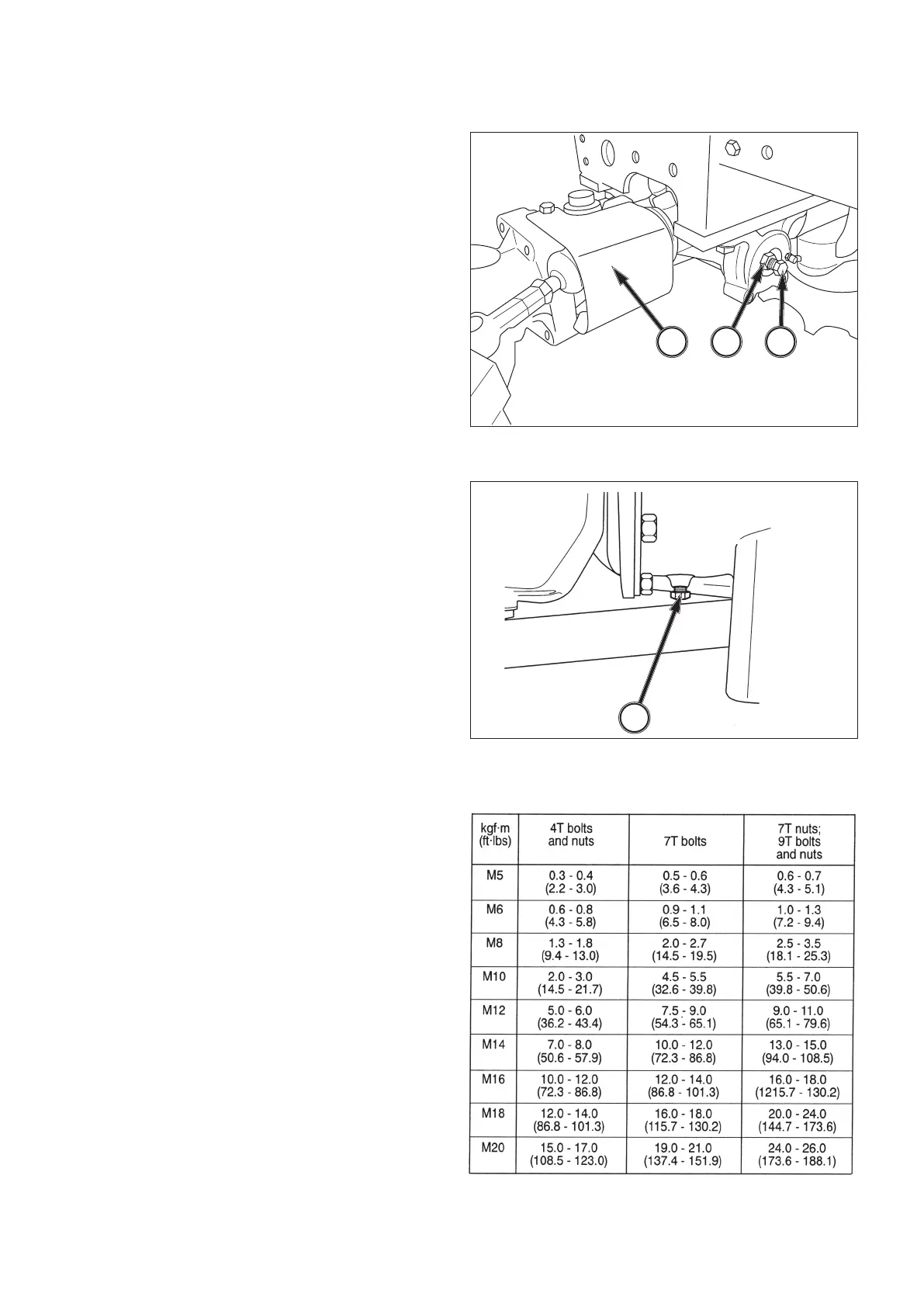

FIG. 157: Fore and aft play of the front axle, 1, in its
supports should be 0.1 to 0.3 mm (0.004-0.012”). End-
float is measured with axle raised off the ground.
Loosen the lock nut, 2, and turn the adjusting bolt, 3, as
needed to achieve correct measurement. Tighten the
lock nut.
NOTE: Excessive end-float will cause noise. This noise
will become bigger while using 4WD.
CLUTCH HOUSING PLUG
FIG. 158: Pipe plug, 1, should be removed from the bot-
tom of the clutch housing once a year or when clutch
slipping is apparent. Any oil leakage from the engine
rear crankshaft seal and / or transmission input shaft will
be indicated by oil draining through the hole. Contact
your ISEKI dealer if oil leakage is evident.
TORQUE CHART
TABLE 14: All fasteners should be tightened in ac-
cordance with the torque chart unless a specific torque
value is called out in relevant maintenance information.
1 2 3
1
FIG. 157
FIG. 158
TABLE 14: Torque chart
