TM3215, 3245, 3265
84
WHEELS & TIRES
Examine wheels and tires periodically for correct infla-
tion pressures, tight wheel bolts, and any physical dam-
age that may be a detriment to tractor operation and op-
erator safety. Correct condition prior to tractor operation.
Tire Inflation Pressures
TABLE 11: Maintaining correct tire pressure will help in-
sure tire life. Never exceed the maximum inflation pres-
sure specified on the tire. If tires have deep scratches,
cuts or punctures, the respective tire should be repaired
or replaced by qualified personnel as soon as possible.
IMPORTANT: If necessary to replace any tire (s), en-
sure original tire size is used. This is par-
ticularly true on 4WD models to ensure
correct amount of front axle overspeed
(or “lead”) is maintained.
Wheel Bolt Torque
Periodically check all wheel bolt torques.
Correct bolt torques:
Front Wheel Bolts 90 Nm (66 ft-lbs)
Rear Wheel Bolts 220 Nm (162 ft-lbs)
CAUTION: Correct wheel bolt torque must
be maintained. Installation of front or mid-
mounted implements (ex: loaders, mowers)
impose increased loads and require fre-
quent checking of wheel bolts.
Front Wheel Spacing

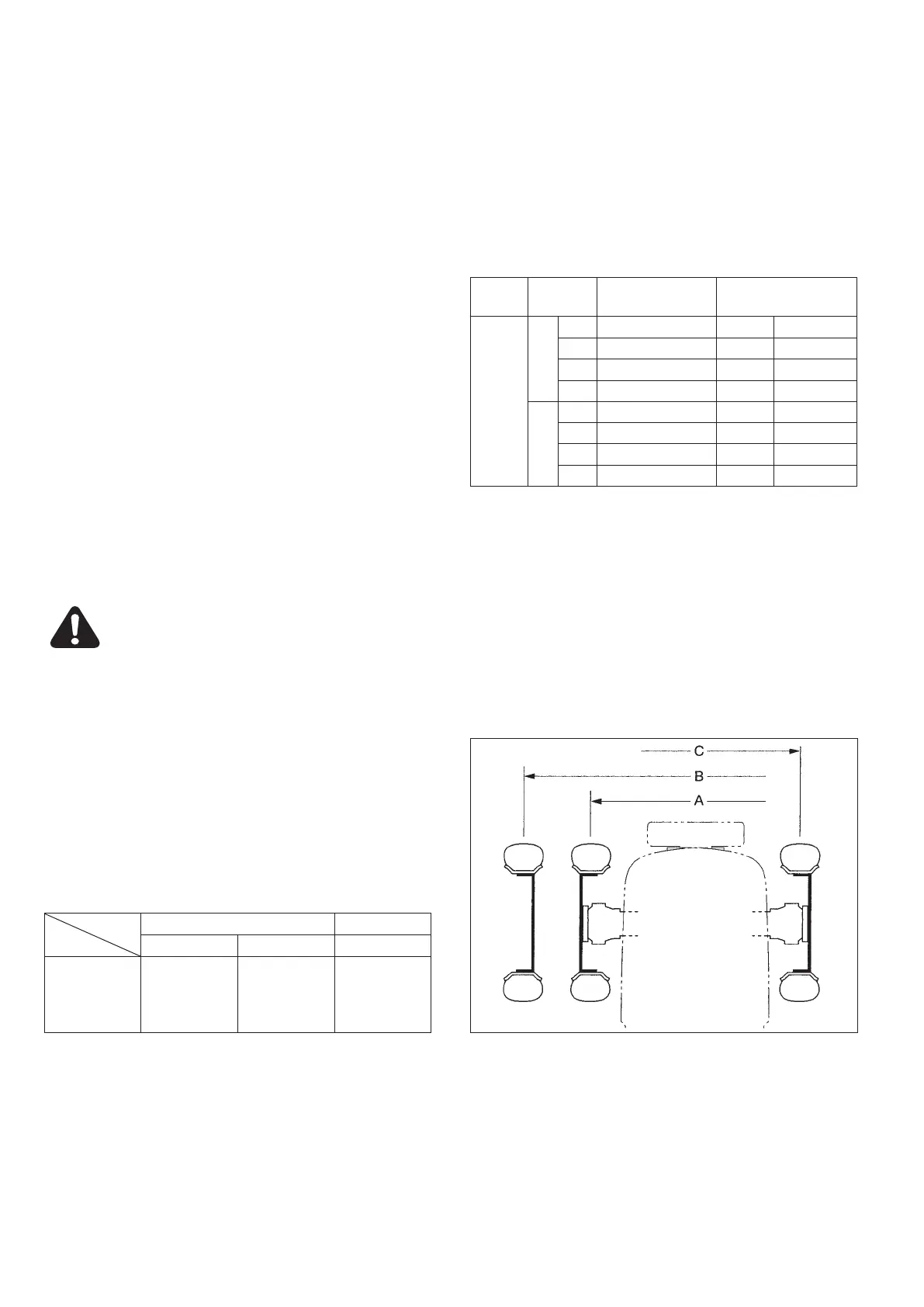

FIG. 154: Tread widths may be varied by using the fol-
lowing methods as applicable. Tread widths are mea-
sured tire center to tire center as close to the ground as
possible.
NOTE: Make certain desired setting is compatible with
implements to be used to prevent clearance
and interference problems.
TABLE 12: Front tire tread setting
AGRICULTURAL TURF
A B C
TM3215
TM3245
TM3265
815 mm 995 mm
(22x8.50-12)
920 mm
(24x8.50-12)
915 mm
TABLE 11: Tire inflation pressure
Tractor
Type
Tires
Tire
Location / Size
Pressure
TM3215
TM3245
TM3265
AG
Front 6-12 4PR 196 kPa 2.0 kgf / cm
2
Rear 9.5-16 6PR 216 kPa 2.2 kgf / cm
2
Front 6.00-12 4PR 177 kPa 1.8 kgf / cm
2
Rear 9.5-18 6PR 216 kPa 2.2 kgf / cm
2
Turf
Front 22X8.50-12 4PR 157 kPa 1.6 kgf / cm
2
Rear 31X13.5-15 4PR 137 kPa 1.4 kgf / cm
2
Front 24X8.50-12 4PR 157 kPa 1.6 kgf / cm
2
Rear 315X75D-15 4PR 98 kPa 1.0 kgf / cm
2
Agricultural tires Turf tires
FIG. 154
