TM3215, 3245, 3265
52
Hydrostatic Transmission
FIG. 86
1
2
3
FIG. 87

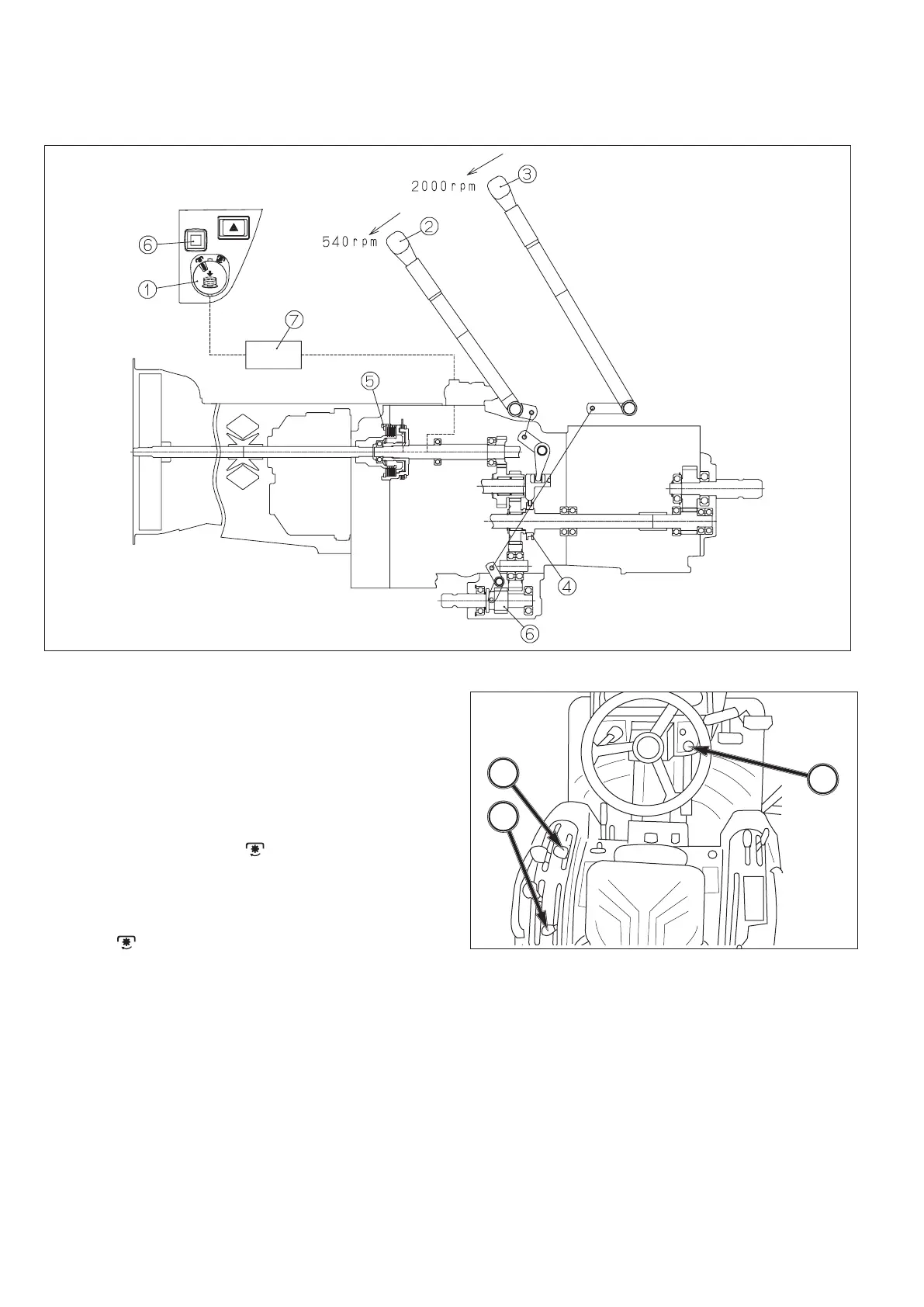

FIGS. 86 & 87: Rear PTO and mid PTO are both con-
trolled by PTO control switch, 1.
Rear PTO selector lever, 2, is used to engage rear PTO
gears inside the transmission housing.
To select a PTO - If the rear PTO is to be used, make
sure PTO control switch is OFF and then pull rear PTO
selector lever, 2, forward to
position (540 min-1) to
engage coupling, 4.
If the mid PTO is to be used, make sure the PTO control
switch is OFF and then push mid PTO selector lever, 3,
forward to position (2000 min-1) to engage gear, 6.
If both PTO’s are to be used, make sure PTO control
switch is OFF and shift both control levers to the engag-
ing positions.
To engage PTO - The PTO switch, 1, must be first be
pushed in and rotated clock wise to actuate hydraulic
clutch, 5, and complete the drive.
To disengage PTO - The PTO control switch, 1, is
pushed to release hydraulic clutch, 5.
ALWAYS move PTO control switch to OFF before shift-
ing a PTO selector lever, 2, or 3.
