ISHIDA Uni-3 Service Manual

Chapter 3 BLOCK DIAGRAMS
UNI-3 Service Manual 3-1
BLOCK DIAGRAMS

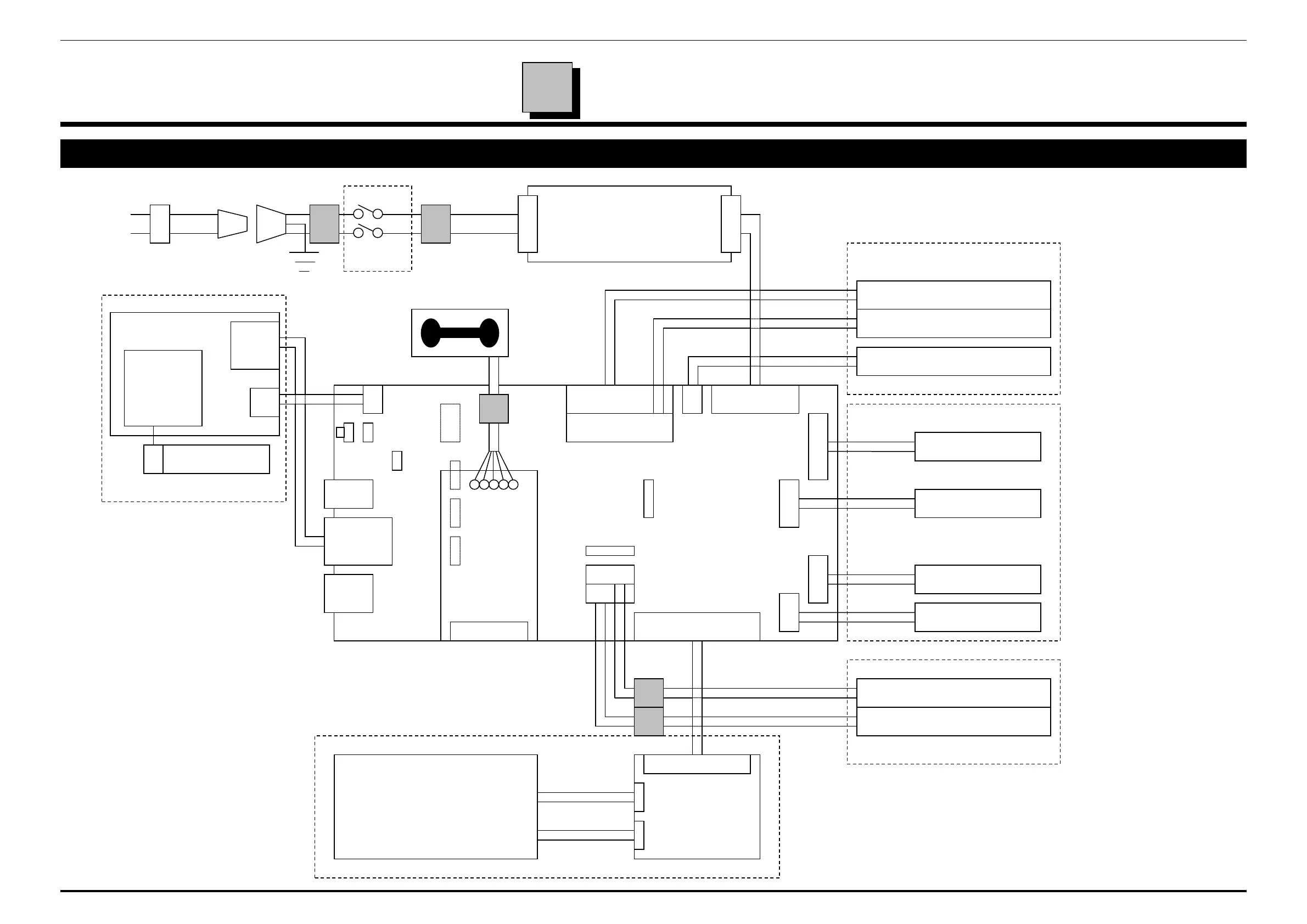

3.1 BLOCK DIAGRAM (BENCH TYPE/ELEVATED TYPE/POLE TYPE)
3
PS-990*
MAIN BOARD
PS-067*
A/D BOARD
SMPS
THERMAL HEAD
STEPPING MOTOR
LABEL SENSOR
BACK LIGHT RESISTER
CUSTOMER L2 DISPLAY
OPERATOR L2 DISPLAY
PS-068*
TACTILE KEY BOARD
(UNI-3 type)
CUSTOMER L1 DISPLAY
OPERATOR L1 DISPLAY
MEMBRANE KEY SHEET
(UNI-3 type)
MAIN SW
POWER CODE
INLET
L2 TYPE DISPLAY
L1 TYPE DISPLAY
LOAD CELL
PRINTER UNIT
KEY UNIT
XJ1
RJ45
XJ2
RJ11-4
XJ25
USB-A
XJ5
XH-2
XJ22
RE-H(3)
XJ7 HIF3FC-20
XJ8 HIF3FC-20
XJ9
VH-2
XJ10 VH-2
XJ11 PHD-28
XJ12
XH-4
XJ16
NH-5
XJ17
NH-4
S1
XJ18 HIF3FC-26
XJ19 PH-6
XJ20 PH-6
XJ21 XH-11 (PS-990*)
CN1 HIF3FC26
CN2 1-520315-6
CN3 520315-8
CN1
VH-5
VH-6
CN2
CN2 11JQ-BT (PS-067*)
PEEL SENSOR
①
②
③
⑥
④
⑤
⑦
⑧
⑨
⑩
⑪
⑫
⑬
⑭
A A
B
C
D
PK-265*
WIRELESS LAN BOARD
ANTENNA
OPTION WIRELESS LAN
XJ1
XH-2
XJ2
RJ45
XJ4 RJ45
WIRELESS
LAN
MODULE
