Chapter 5 MACHINE DISASSEMBLY
5-8 UNI-3 Service Manual
5.2 ELEVATED TYPE
CAUTION: Make sure to unplug the power cord from the wall outlet before starting the disassembly work.

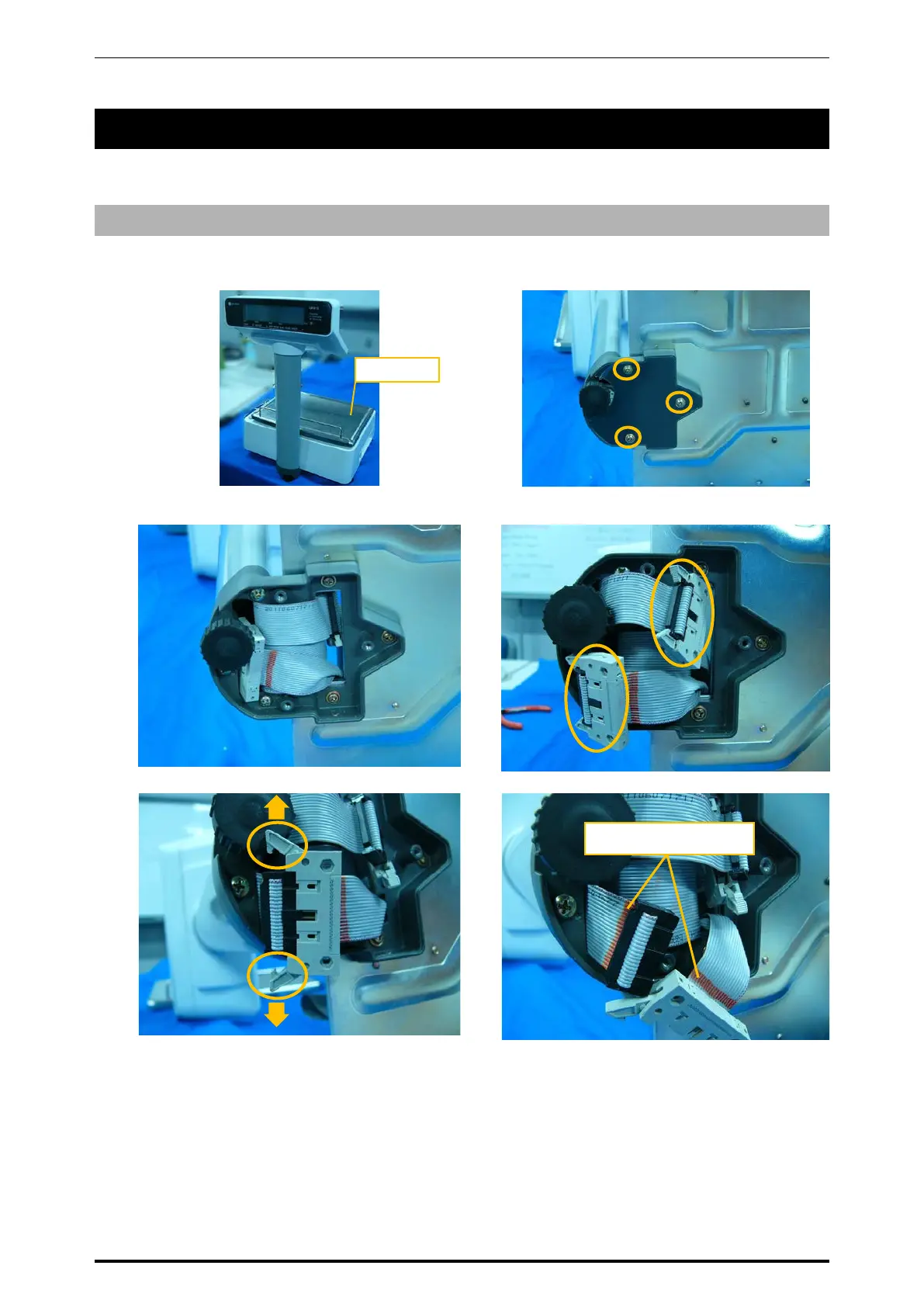

5.2.1 POLE UNIT
1.
Remov
e the platter.
2.
Remove
the three screws.
3.
Detach the cover.
4.
Unplug the two connectors.
Platter
The Operators side
