Chapter 5 MACHINE DISASSEMBLY
UNI-3 Service Manual 5-7

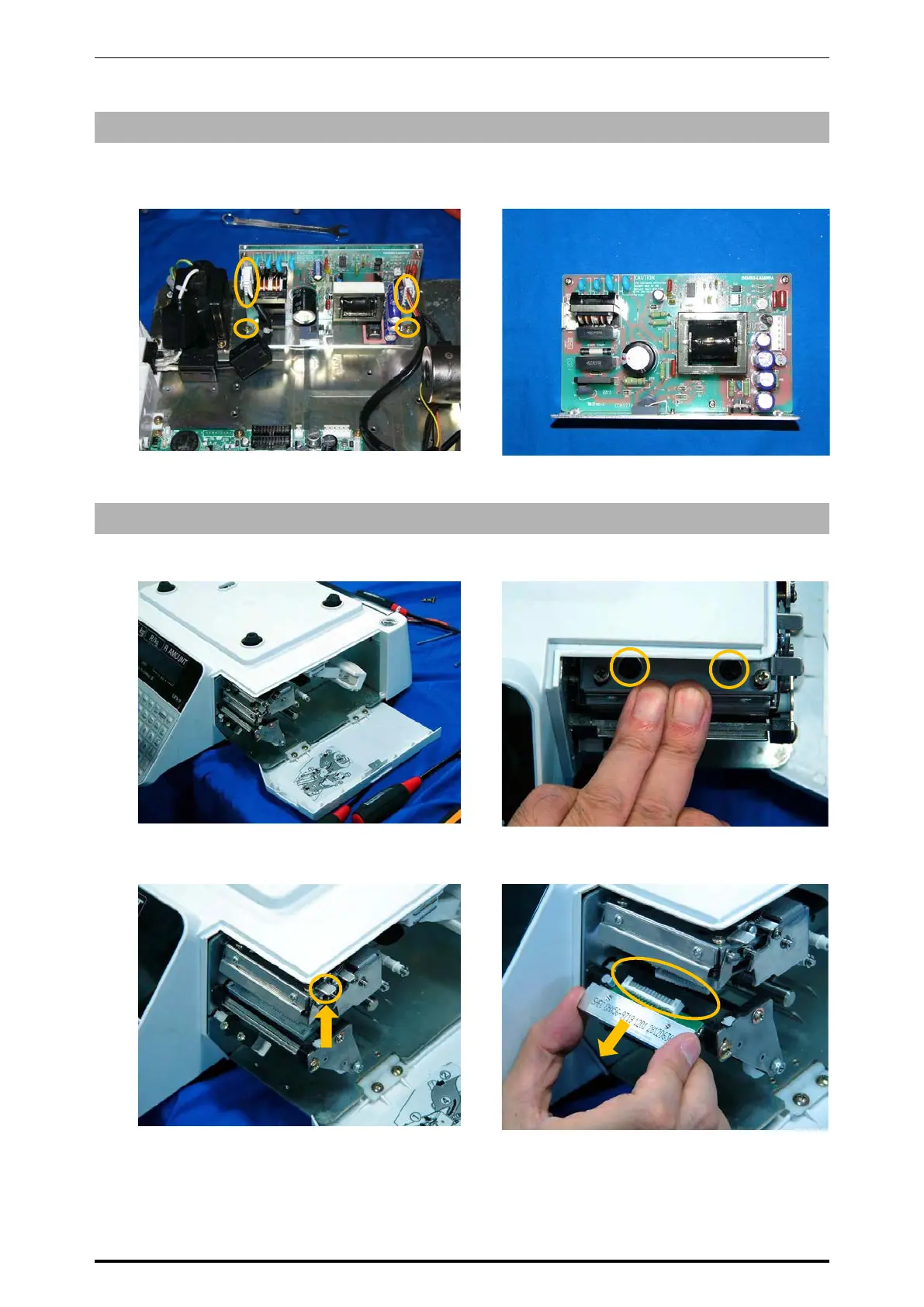

5.1.5 POWER BOARD
1.
Remove
the two screws and unplug the two
connectors.
2.
Remove
the power board.
* Reverse this procedure for assembly.
5.1.6 THERMAL HEAD
1.
Open the side cover and remove the
cassette cover.
2.
While holding the plate, remove the two
screws.
3.
Push up the plate.
4.
Pull out the thermal head and unplug the
connector
. Set the original position for
assembly.
* Reverse this procedure for assembly.
