Chapter 5 MACHINE DISASSEMBLY
UNI-3 Service Manual 5-5

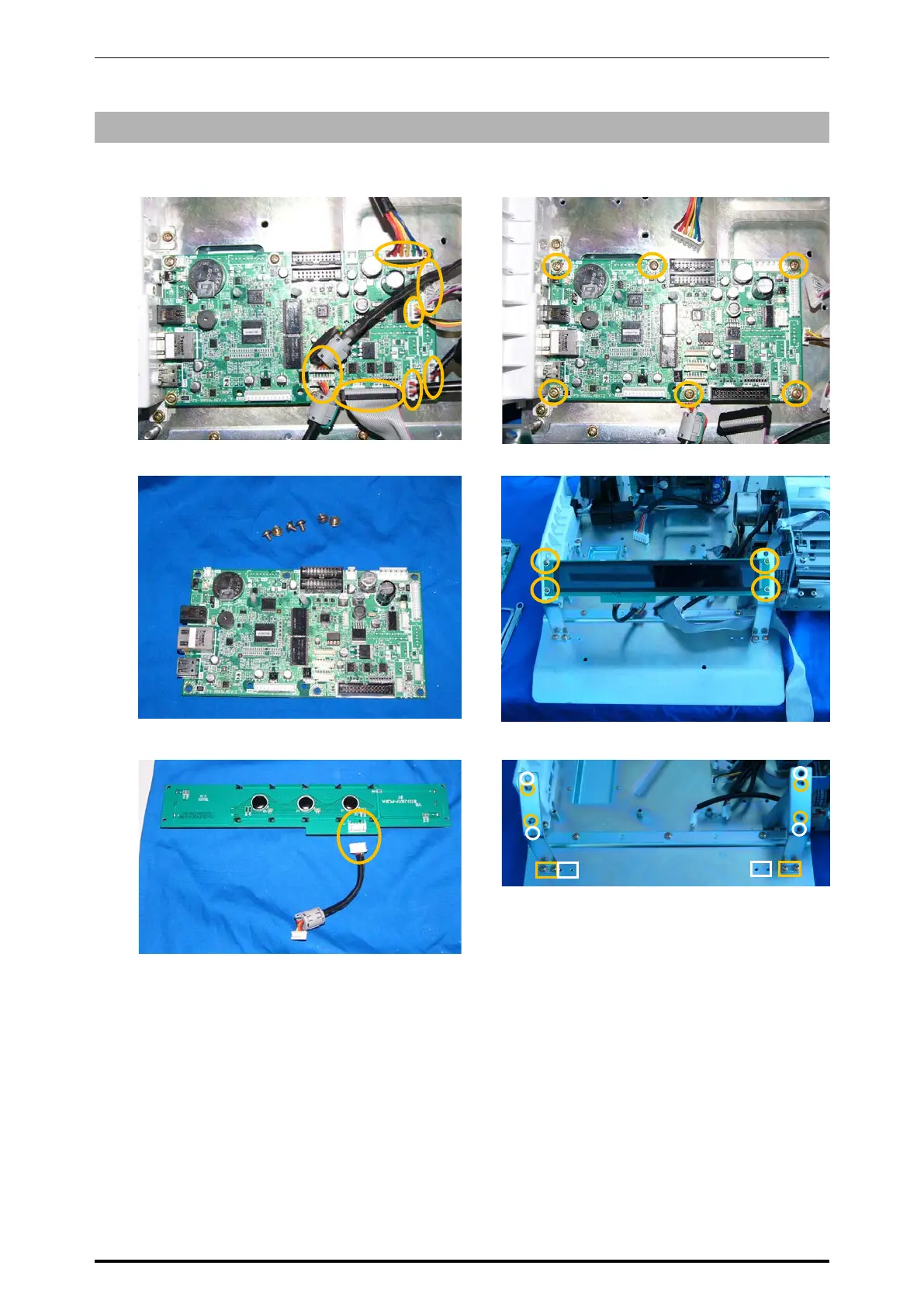

5.1.3 MAIN BOARD
1.
Unplug the eight connectors
.
2.
Remove
the six screws.
3.
Remove
the main board.
4.
Remove
the four screws.
5.
Unplug the connector.
Mounting position of the
L1 display (orange)
Mounting position of the L2 display (white)
Reverse this procedure for assembly.
