Chapter 5 MACHINE DISASSEMBLY
UNI-3 Service Manual 5-3

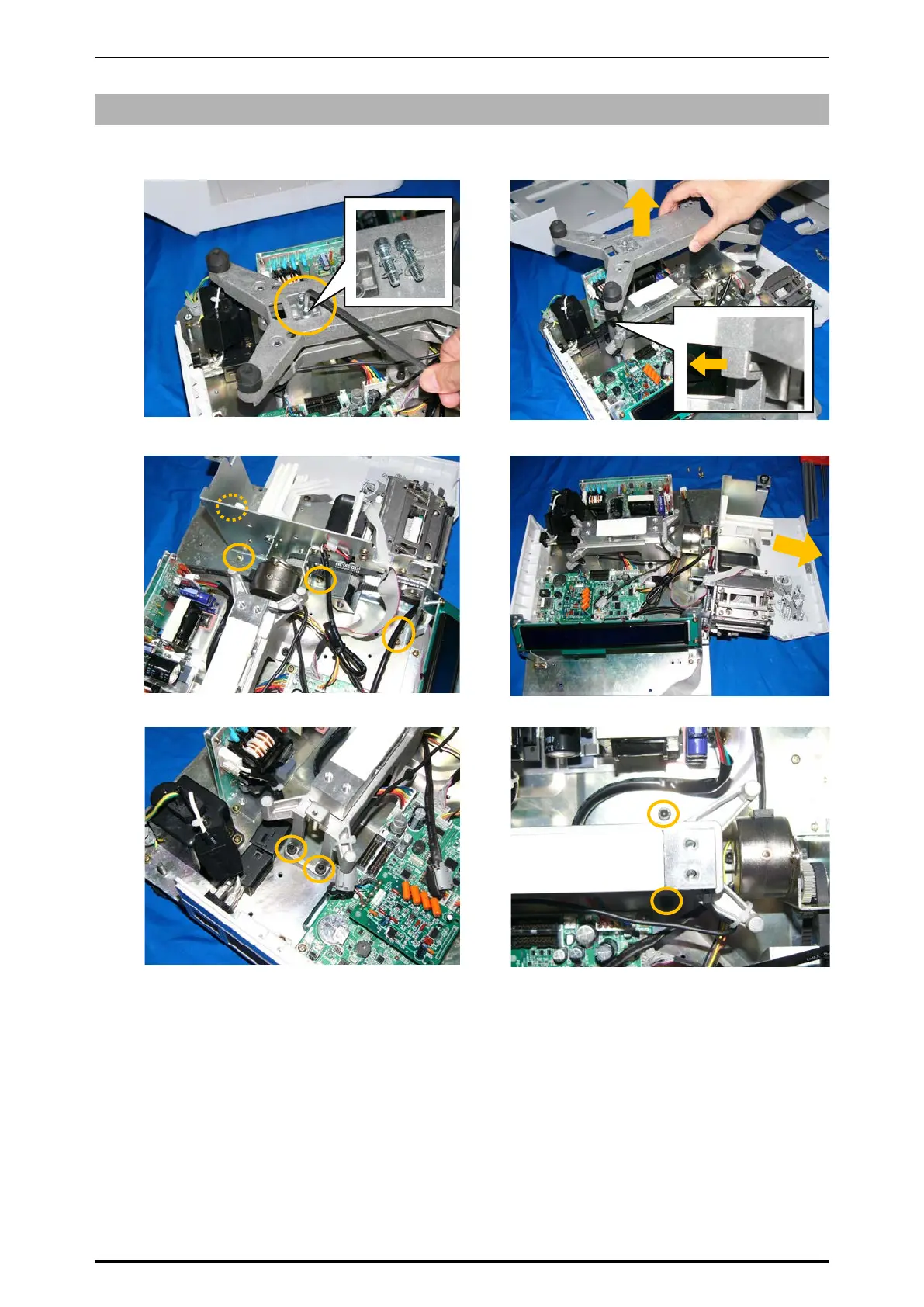

5.1.2 SUPPORT AND LOAD CELL
1.
Remove the two hex screws (5 mm).
2.
Remove the support.
3.
Remove the five screws.
4.
Slide the cassette unit.
5.
Remove the five hex screws (4 mm).
