Chapter 5 MACHINE DISASSEMBLY
5-2 UNI-3 Service Manual

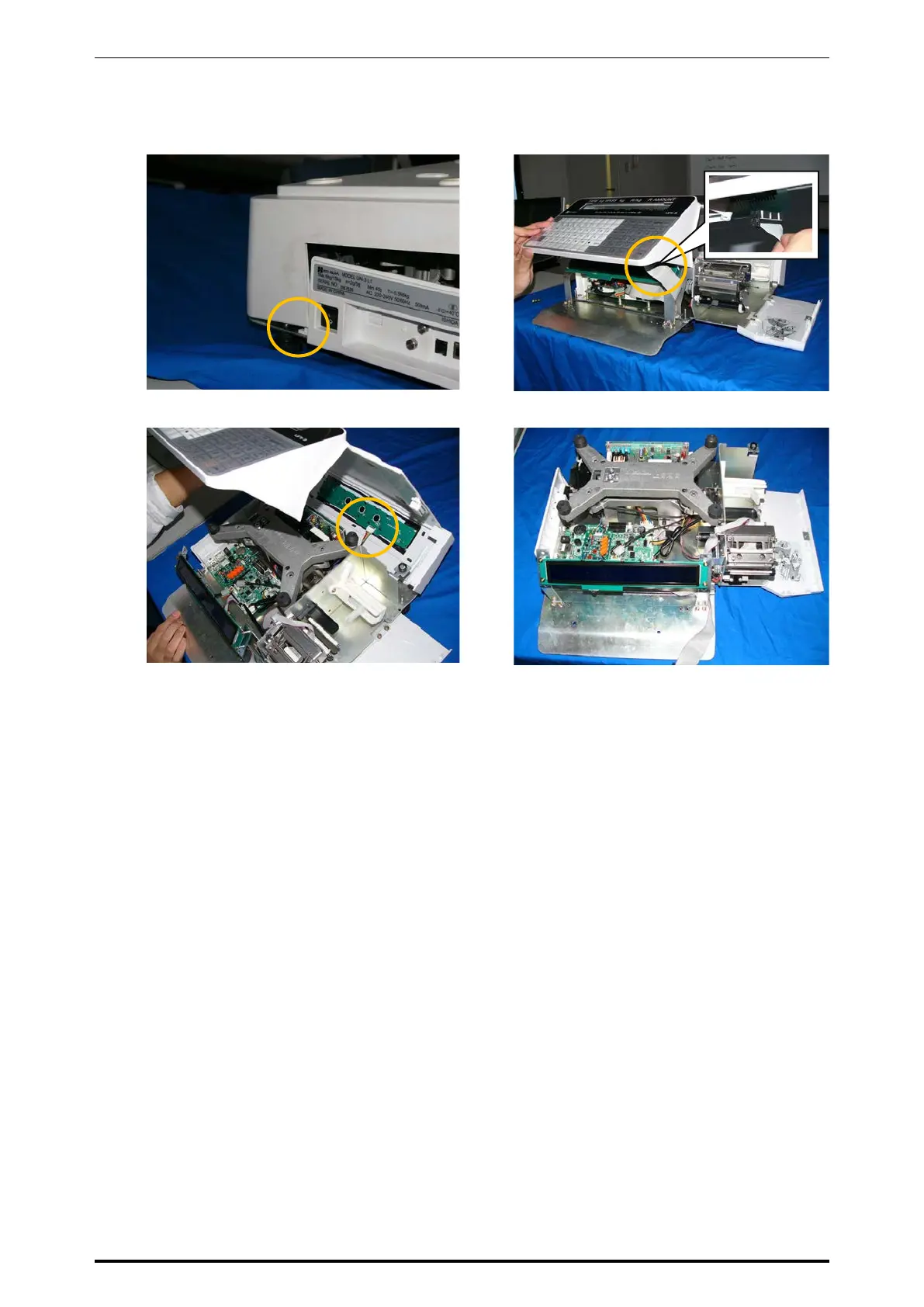

5.
Displace the cover upward to disengage
the hook from the cover.
6.
Unplug the connector
.
7.
Unplug the connector.
8.
Remove the case cover.
* Reverse this procedure for assembly.
