ISHIDA Uni-3 Service Manual

Chapter 5 MACHINE DISASSEMBLY
5-6 UNI-3 Service Manual

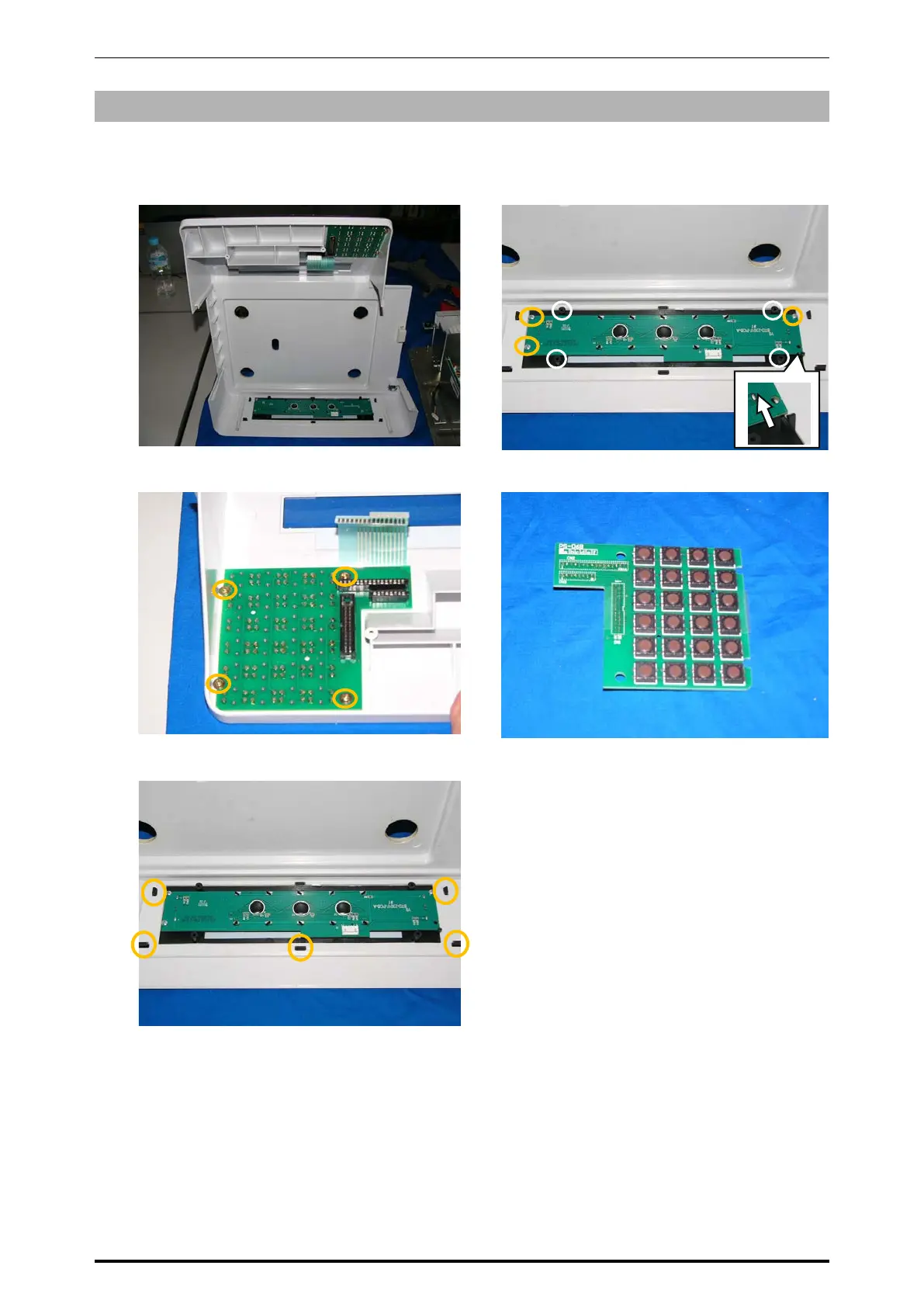

5.1.4 CASE COVER BOARD
1.
Remove the two boards (customer side and
operator side)
.
2.
Remove the
three screws (L1, orange).
Remove the
four screws (L2, white).
3.
Remove the four screws and unplug the two
flexible cables
4.
Remove the keypad board.
When r
eplacing the customer side panel,
remove the five tabs.
* Reverse this procedure for assembly.
