DAILY MCA2014 4x4 ‒ BODYBUILDER INSTRUCTIONS
ELECTRONIC SUB-SYSTEMS
5.2 BODYBUILDER CONNECTORS
– Printed 603.95.994 – 1 Ed. - Base 05/2015
5.2 BODYBUILDER CONNECTORS
Note
Given the multiplicity of vehicular variants and of associated wiring, the present chapter only provides information concerning the
basic version of the electrical system; please contact the IVECO Assistance Service should you require more specific information.
The vehicle's electrical system contains specific connectors for connecting the bodybuilder installations; access to these allows the
system's functional integrity and validity of the warranty to be preserved.
The standard connectors are the 61071A and 72075A, interfaced with the cab dashboard cable, which are accessible after remov-
ing the panel of the passenger side glove box (see Figure 2).
▶ Any taking of signals from the vehicles to the oufitting must be performed using suitable diodes,
relays and bridles. Direct connection to connectors 61071A and 72075A is strictly forbidden,
otherwise the warranty shall become invalid.
230823

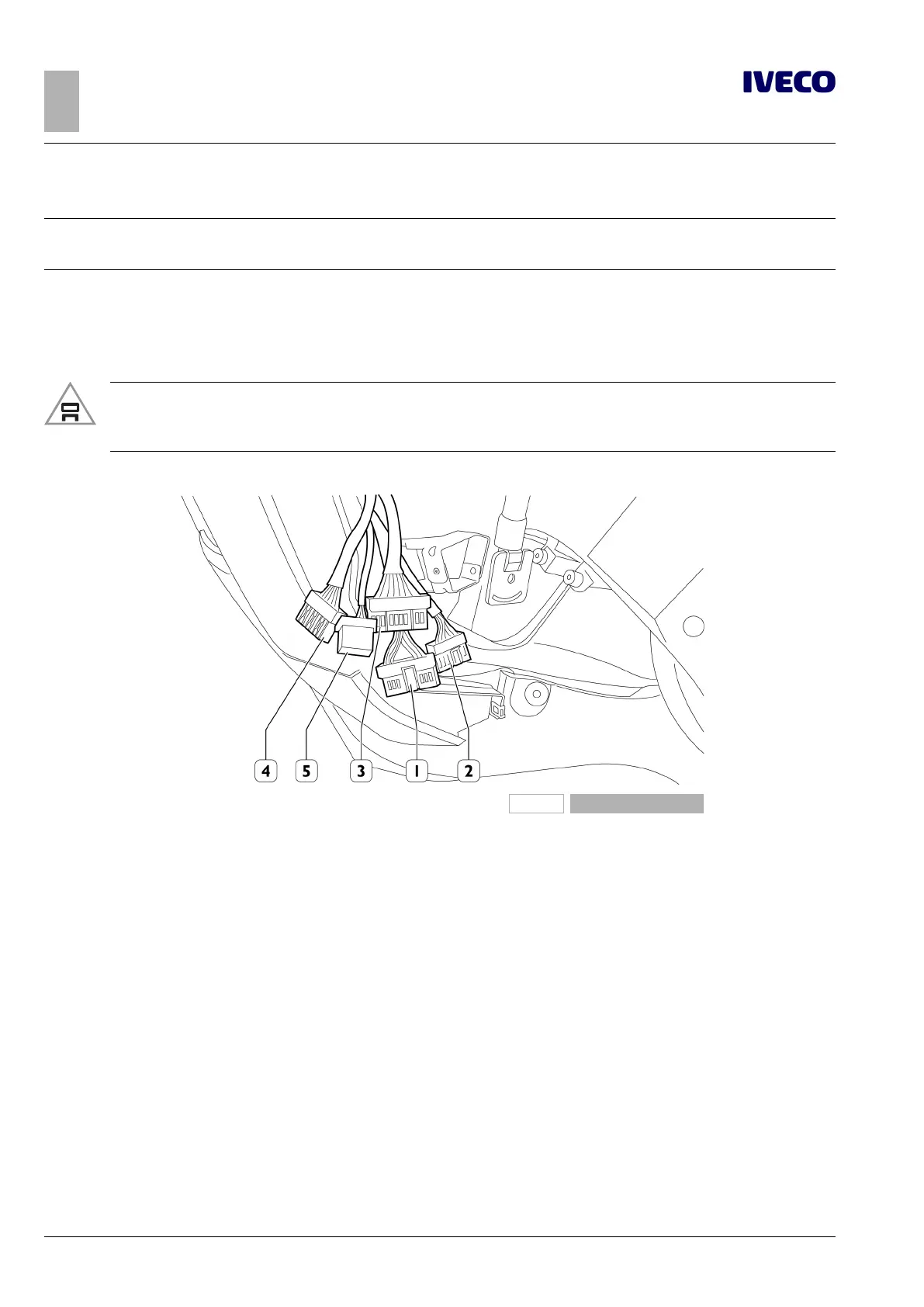

Figure 2
1. Bodybuilder Connector 61071A
2. Bodybuilder Connector 72075A
3. Connector EM 61071B
4. Connector EM 72075B
5. Connector EM 72071
In the event in which the vehicle is ready for the optional installation of the Expansion Module, the electrical system in the cab is
also equipped with connectors 61071B, 72071, 72075B, to which another connector ST13 is added inside the engine compart-
ment, on the left side (see Figure 3).
The description of the function of these connectors is contained in the specific manual EM 603.95.826 (currently being updated at
the time of publication of the present document).
