DAILY MCA2014 4x4 ‒ BODYBUILDER INSTRUCTIONS
ELECTRONIC SUB-SYSTEMS
5.4 ELECTRICAL SYSTEM: CURRENT INTERVENTIONS AND DRAWS
– Printed 603.95.994 – 1 Ed. - Base 05/2015
Drawing current

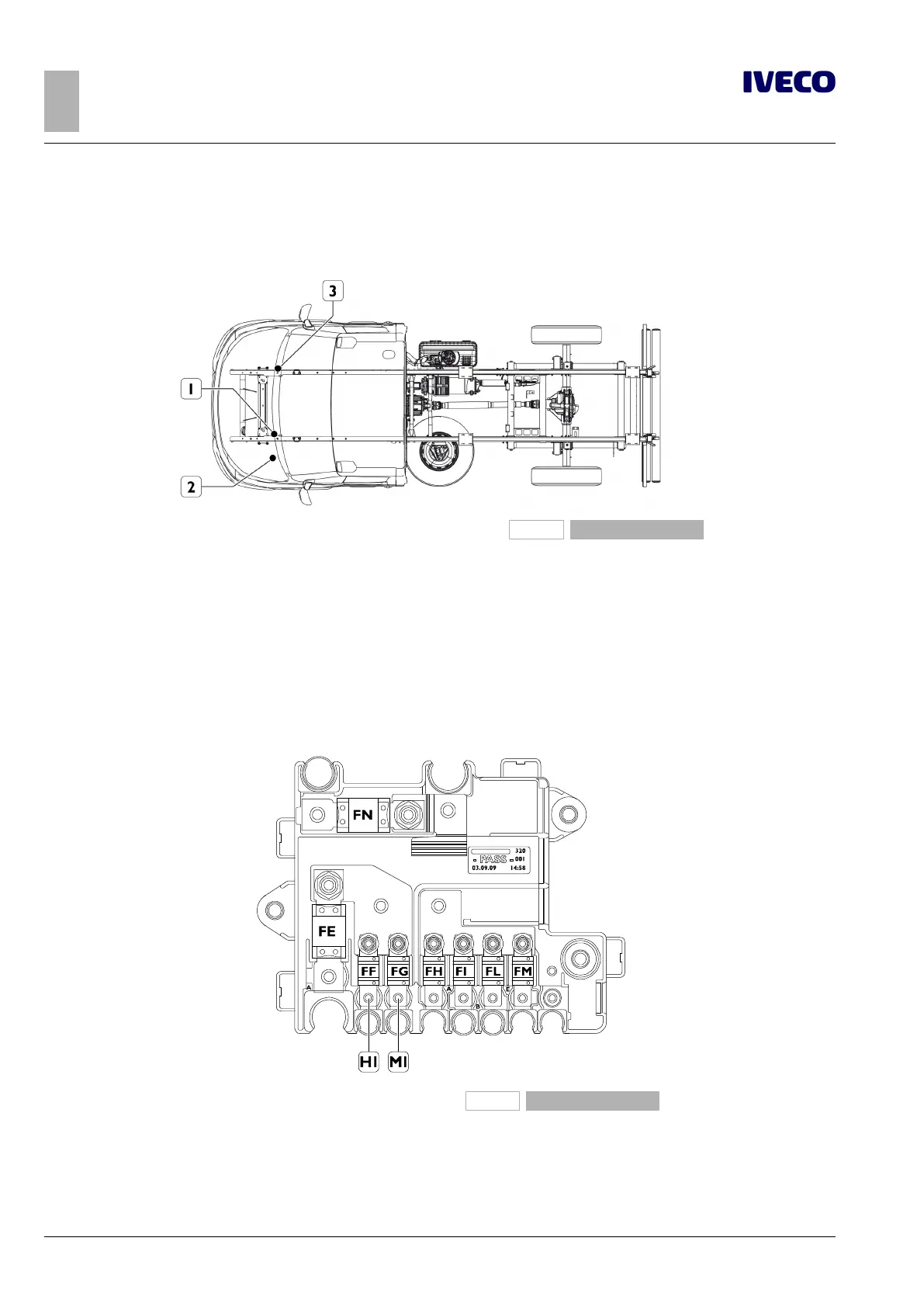

Information about the points where you can take samples of available current and directions to be followed are below.
228307
Figure 36
1. CBA2
2. Cable path between cab and engine compartment
3. Body builders Connector (inside cab)
Current sample from the CBA2 control unit in the engine compartment
There are two fuses (FF and FG) installed in CBA2, reserved for the body builders; the terminals (HI) and (MI) downstream of
these fuses are the only two points reserved and authorised for sampling currents.
209810
Figure 37
HI. Current take off point protected by Body builders fuse FF MI. Current take off point protected by Body builders fuse FG
The fuses for body builders supplied with the original equipment have a capacity of 30 A each.
