Iveco DAILY 4x4 Body Builder Instructions

46
DAILY MCA2014 4x4 ‒ BODYBUILDER INSTRUCTIONS
ELECTRONIC SUB-SYSTEMS
5.4 ELECTRICAL SYSTEM: CURRENT INTERVENTIONS AND DRAWS
– Printed 603.95.994 – 1 Ed. - Base 05/2015
228308

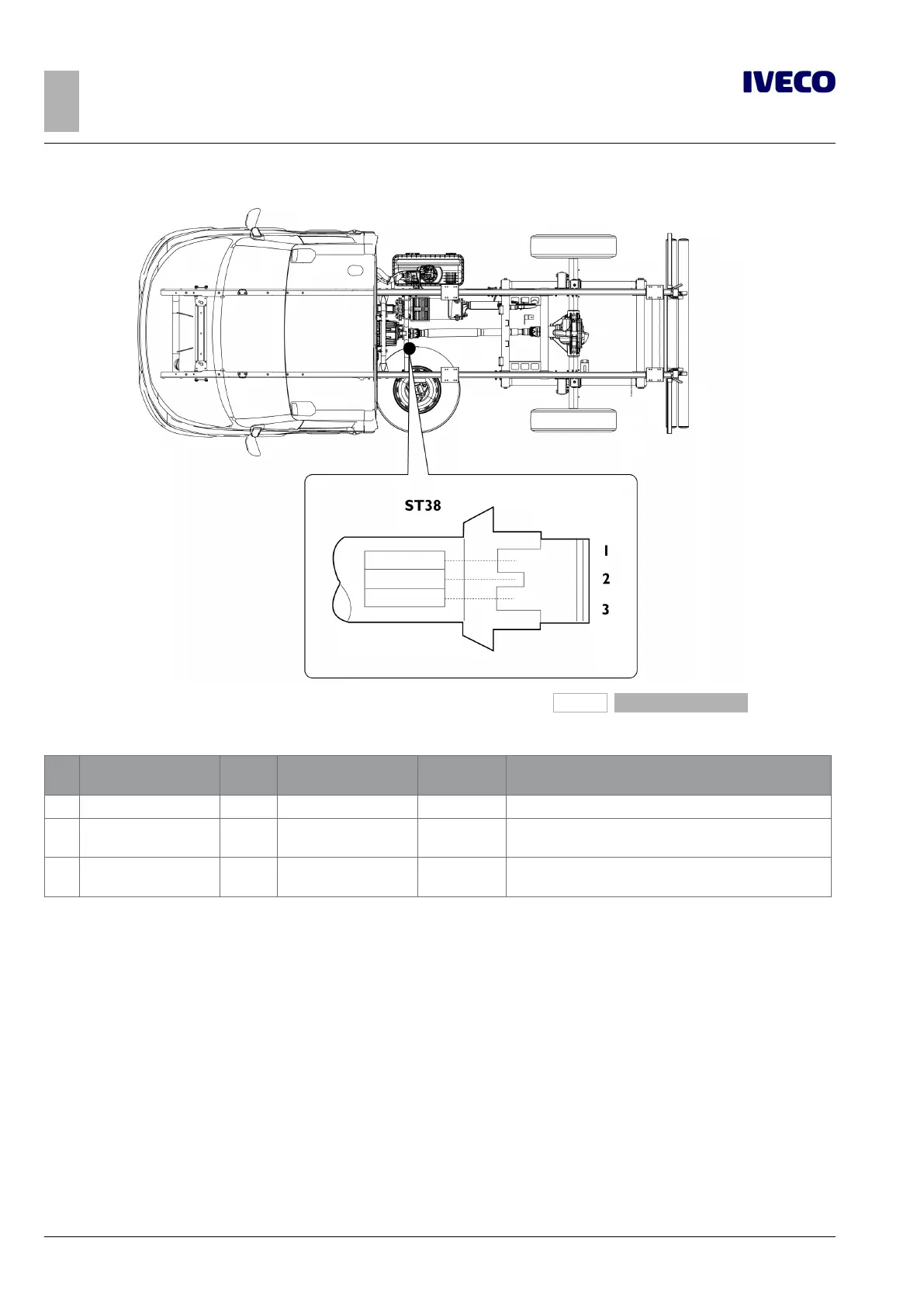

Figure 45
Table 5.13 - Connector ST38 for Side Marker Lamps
Pin Description
Cable
code
Max. current [A]
Connected
to
Remarks
1 Ground 0000 10 ST43/1 Ground for left and right side clearance lights
2
Vehicle left side clearance
lights
3390 10 ST43/2
+12 V = vehicle left side clearance lights on
no signal = vehicle left side clearance lights off
3
Vehicle right side
clearance lights
3390 10 ST43/2
+12 V = vehicle right side clearance lights on
no signal = vehicle right side clearance lights off
Installation of side markers requires the intervention of the IVECO Service Network in order to enable the Body Computer.
Reverse gear signal
For safety reasons, certain vehicle versions must emit an external reversing warning sound which is activated when the vehicle is
reversing.
This safety device may be originally requested as opt. 7638.
In the event of a subsequent or alternative realization, its application is recommended inside the rear cross member of the number
plate holder, as in Figure 46.
