DAILY MCA2014 4x4 ‒ BODYBUILDER INSTRUCTIONS
APPLICATIONS OF SUPERSTRUCTURES
3.5 TRACTOR FOR SEMI-TRAILER
19
– Printed 603.95.994 – 1 Ed. - Base 05/2015
228303

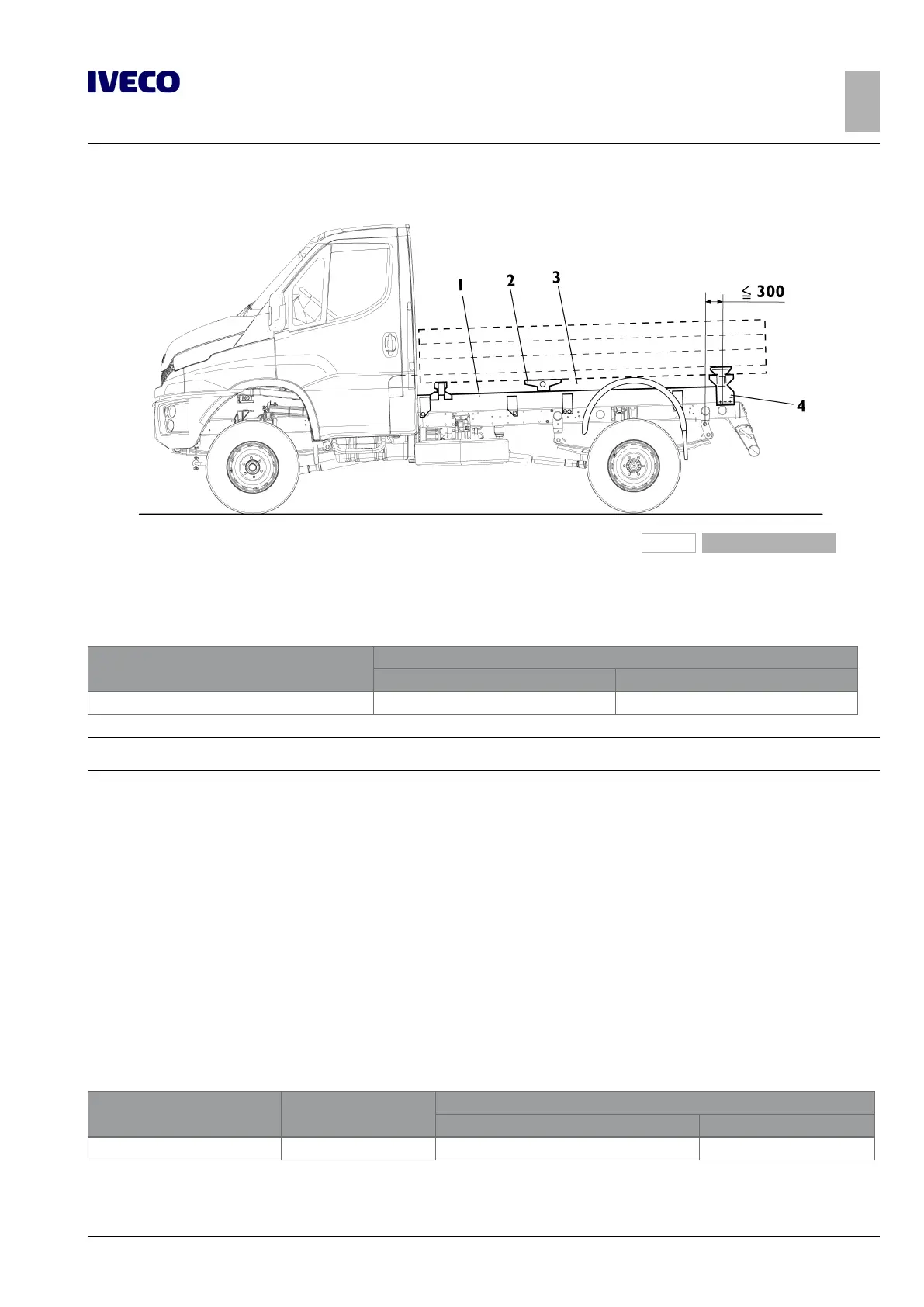

Figure 15
1. Counter chassis
2. Brackets
3. Plates
4. Retainer with hinge
Table 3.5
Models
Minimum reinforcing profile
Section modulus W
X
[cm
3
] Dimensions [mm]
35S15/17, 55S15/17 36 100x60x6
Note
For the dimensions of the counter chassis sections see Table 3.2.
3.5 TRACTOR FOR SEMI-TRAILER
Not provided.
3.6 TRANSPORT OF INSEPARABLE MATERIALS (TRAILER TRUCKS)
Not provided.
3.7 INSTALLATION OF TANKS AND LOOSE MATERIAL CONTAINERS
a) Installation with a counter chassis
The installation of tanks and containers is carried out, as a rule, using a suitable counter chassis.
The approximate dimensions of the section to be used for the counter chassis are shown in Table 3.6.
Table 3.6
Models Wheelbase [mm]
Minimum reinforcing profile
Section modulus W
X
[cm
3
] Dimensions [mm]
35S15/17, 55S15/17 3050, 3400 21 80x60x5
