22
DAILY MCA2014 4x4 ‒ BODYBUILDER INSTRUCTIONS
ELECTRONIC SUB-SYSTEMS
5.4 ELECTRICAL SYSTEM: CURRENT INTERVENTIONS AND DRAWS
– Printed 603.95.994 – 1 Ed. - Base 05/2015
Ground points
In general, original vehicle ground connections are not to be modified; in cases where these connections must be moved or new
connections added, use the holes present on the chassis to the extent possible, taking care to:
● mechanically remove - either by filing and/or with a suitable chemical based solution - the paint on both the chassis and ter-
minal side, thus creating a contact surface free of indentations and edges;
● paint the area between the terminal and metal surface with a suitable high conductivity paint
● connect to earth within 5 minutes after application of the paint.
As regards the signal related ground connections (e.g. sensors or low-absorption devices), do not use the standardized points Un-
der no circumstances use standardized points for engine ground connection and chassis ground connection.
Additional signal grounds must be positioned at different points from the power ground.
191316

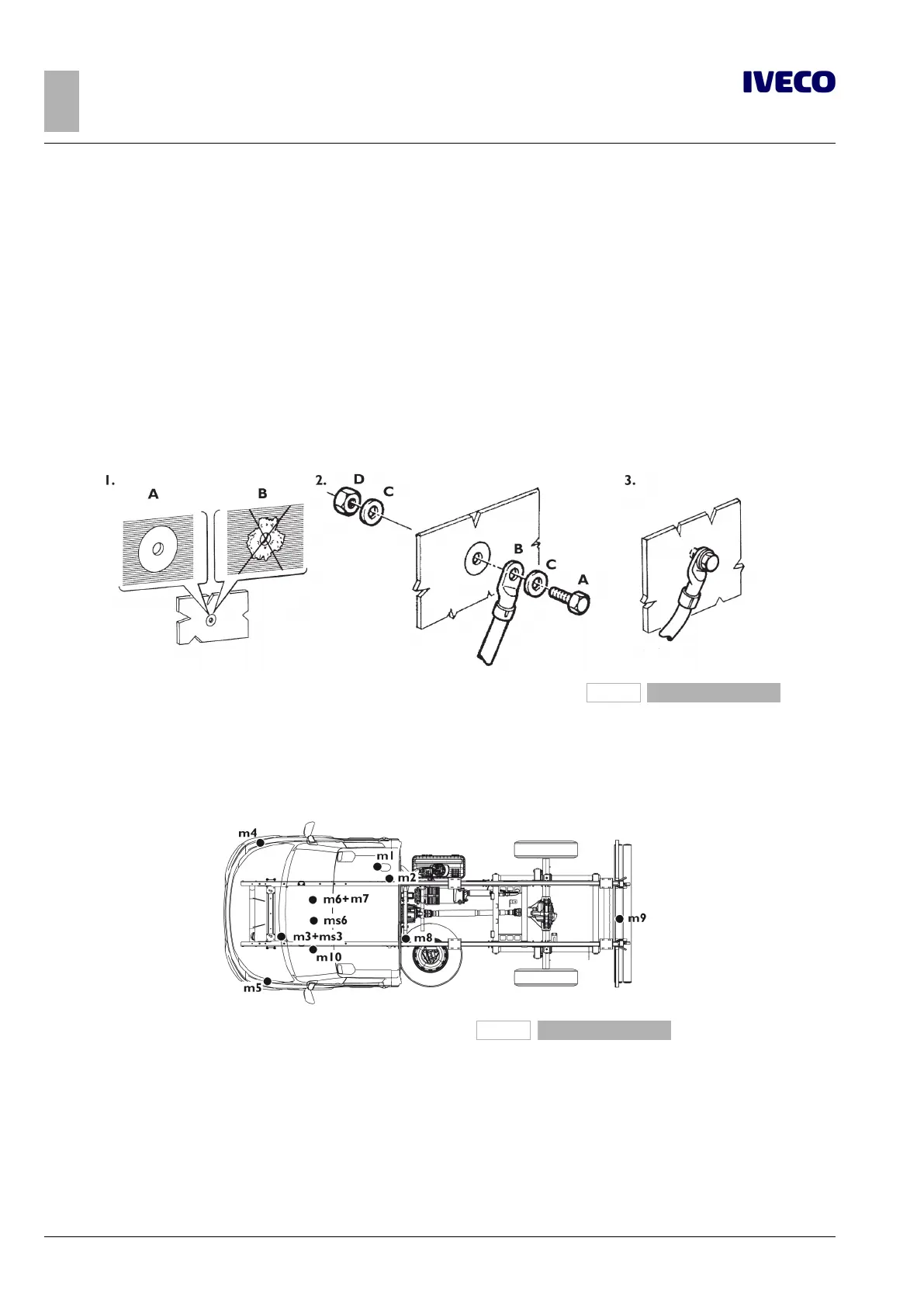

Figure 15
1. Ground connections: (A) connection is correct; (B) connec-
tion is incorrect
2. Correct cable fastening to the ground point using: (A)
screw, (B) cable terminal, (C) washer, (D) nut
3. Cable connected to ground
228306
Figure 16
Position of ground points on vehicle
m1.
Ground for battery/body
m2.
Ground for body/chassis
m3/ms3.
Engine compartment ground under servobrake
m4.
Ground for engine compartment behind the front right
headlight
m5.
Ground for engine compartment behind the front left
headlight
m6/ms6.
Cab interior ground, central section
m7.
Cab interior ground, central section
m8.
Ground on chassis behind the cab
m9. Ground on left side rear cross member
m10.
Ground on chassis
