4.2 POWER TAKE-OFF ON THE GEARBOX
7
– Printed 603.95.994 – 1 Ed. - Base 05/2015
4.2 POWER TAKE-OFF ON THE GEARBOX
Drive may be taken from the layshaft via flanges or fittings located to the rear side or lower part of the gearbox.
Table 4.1 shows available torque levels and the ratios between output rpm and engine rpm for the different types of IVECO op-
tional gearbox/PTO combinations.
IVECO must authorize high torque take-offs for sporadic use, according to the type of use.
The PTO must normally be used with the vehicle at a standstill and must be engaged and released with the clutch disengaged so as
to avoid excessive stress on synchronisers.
When the PTO is used with the vehicle in motion, no gearshift must be carried out.

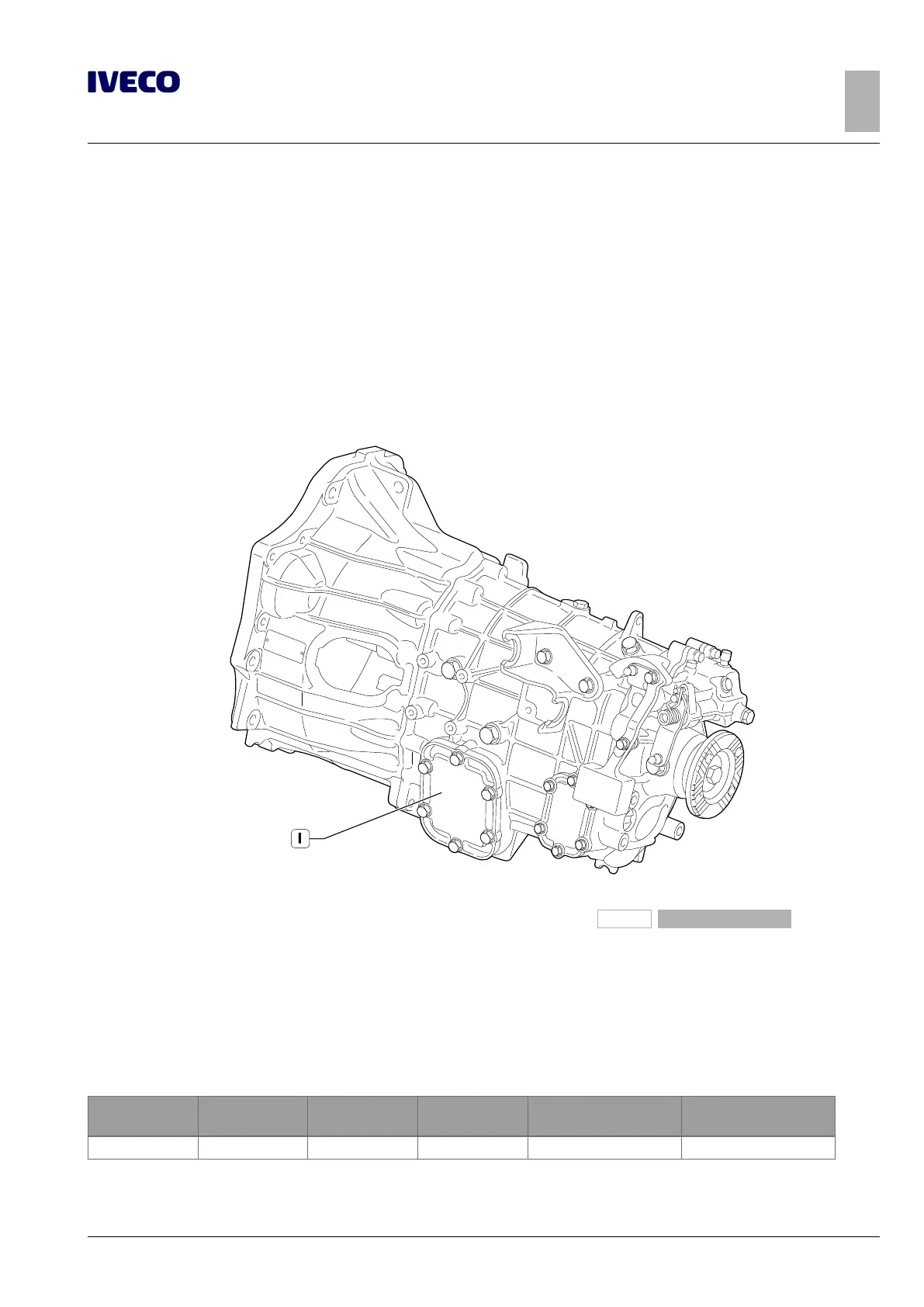

166057
Figure 3
1. Cover for power take-off pre-installation
Data of power take-off on the gearbox
The installation of a P.T.O. after the production of the vehicle requires some intervention on the electrical system. Therefore, be-
fore proceeding, please carefully read Chapter 4.6 .
Table 4.1
Gearbox Position
(1)
Output
(1)
Direction of
rotation
(2)
Maximum torque C
max
[Nm]
(3)
PTO ratio
2840.6 Left side Rear Clockwise 180 1,04
(1)
With respect to the direction of travel
