DAILY MCA2014 4x4 ‒ BODYBUILDER INSTRUCTIONS
GENERAL INFORMATION
1.15 DIMENSIONS AND GROUND
11
– Printed 603.95.994 – 1 Ed. - Base 05/2015
222674

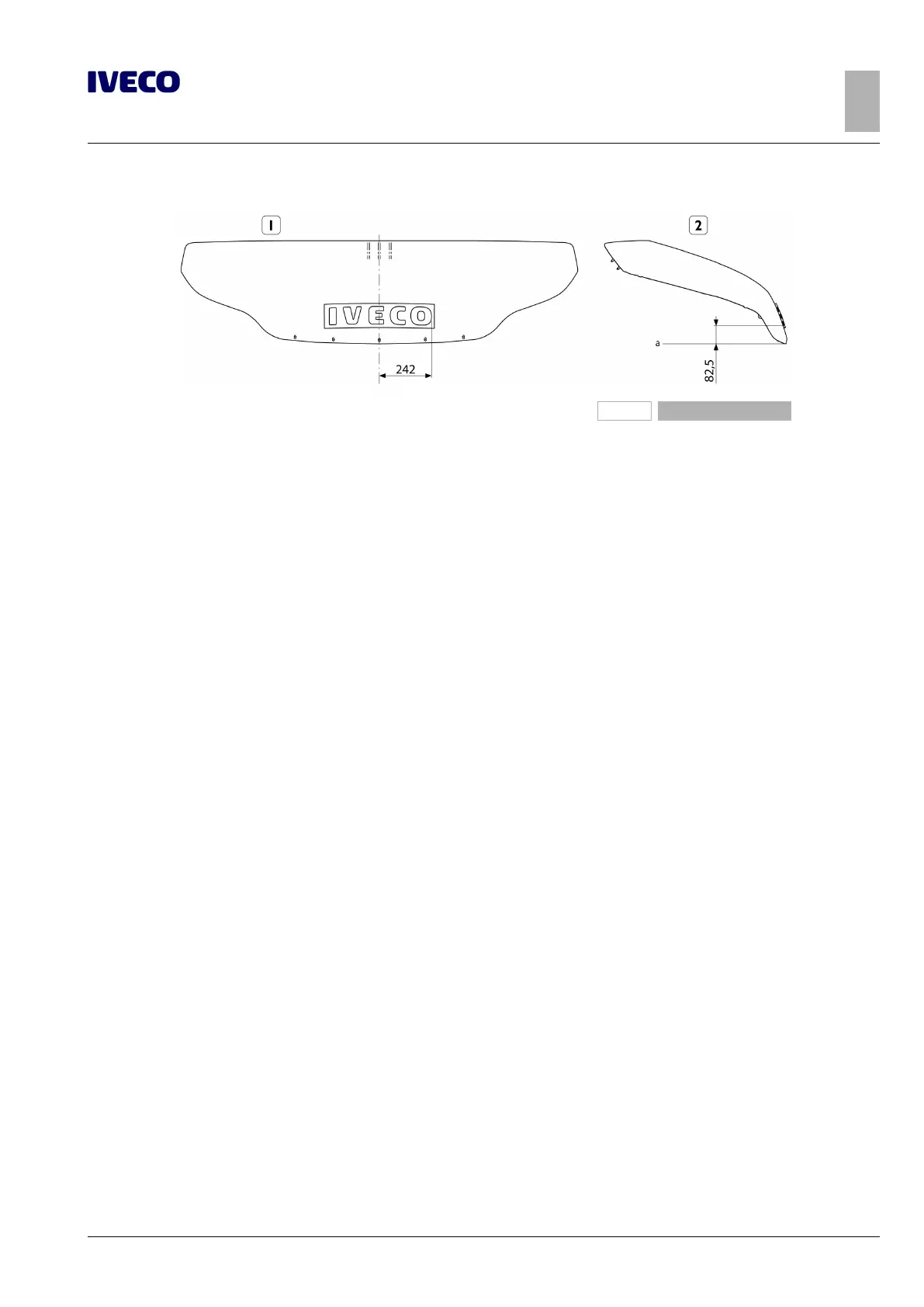

Figure 2
1. Front view
2. Side view
a. Bonnet lower edge
For the actual measurements and for the realization of a possible template, please consult the design 5801620982.
IVECO reserves the right to withdraw its tradenames and logos if the above requirements are not met.
1.15 DIMENSIONS AND GROUND
General information
The dimensions and masses of vehicles allowed on the axles are shown in the drawings, the technical descriptions and, more gener-
ally, on the documents on the official IVECO website. Defects refer to vehicles in their standard versions; the use of special equip-
ment may lead to changes on the masses and their distribution on the axles.
Weighing of the chassis
It should be noted that variations are possible on the masses of the order of 5%.
For this reason, before carrying out the fitting, it is a good idea to determine the mass of the vehicle cab and its distribution on the
axles.
Vehicle adaptability
The body length limits mainly depend on:
● wheelbase length
● distribution of mass on the axles
● maximum permitted width.
The maximum permitted width on the Daily MCA is 2550 mm.
Rear-view mirrors
The rear visibility angles imposed by legislation may be respected by choosing, depending on the width of the vehicle version, the
most appropriate type of rear-view mirror from the three models with arms of varying width, present in the catalogue (opt. 8643,
8644, 76129).
