4.3 POWER TAKE-OFF FROM TRANSFER BOX
9
– Printed 603.95.994 – 1 Ed. - Base 05/2015
(1)
The maximum output torque values refer to an engine speed of 1900 rpm with fifth gear. For different engine speeds or gears, make
sure that the maximum declared output torque and power values are not exceeded. The power take-off on the transfer box may be used
with a stationary or moving vehicle.
Direct application of pumps on the transfer box PTO
When the application of pumps or other electrical utilizer devices is performed directly on the power take-off (without intermedi-
ate shafts) then, after having checked that the pump dimensions allow safety margins with the chassis and the reduction unit (cross
members, propeller shaft, etc.), it is advisable to check that the static and dynamic torques exerted by the mass of the pump and of
the power take-off are compatible with the wall strength of the transfer box.
Furthermore, the value of the additional masses must be verified with regard to the inertial effects in order to avoid generating
resonance conditions within the field of engine operation.
▶ For continuous uses of the power take-off, check that the oil temperature of the reduction unit
does not exceed 110 °C and that the engine coolant temperature does not exceed 100 °C.

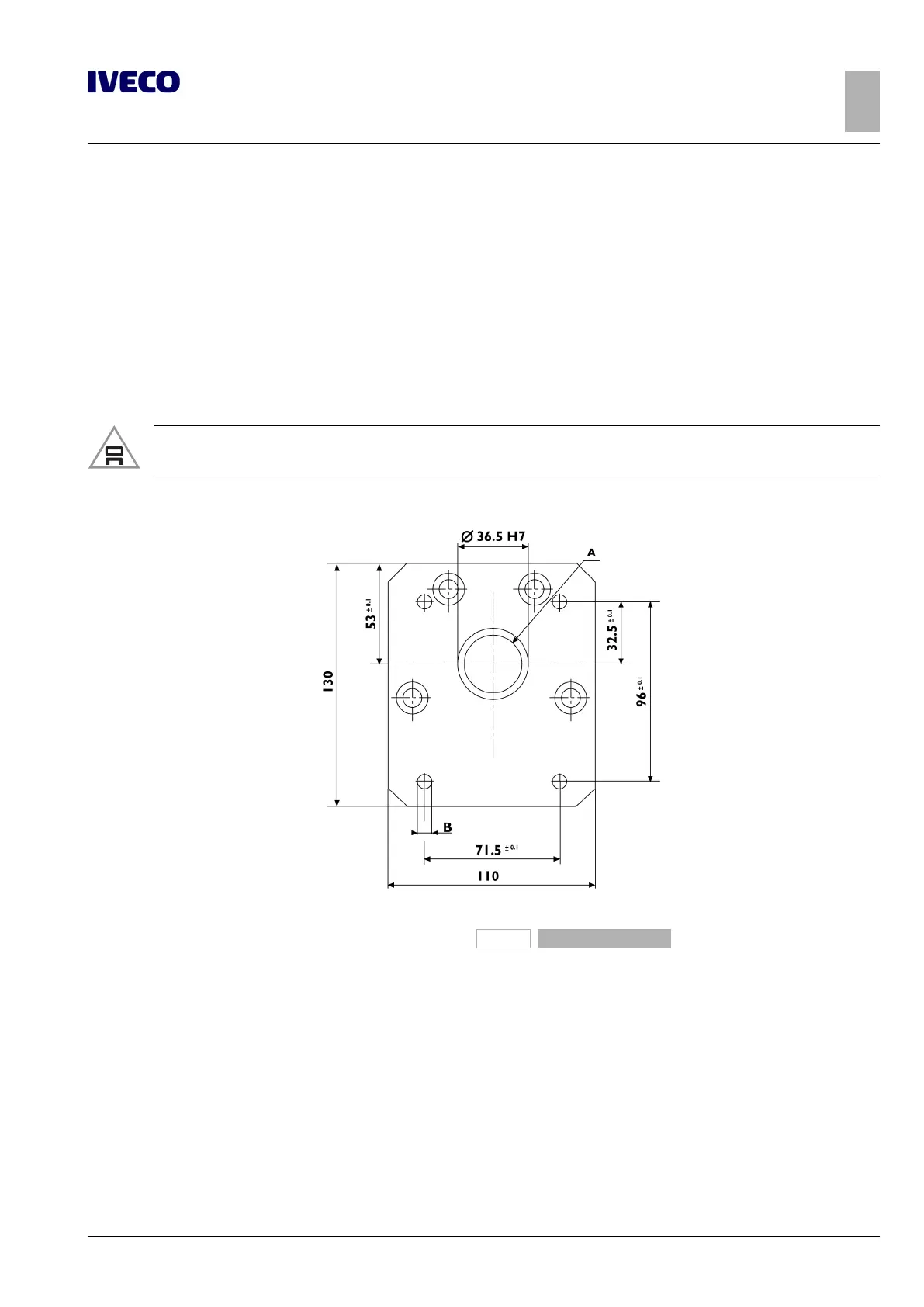

Flange type - Assembly 2
227317
Figure 4
A. Female grooved profile DIN 5482 A35x31 B. 4 holes M8x20
